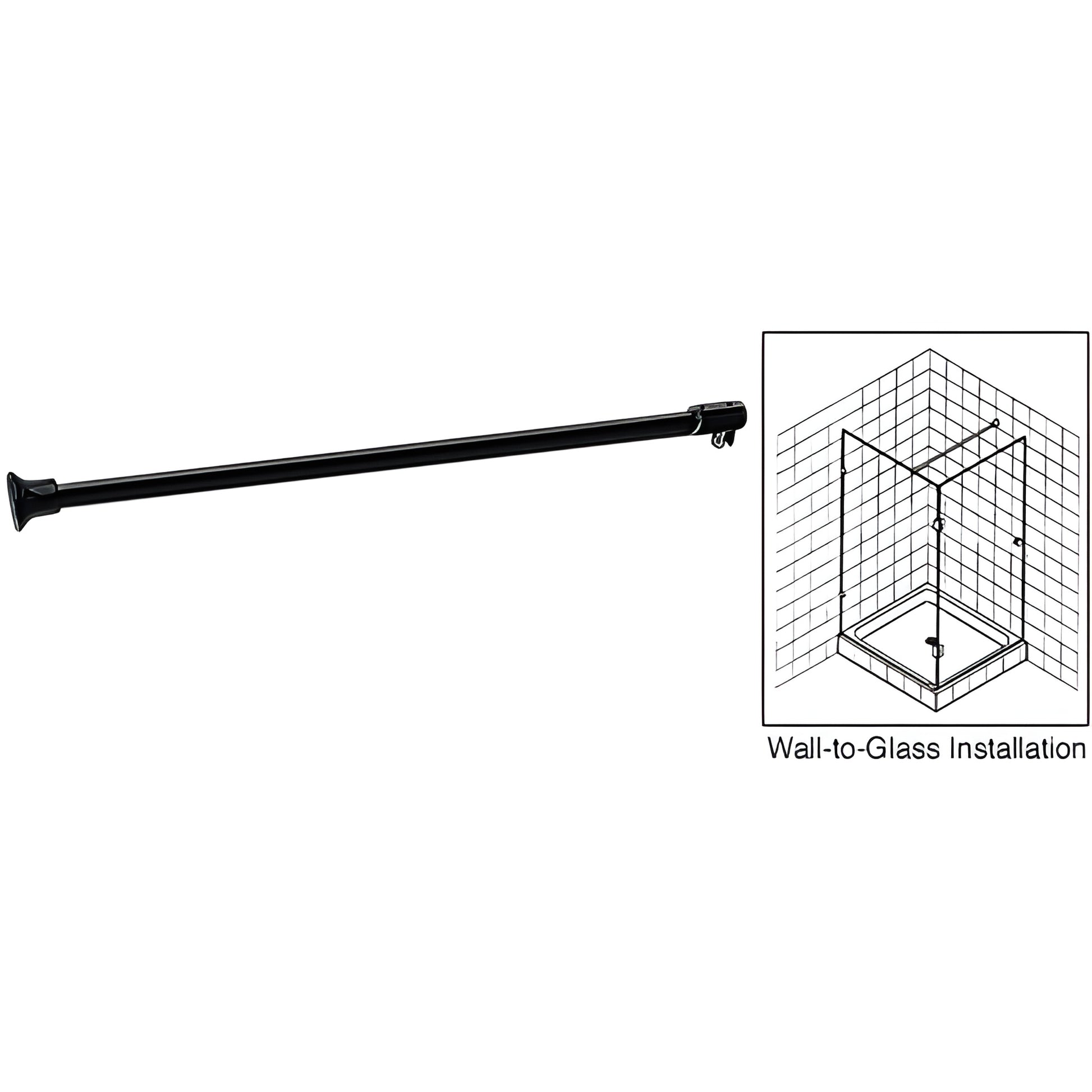

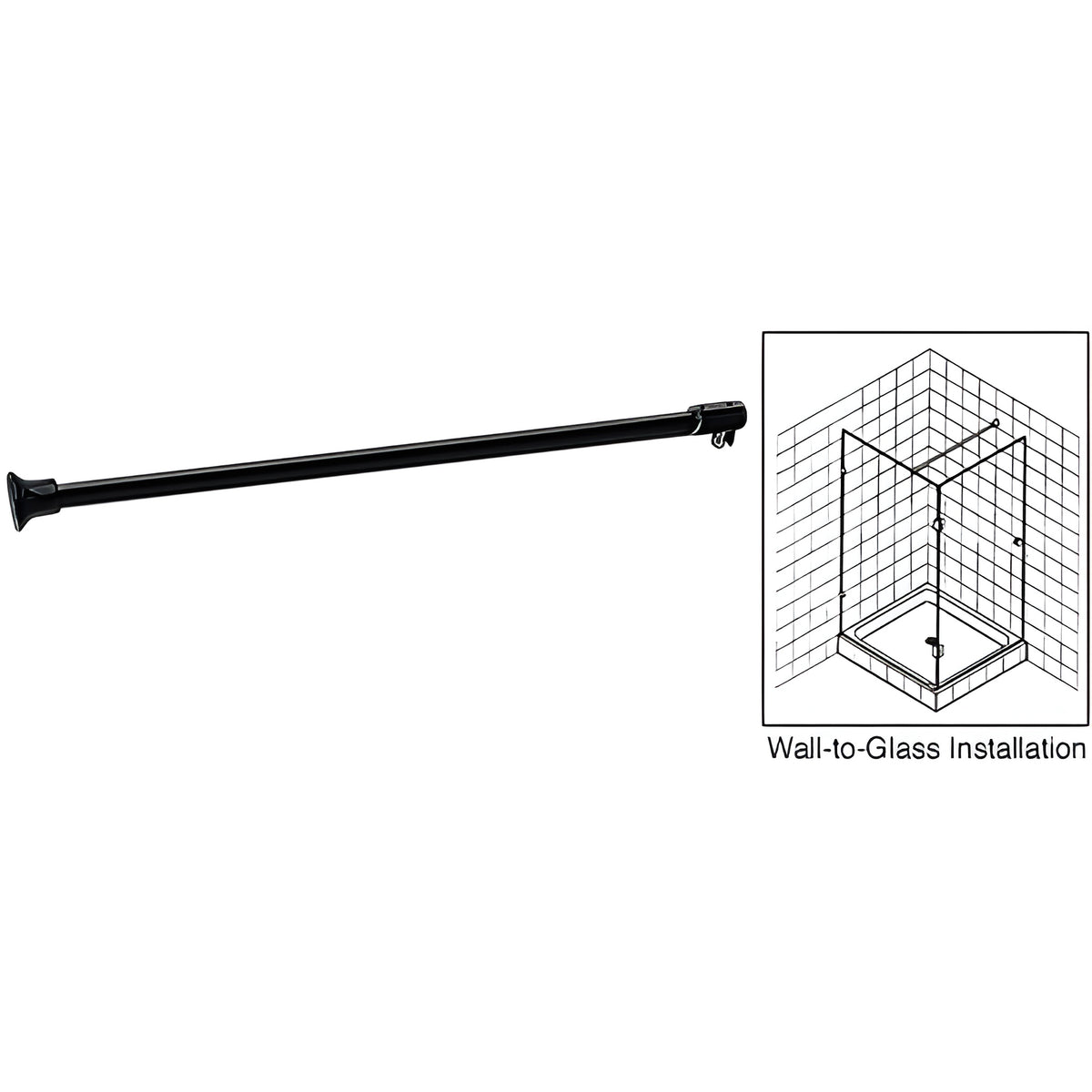

CRL Black Wall-to-Glass Support Bar for Frameless Shower 3/8-1/2 in Glass

• May be used as an alternative to CRL header kits to secure fixed panels and provide safety
• Designed for use with monolithic tempered glass
• Wall-to-glass and glass-to-glass models available
• Simply cut to size—no hole drilling required
• 51" (1.3 m) options available

These CRL Fixed Panel Support Bars (SKU: SUP10BL) stabilize fixed glass panels in frameless shower enclosures and other installations where the glass does not extend to the ceiling. The Wall-to-Glass model features a bell-shaped clamp on the wall side and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass. The Glass-to-Glass model uses solid brass end caps with swiveling U-shaped receptacles at both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars fit 1/4" to 1/2" (6–12 mm) thick glass and are offered in finishes to match hinges, knobs, and pull handles. No holes or cut-outs are required in the glass—ideal for no-drill frameless glass shower support and safety reinforcement.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar, solid brass fittings
Bar Lengths: 39" (1 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware



Order SUP10BL today to add a
