CRL Satin Brass Wall-to-Glass Support Bar for 3/8-1/2 in Glass

• Alternative to CRL header kits for securing fixed glass panels and improving shower safety
• Use with monolithic tempered glass
• Wall-to-glass and glass-to-glass models available
• Cut-to-size installation — no glass hole drilling required
• 51" (1.3 m) and 39" (1 m) length options

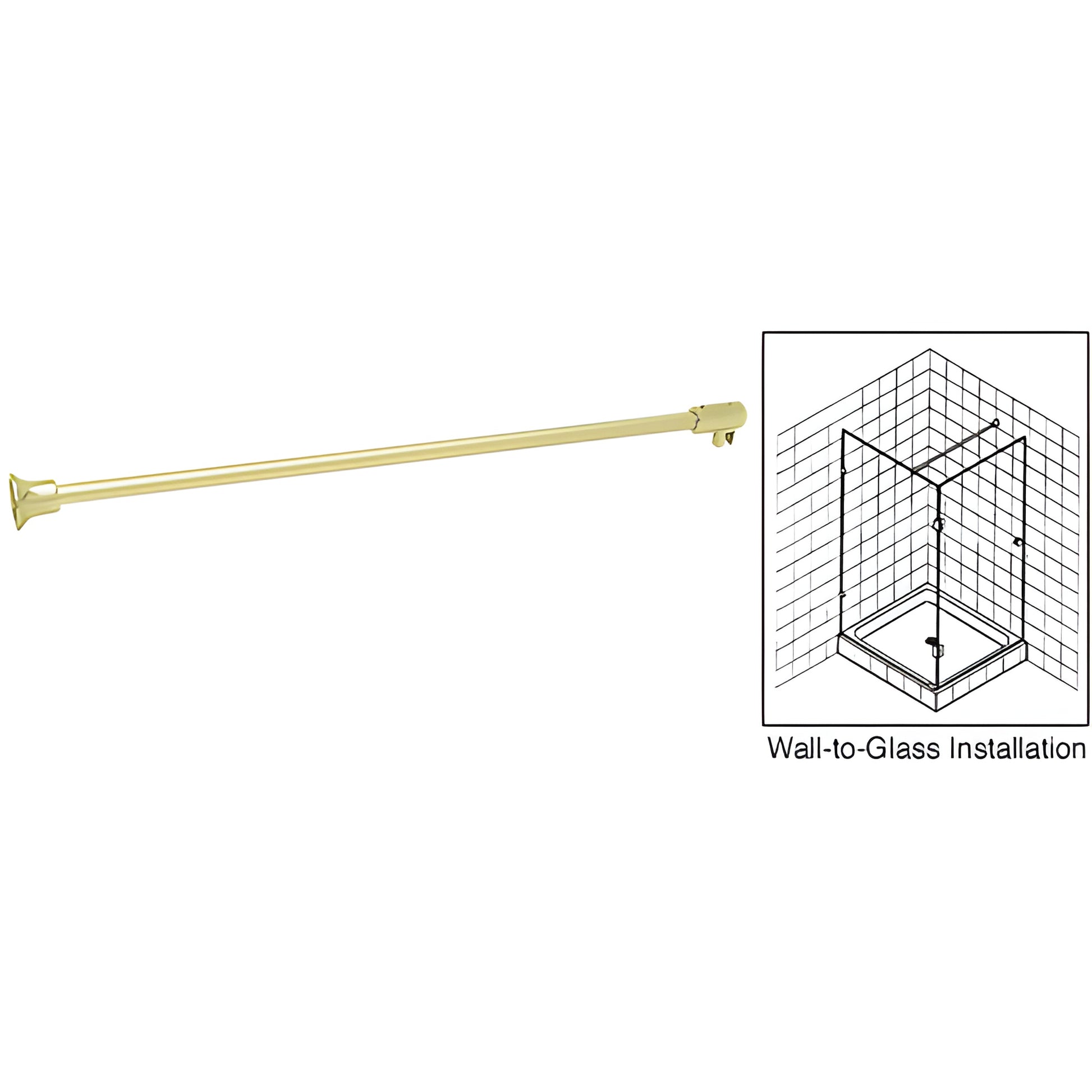

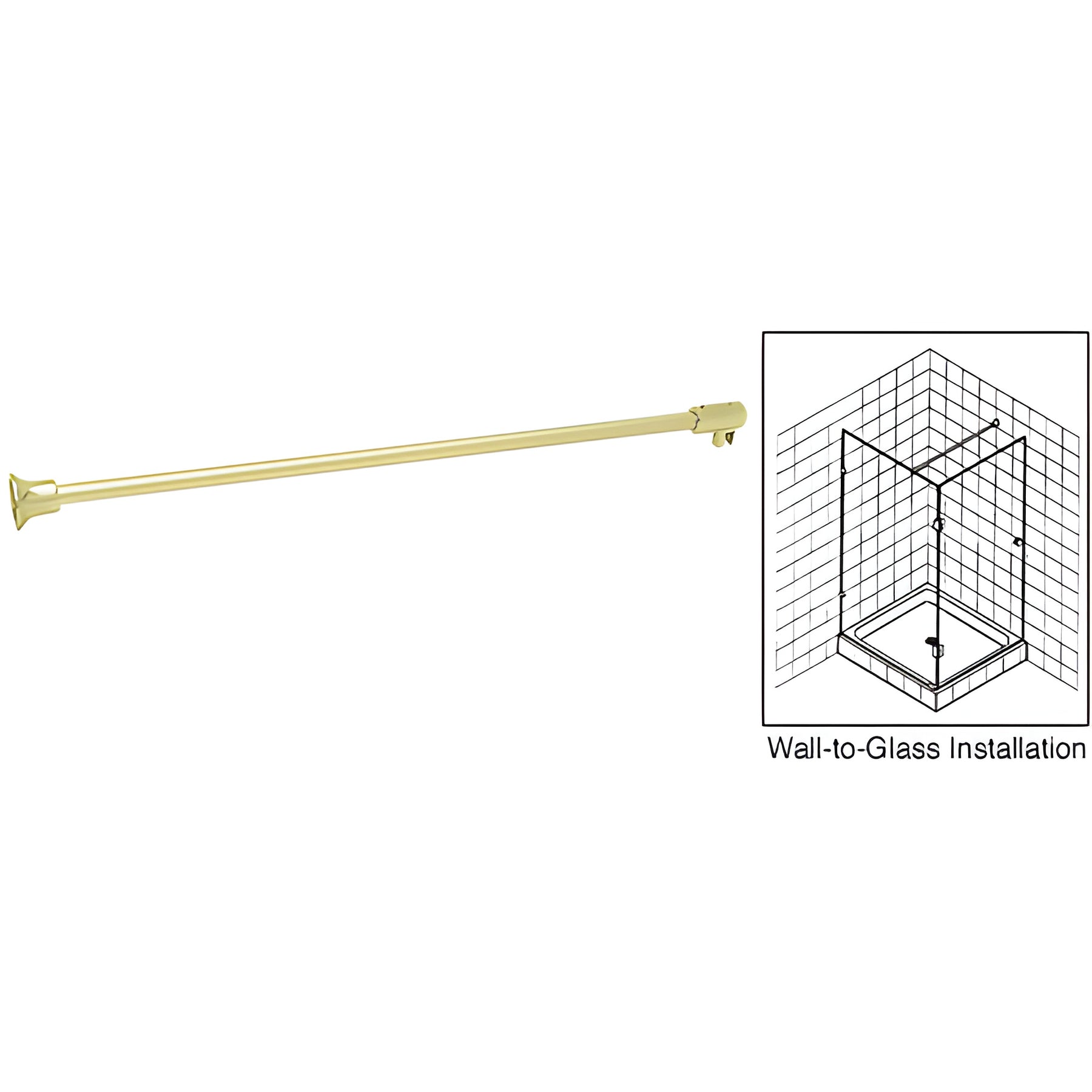

These CRL Fixed Panel Support Bars (SKU: SUP10SB) stabilize fixed panels in frameless and semi-frameless glass enclosures that do not extend to the ceiling. The wall-to-glass model features a bell-shaped wall clamp and a solid brass end cap with a swiveling U-shaped receptacle to hold the fixed glass panel. The glass-to-glass model uses solid brass end caps with swiveling U-shaped receptacles on both ends for securing adjacent fixed panels. Nylon-tipped set screws hold glass securely and prevent glass-to-metal contact. Bars fit 1/4" to 1/2" (6–12 mm) tempered glass and are available in finishes to match hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar with solid brass fittings
Bar Lengths: 39" (1 m); 51" (1.3 m) option available
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware

Brass Finish Advisory:

Perfect for frameless glass shower reinforcements and fixed-panel safety supports — order SKU SUP10SB or contact us for custom lengths and finishes.
