CRL Polished Chrome Wall-to-Glass Shower Support Bar 3/8–1/2"

• Alternative to CRL header kits for securing fixed glass panels
• Use with monolithic tempered glass
• Available in wall-to-glass and glass-to-glass models
• Cut-to-size design for custom shower and enclosure configurations
• No hole drilling or glass cut-outs required
• Also available in 51" (1.3 m) length

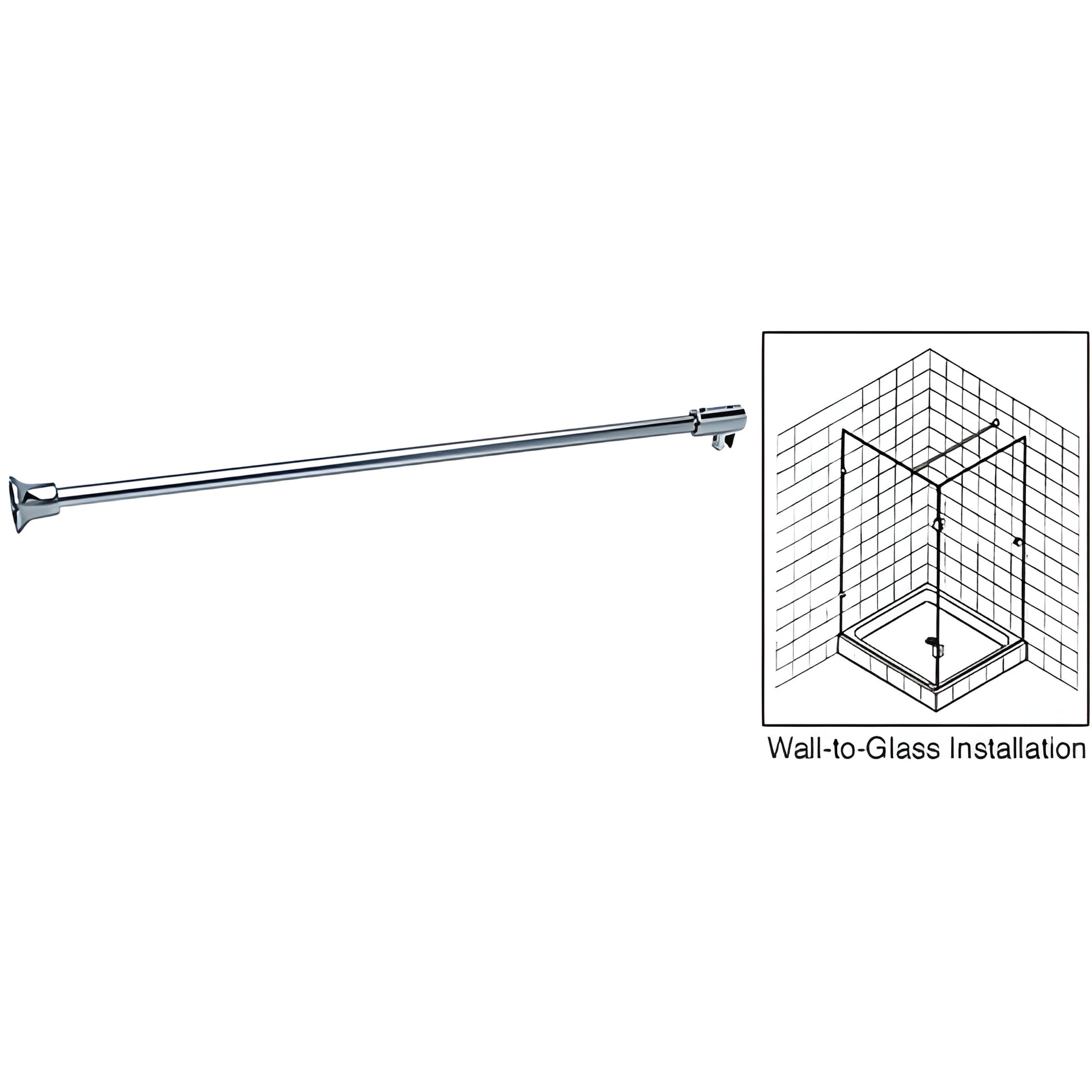

These CRL Fixed Panel Support Bars (SKU: SUP10CH) stabilize fixed glass panels in shower enclosures and other partial-height glass installations. The wall-to-glass model features a bell-shaped wall clamp and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed panel. The glass-to-glass model uses solid brass end caps with swiveling U-shaped receptacles on both ends to join and support adjacent fixed panels. Nylon-tipped set screws hold glass securely while preventing glass-to-metal contact. Bars fit 1/4" to 1/2" (6–12 mm) monolithic tempered glass and come in multiple finishes to match hinges, knobs, and pulls. No holes or cut-outs are required in the glass.


SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar with solid brass fittings
Bar Lengths: 39" (1 m) (also available in 51" / 1.3 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware

Order the SUP10CH fixed panel support bar today to reinforce shower enclosures and partial-height glass walls—contact us for finish availability and cut-to-size options.
