CRL Polished Brass Frameless Shower Support Bar 3/8–1/2" Glass

• Alternative to CRL header kits for securing fixed glass panels in shower enclosures
• Use with monolithic tempered glass
• Wall-to-glass and glass-to-glass models available
• Cut-to-size design to fit custom configurations — no glass drilling or cut-outs required
• Nylon-tipped set screws prevent glass-to-metal contact
• Available in 39" (1 m) and 51" (1.3 m) lengths

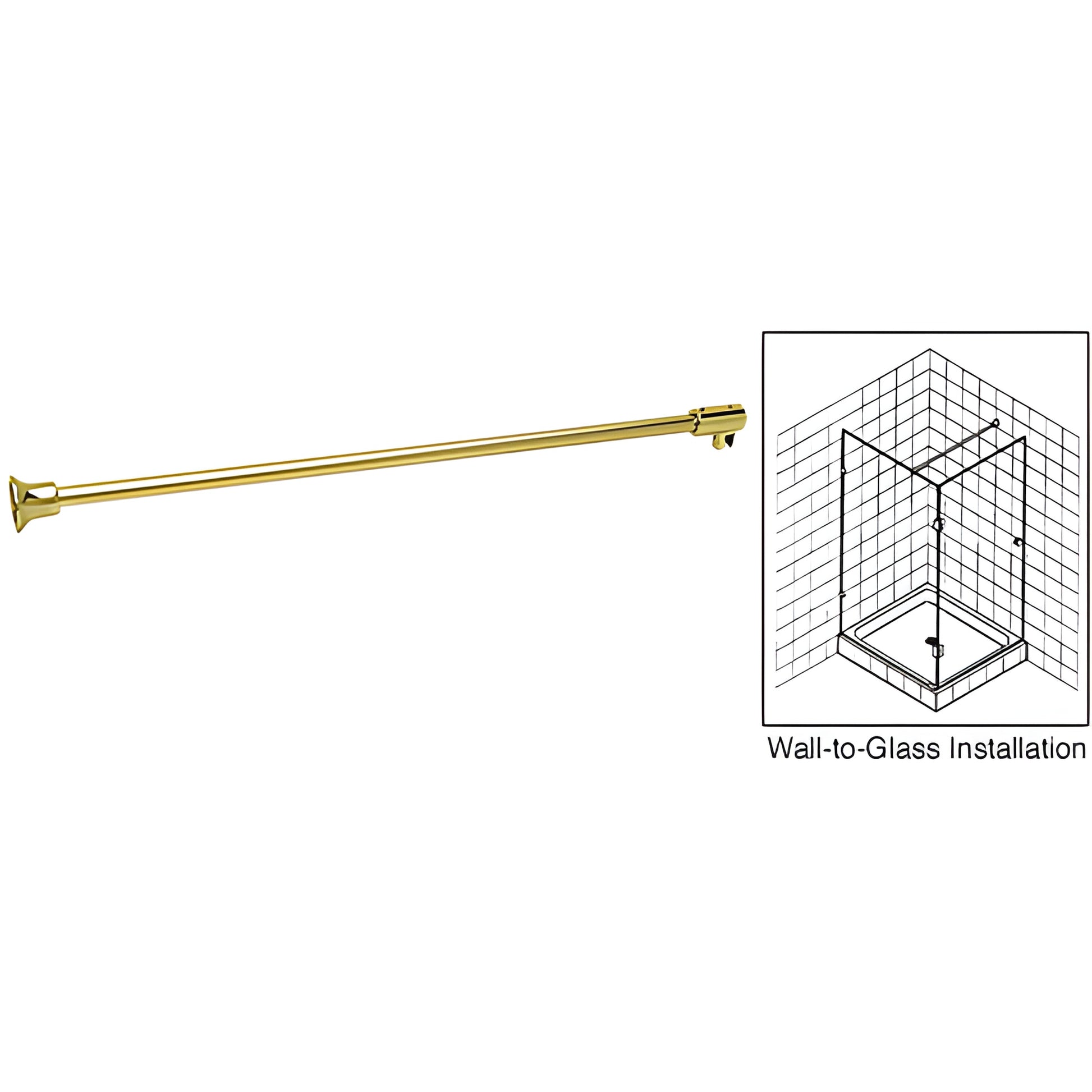

These CRL Fixed Panel Support Bars (SKU: SUP10BR) stabilize fixed panels of glass in enclosures that do not extend to the ceiling. The Wall-to-Glass model features a bell-shaped wall clamp and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass model uses solid brass end caps with swiveling U-shaped receptacles on both ends to secure adjoining fixed panels. Bars secure 1/4" to 1/2" (6–12 mm) tempered glass and require no holes or cut-outs in the glass. Finishes match most CRL hinges, knobs, and pulls for a cohesive look.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar, solid brass fittings
Bar Lengths: 39" (1 m); 51" (1.3 m) option available
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware

Brass Finish Advisory:
