- Use Where You Need Extra Space Between Window and Screen
- Typical Applications Include Use with Project-In or Project-Out Windows with Wicket Screens
- .025" (.63 mm) Wall Thickness

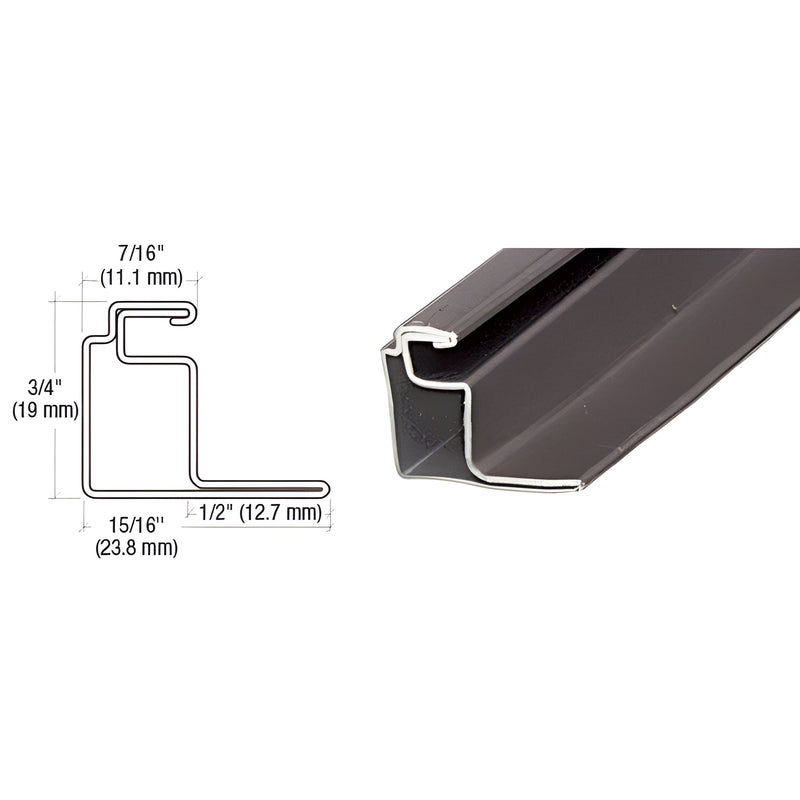

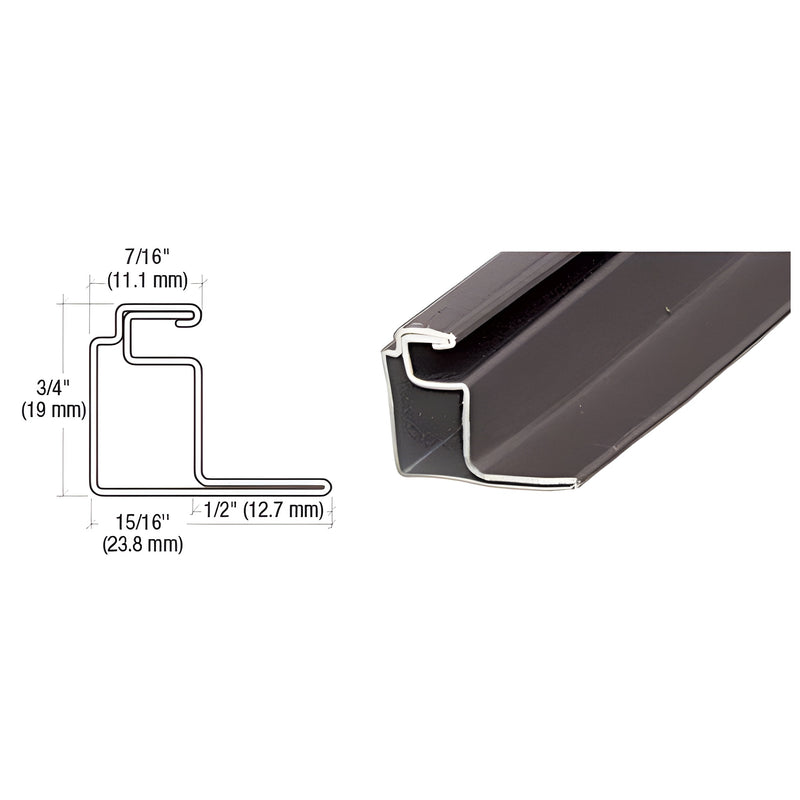

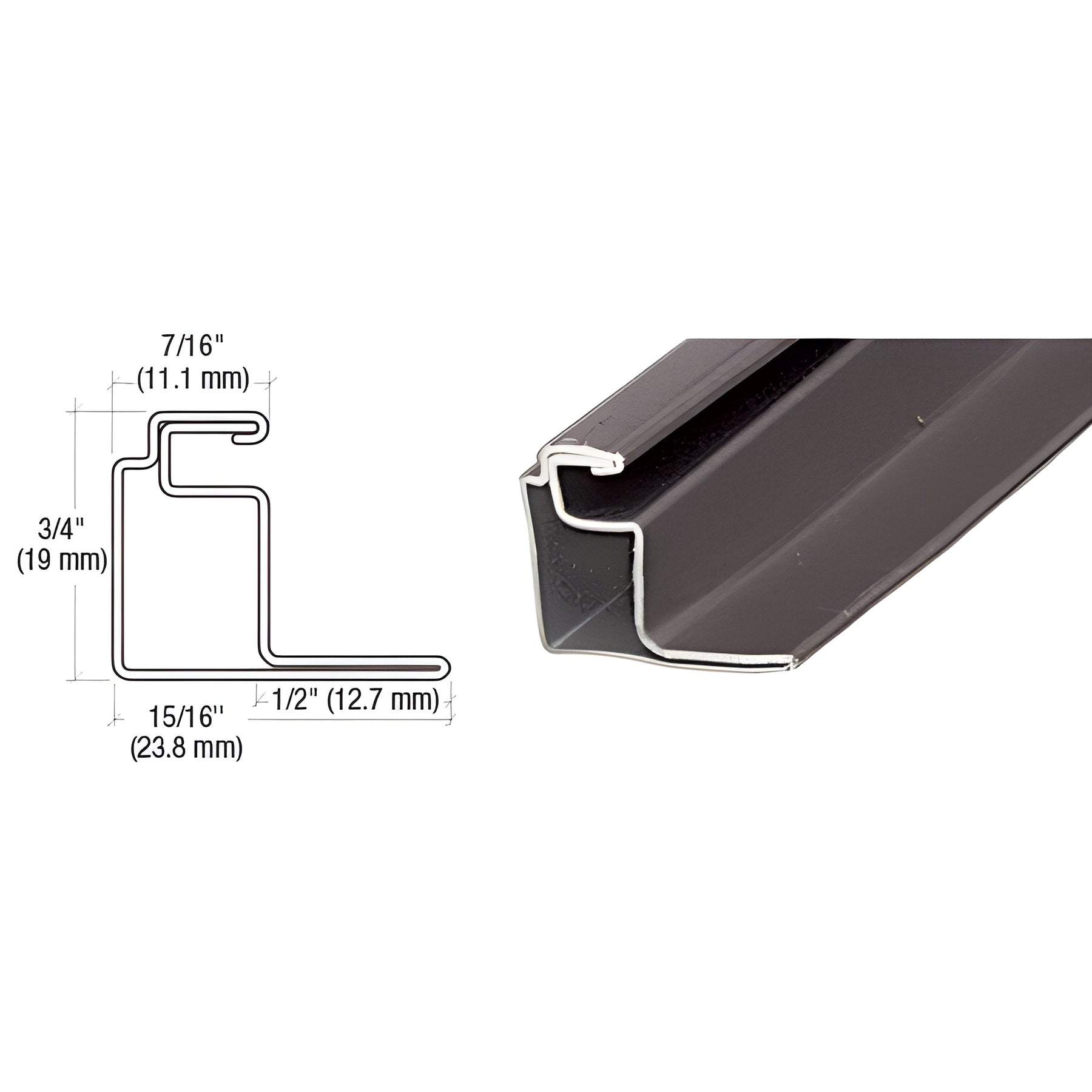

CRL 3/4" x 7/16" (19 x 11 mm) box type
Screen Frame
with 1/2" (12.7 mm) standoff leg allows screen installation in windows where a screen wicket is used. Packed in cases of 90 stock lengths 12' 2" long (3.7 m). Frame is cambered (slightly bowed) to retain screen tension when installed.
SPECIFICATIONS
Material: Roll Formed Aluminum
Wall Thickness: .025" (.63 mm)
Uses Spline Size: .175" (4.4 mm)
Uses Corners: WSC111 or WSC113 for Mitered Corners
Product Warning
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thickness can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
