Product Details
- Use Where You Need Extra Space Between Window and Screen
- Typical Applications Include Use with Project-In or Project-Out Windows with Wicket Screens
- .025" (.63 mm) Wall Thickness

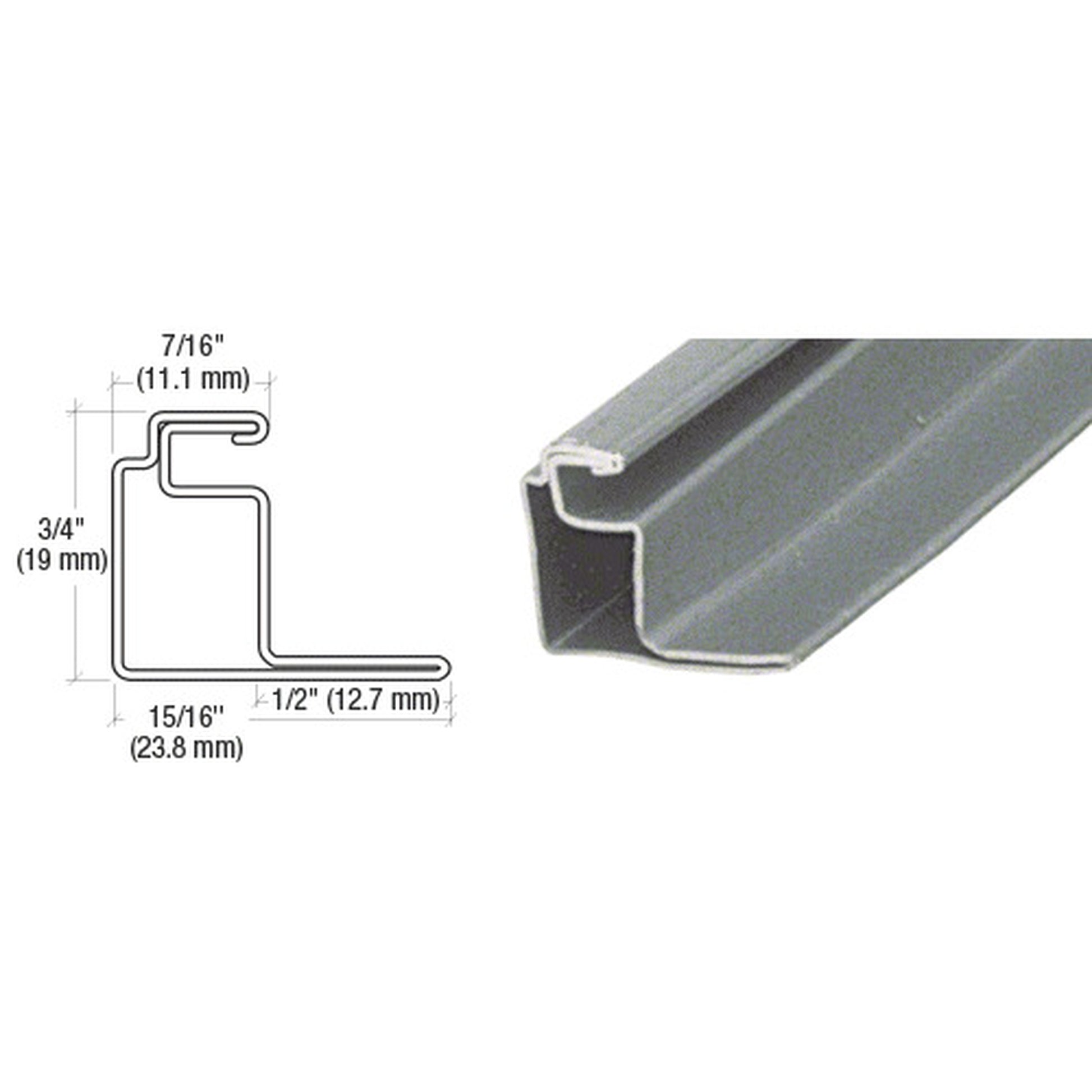

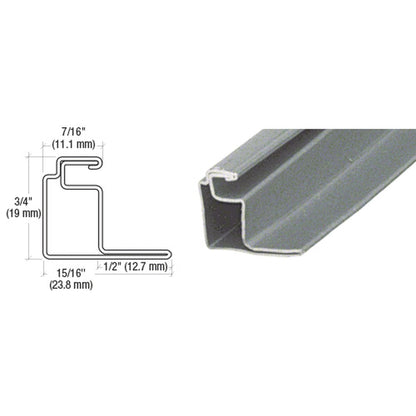

CRL 3/4" x 7/16" (19 x 11 mm) box type Screen Frame with 1/2" (12.7 mm) standoff leg allows screen installation in windows where a screen wicket is used. Packed in cases of 90 stock lengths 12' 2" long (3.7 m). Frame is cambered (slightly bowed) to retain screen tension when installed.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .025" (.63 mm)
Uses Spline Size: .175" (4.4 mm)
Uses Corners: WSC111 or WSC113 for Mitered Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thickness can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
