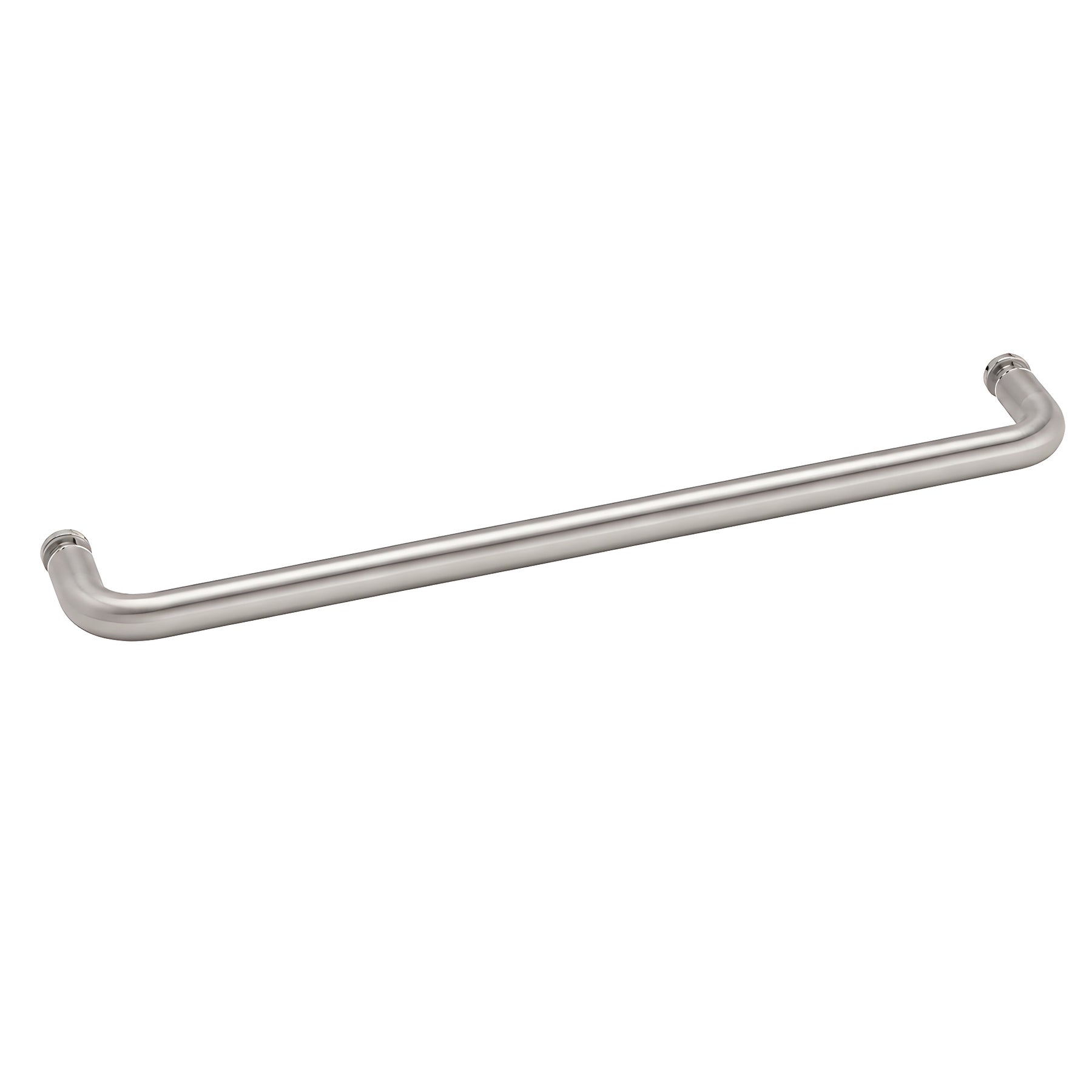

CRL BM Series 18-Inch Brushed Nickel Wall-Mount Towel Bar

• Low-profile 1/8" end caps — ideal for bypass sliding doors
• Available in several sizes and popular finishes
• Heavy 3/4" (19 mm) brass tubular construction (1.5 mil thick)
• No exposed metal washers for a sleek, continuous profile
• Designed for monolithic tempered glass mounting

CRL BM Series Single-Sided Towel Bars (No Metal Washers) are engineered for glass-mounted installations on fixed panels or doors. The low-profile end caps make these towel bars especially suitable for sliding bypass doors. Each bar uses heavy 3/4" brass tubing with plastic washers to protect glass-to-metal contact, delivering a minimalist, durable glass-mounted towel bar solution.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-center hole spacing:

• 12" Towel Bar = 12" (305 mm)
• 18" Towel Bar = 18" (457 mm)
• 20" Towel Bar = 20" (508 mm)
• 22" Towel Bar = 22" (559 mm)
• 24" Towel Bar = 24" (610 mm)
• 26" Towel Bar = 26" (660 mm)
• 27" Towel Bar = 27" (686 mm)
• 28" Towel Bar = 28" (711 mm)
• 30" Towel Bar = 30" (762 mm)

AVAILABLE SIZES:
CAT. NO. BMNW12 — 12" Towel Bar
CAT. NO. BMNW18 — 18" Towel Bar
CAT. NO. BMNW20 — 20" Towel Bar
CAT. NO. BMNW22 — 22" Towel Bar
CAT. NO. BMNW24 — 24" Towel Bar
CAT. NO. BMNW26 — 26" Towel Bar
CAT. NO. BMNW27 — 27" Towel Bar
CAT. NO. BMNW28 — 28" Towel Bar
CAT. NO. BMNW30 — 30" Towel Bar
