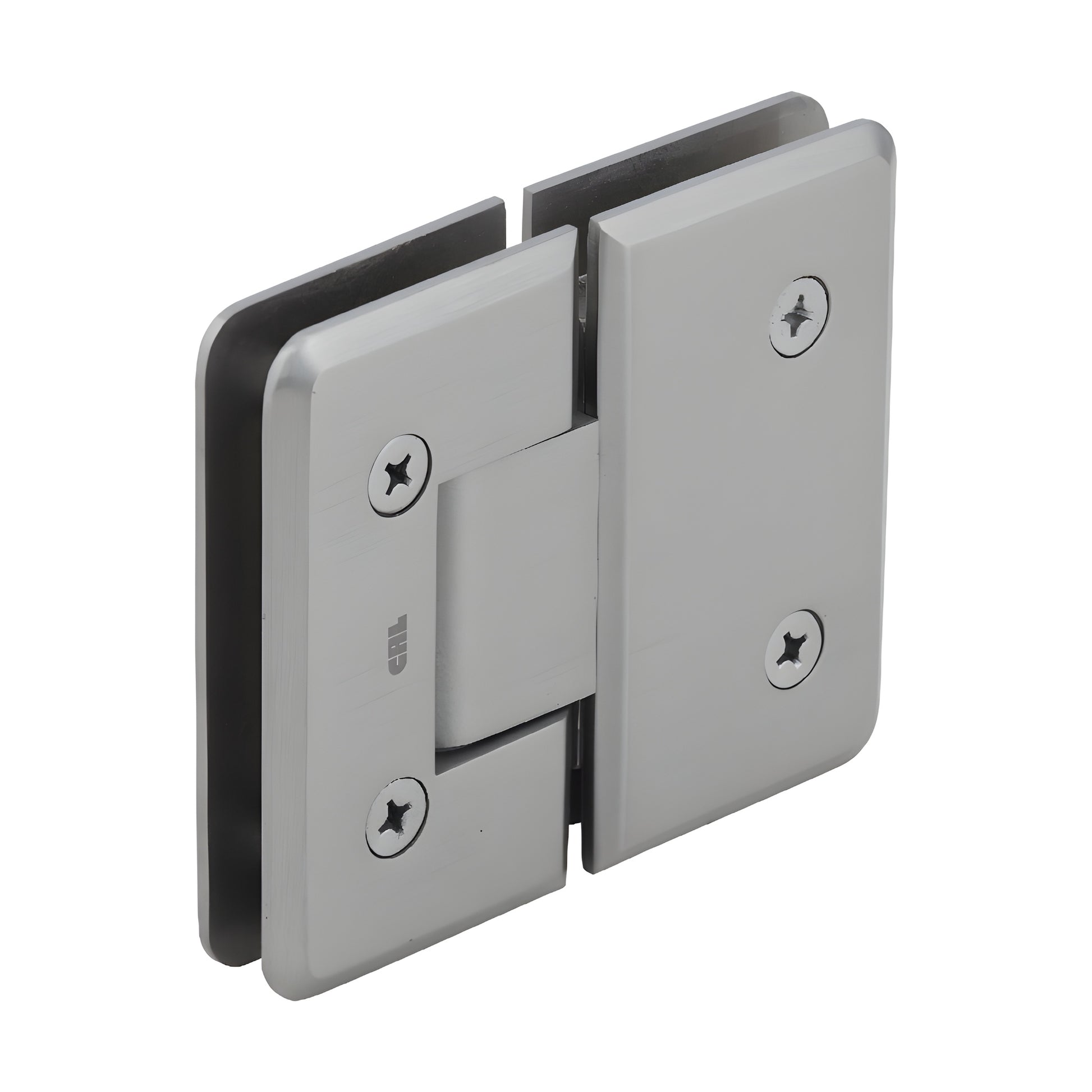

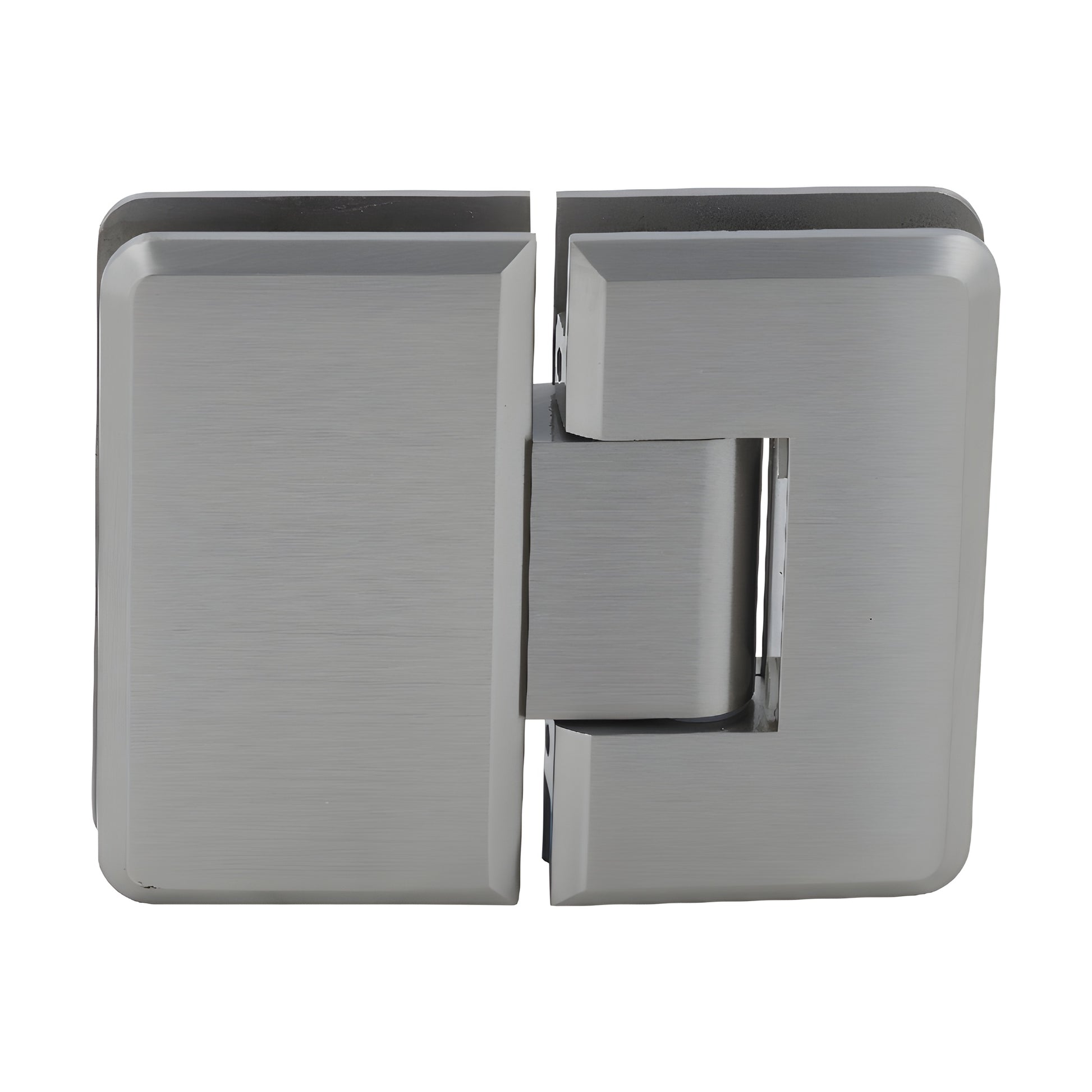

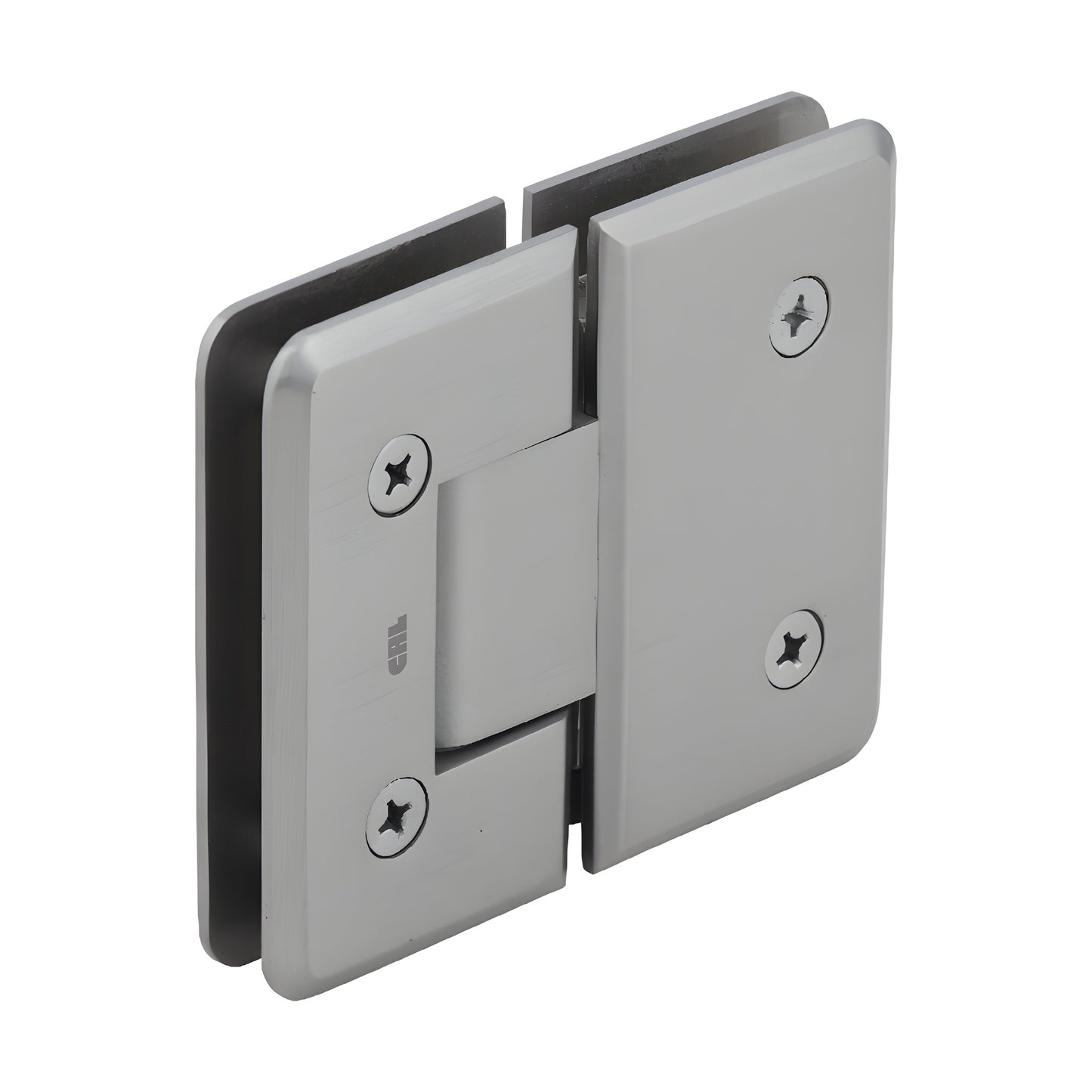

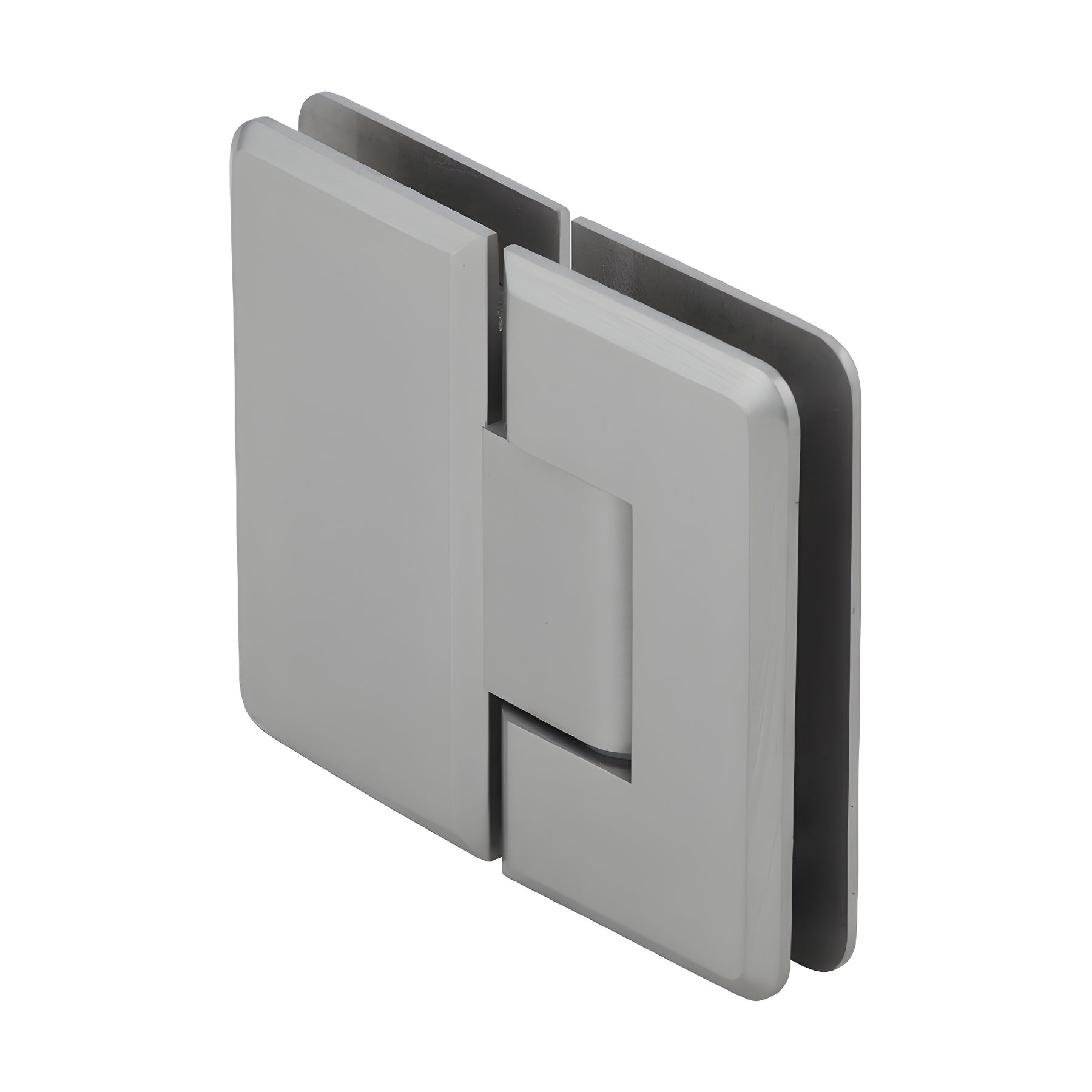

CRL Cologne 180 Brushed Nickel Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 180º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU C0L180BN) are premium solid-brass shower door hinges designed for glass shower doors and heavy-duty frameless shower enclosures. Similar to Vienna Hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek, contemporary look while supporting wider, heavier doors that standard hinges cannot. Two internal steel pins provide mounting flexibility: leave pins in for CRL "mouse-ears" cut-outs for added safety, or remove pins for increased adjustability and compatibility with rectangular, square-corner cut-outs (may fit some competitive cut-outs).

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with 90º activated; Pre-Set models ship at 85º for a tighter 5º closure into the shower interior. Rotate (do not flip) the pin to change the setting.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify angles up to 45º) to ensure proper closing where walls are not square.

Load Capacity & Door Size:
- Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg); max door width 36" (914 mm).
- Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg); max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (durable corrosion resistance for shower environments)
Hinge Swings: 90º In and 90º Out (180º glass-to-glass application)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Cut-out required except for C0L092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
