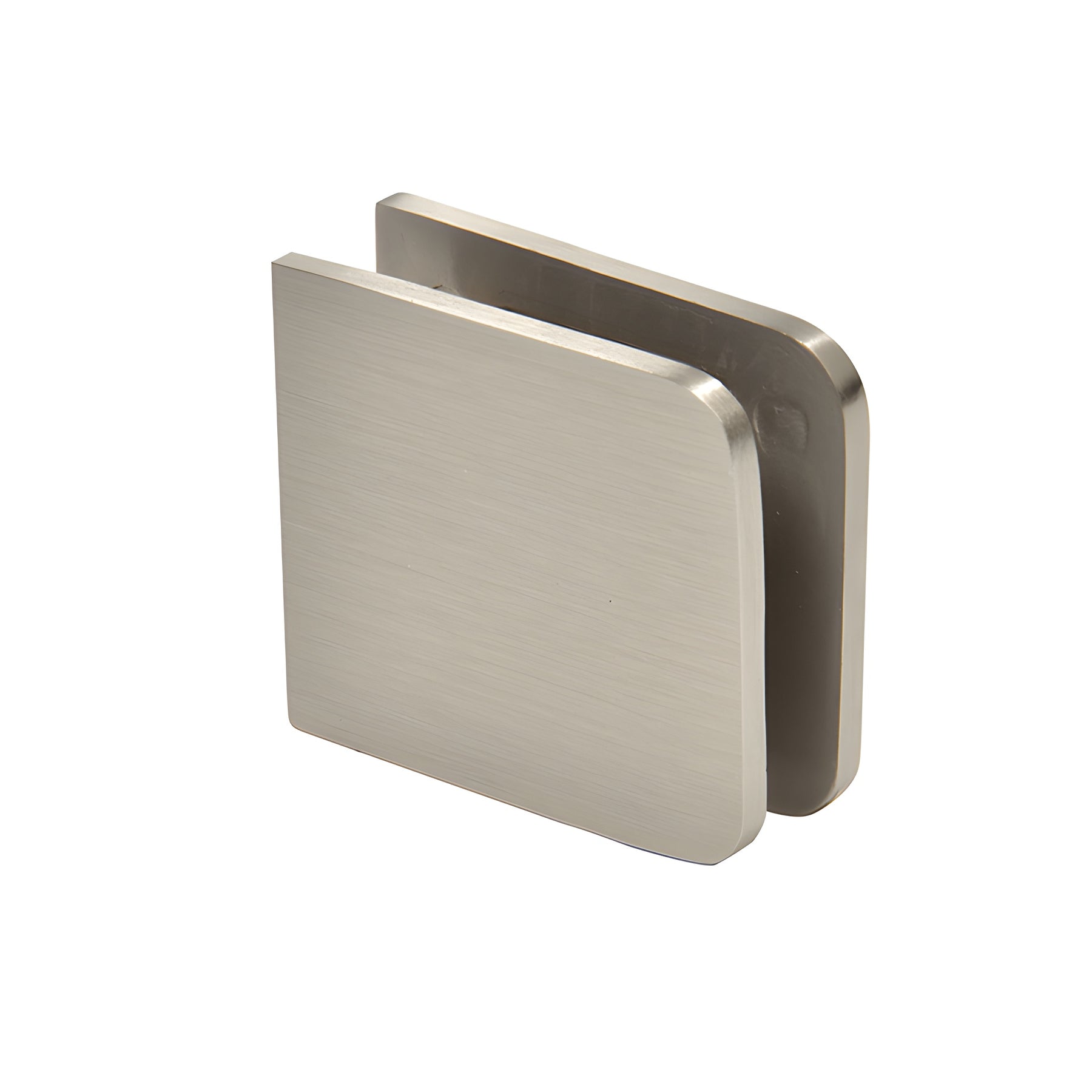

CRL Brushed Nickel Oversized U-Clamp for Shower Glass Panel
CRL Brushed Nickel Oversized U-Clamp for Shower Glass Panel
Regular price
$33.57 CAD
Regular price
Sale price
$33.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC79BN
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-15/16 in. (49 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/4 in. (44 mm)
Overview
- Recommended for 1/2" (12 mm) glass installations
- Use monolithic tempered glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction
- Alternative to traditional U-channel — clamps preserve an all-glass look
- Glass fabrication required to accommodate clamps
CRL Oversized Fixed Panel U-Clamps (SKU: UC79BN) are engineered for frameless shower glass applications using thicker, 1/2" (12 mm) tempered glass where temperers require hole placement equal to 1.5× the glass thickness. These oversized U-clamps maintain a clean, all-glass appearance compared with U-channel and are ideal for securing fixed panels in contemporary shower enclosures.
Our traditional glass clamps feature solid brass construction in finishes that coordinate with our shower door hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets. Extra clear gaskets (Cat. No. UCG77) are available separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Order UC79BN oversized fixed panel U-clamps today to achieve a secure, frameless shower look — contact us for availability or volume pricing.
