CRL
CRL Gunmetal Oversized Glass Panel U-Clamp - Shower Hardware
CRL Gunmetal Oversized Glass Panel U-Clamp - Shower Hardware
Regular price
$44.41 CAD
Regular price
Sale price
$44.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC79GM
Shipping Weight: 5.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gun Metal
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-15/16 in. (49 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/4 in. (44 mm)
Overview
- Recommended for 1/2" (12 mm) monolithic tempered glass
- Secures fixed panels in frameless shower enclosures
- Solid brass construction with finishes to match shower door hinges
- Better "all-glass" appearance than traditional U-channel
- Glass fabrication required (hole drilling: see specifications)

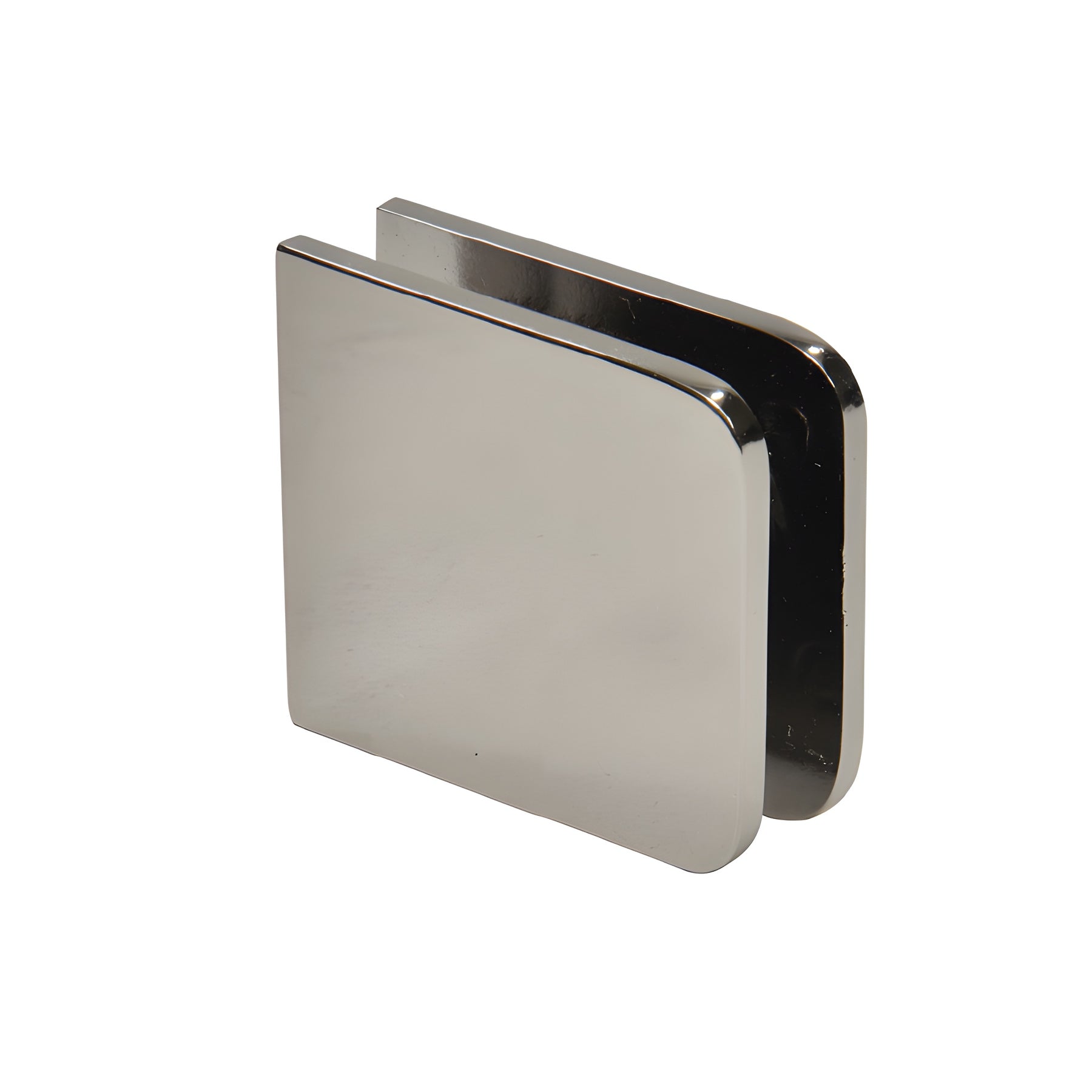

CRL Oversized Fixed Panel U-Clamps (SKU: UC79GM) are oversized clamps designed for 1/2" (12 mm) tempered glass installations where the temperer requires a hole distance of 1.5× the glass thickness. These solid brass glass clamps secure fixed panels in contemporary frameless shower enclosures and provide a cleaner, less obtrusive alternative to U-channel, helping achieve an all-glass look.
All clamps include appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.

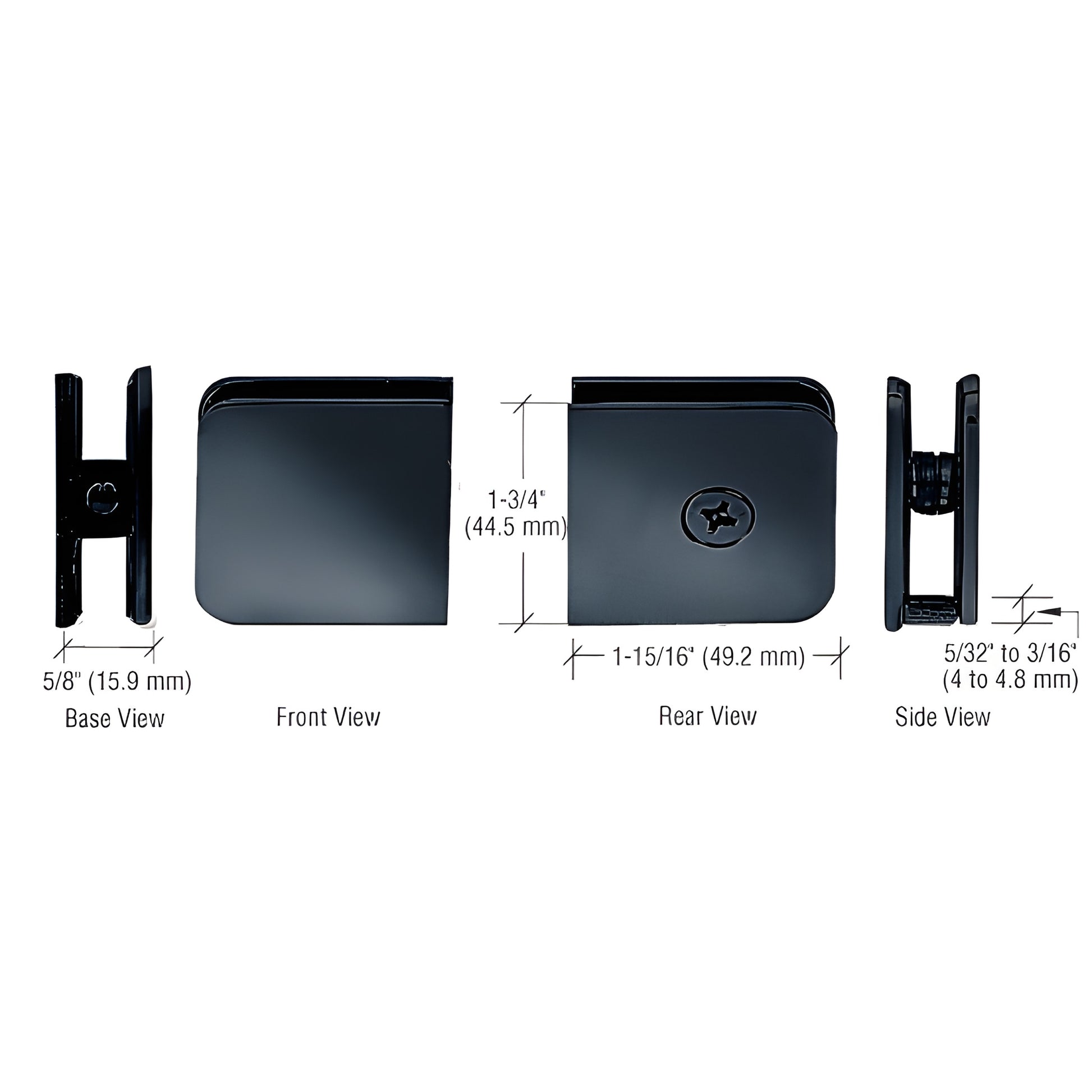

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Optimize your frameless shower installation with durable, solid-brass oversized U-clamps — order UC79GM today.
Specifications
Templates
