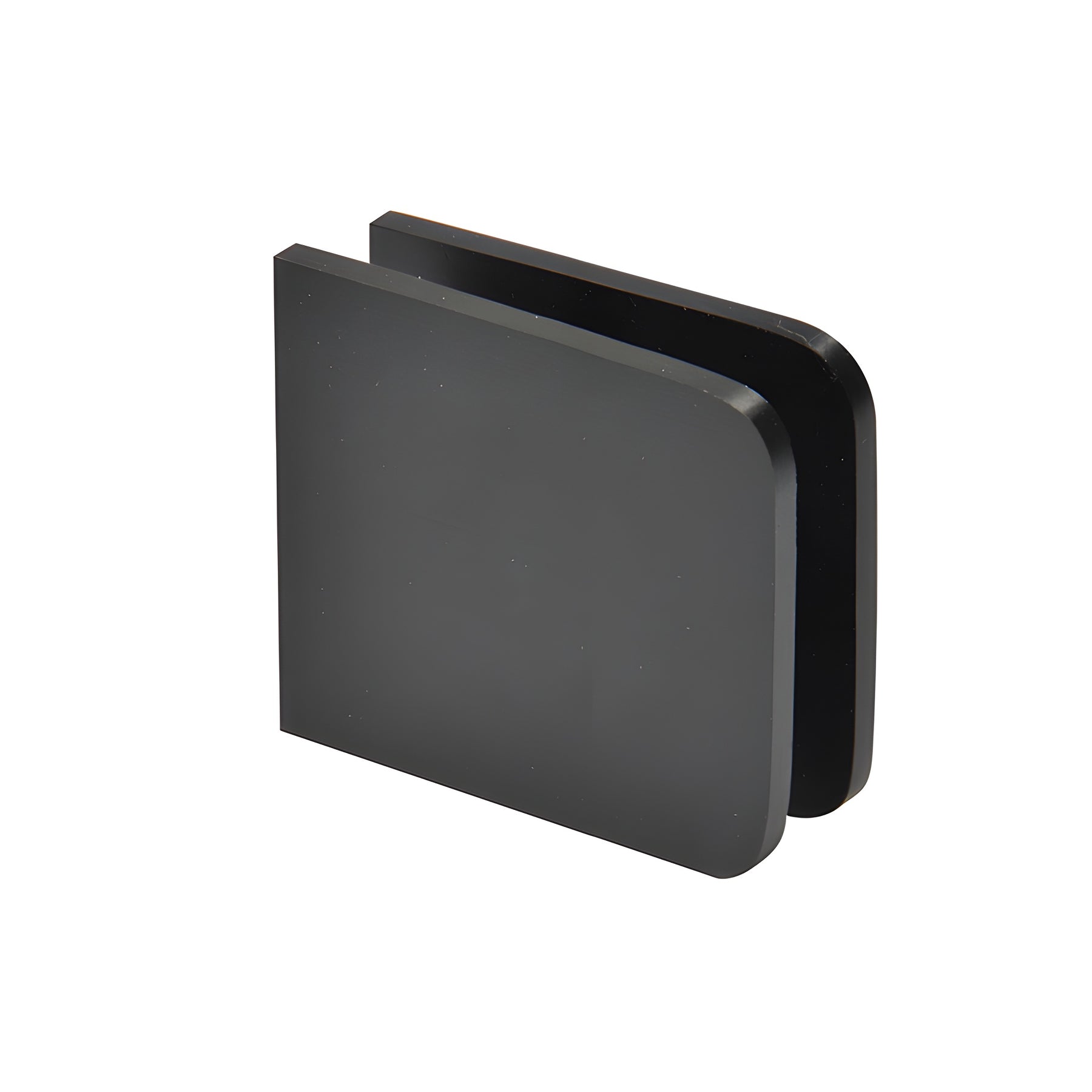

CRL Oil-Rubbed Bronze Oversized U-Clamp for Glass Shower Panel
CRL Oil-Rubbed Bronze Oversized U-Clamp for Glass Shower Panel
Regular price
$37.91 CAD
Regular price
Sale price
$37.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC790RB
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

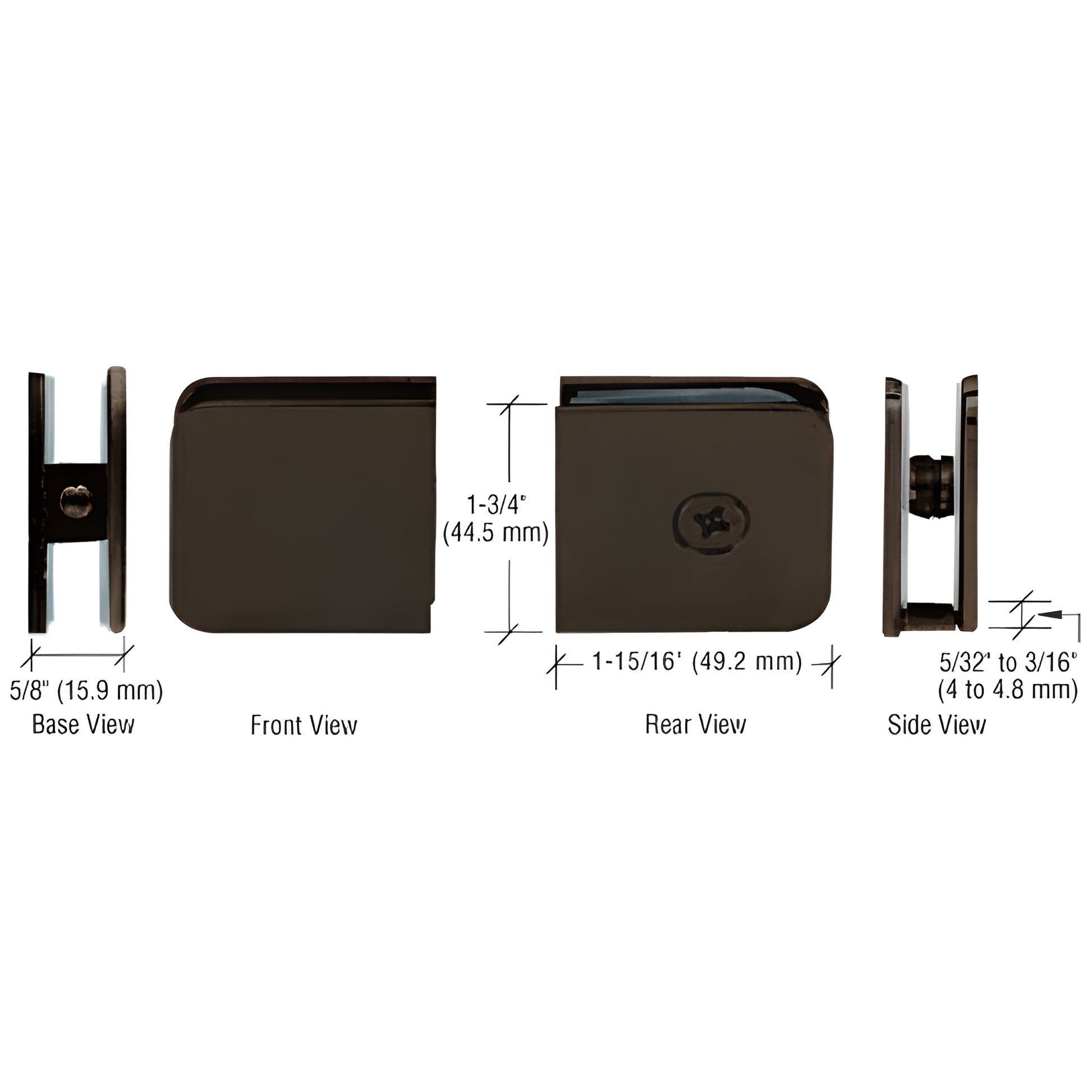

Finish/Color
Oil Rubbed Bronze
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-15/16 in. (49 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/4 in. (44 mm)
Overview
- Recommended for 1/2" (12 mm) monolithic tempered glass
- Used to secure fixed panels of glass in frameless shower enclosures
- Solid brass construction for durability and matching finishes
- Designed to enhance an all-glass look as an alternative to U-channel
- Glass fabrication required to accommodate clamps (hole drilling)
CRL Oversized Fixed Panel U-Clamps (SKU: UC790RB) are engineered for oversized and 1/2" (12 mm) tempered glass installations that require hole-drilling measurements equal to 1.5× the glass thickness. Ideal for frameless shower enclosures, these oversized U-clamps secure fixed panels while preserving a clean, contemporary all-glass appearance.
Our Traditional Glass Clamps are solid brass with multiple finish options to coordinate with CRL Shower Door Hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Order UC790RB Oversized Fixed Panel U-Clamps today to secure 1/2" tempered glass with a clean, frameless look.
