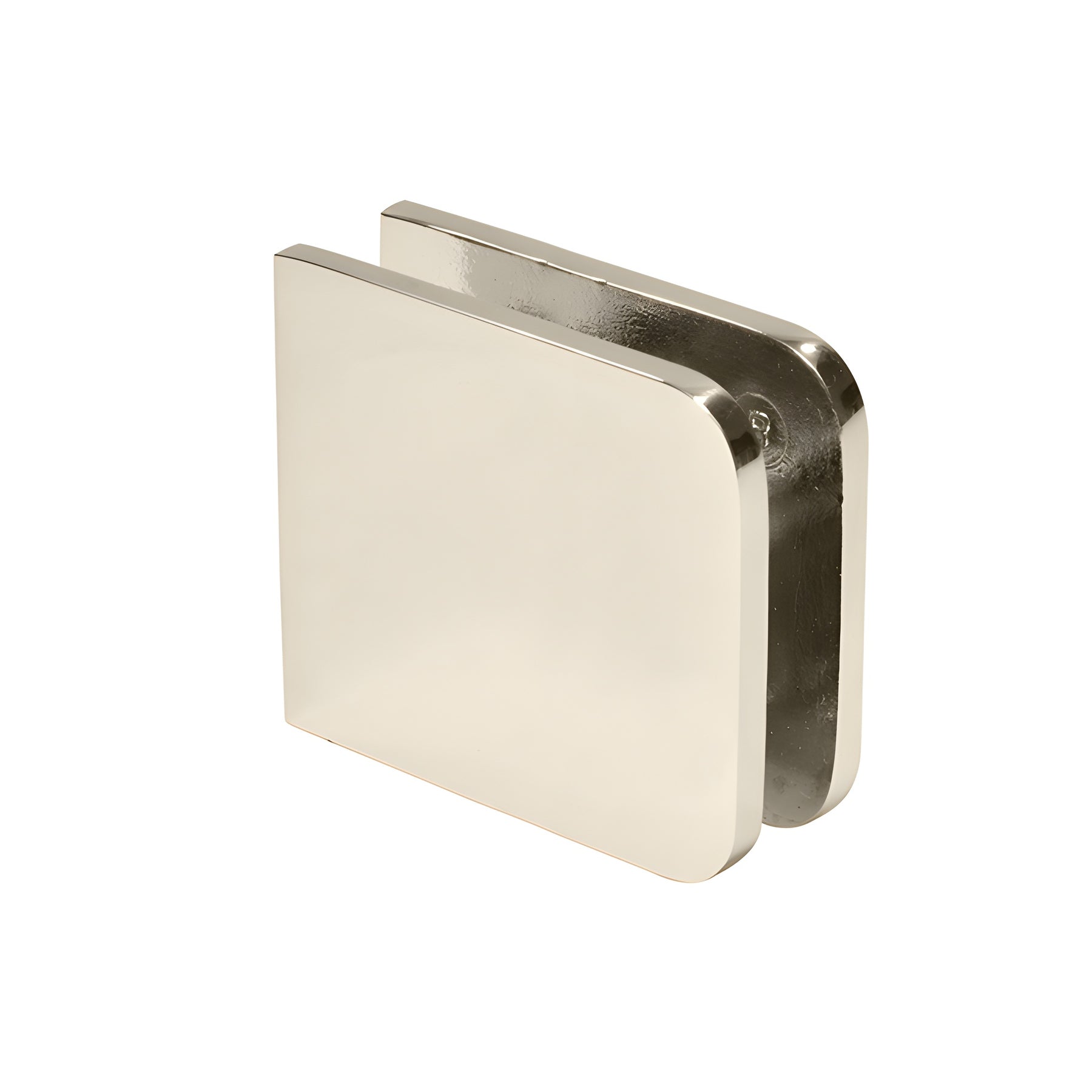

CRL Polished Nickel Oversized Glass U-Clamp for Fixed Shower Panels

• Recommended when using 1/2" (12 mm) glass
• Use monolithic tempered glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Provides an all-glass look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps

CRL Oversized Fixed Panel U-Clamps are designed for securing fixed shower glass panels where tempered 1/2" (12 mm) monolithic glass is used. These oversized clamps are recommended when the temperer requires a hole-drilling setback of one-and-a-half times the glass thickness. They deliver a clean, frameless appearance ideal for contemporary shower enclosures and other architectural glass applications.

Our solid brass traditional glass clamps offer durable corrosion resistance and match CRL shower door hinge finishes for cohesive styling. Each clamp includes appropriate mounting screws and one set of clear gaskets; additional Cat. No. UCG77 clear gaskets are available separately.

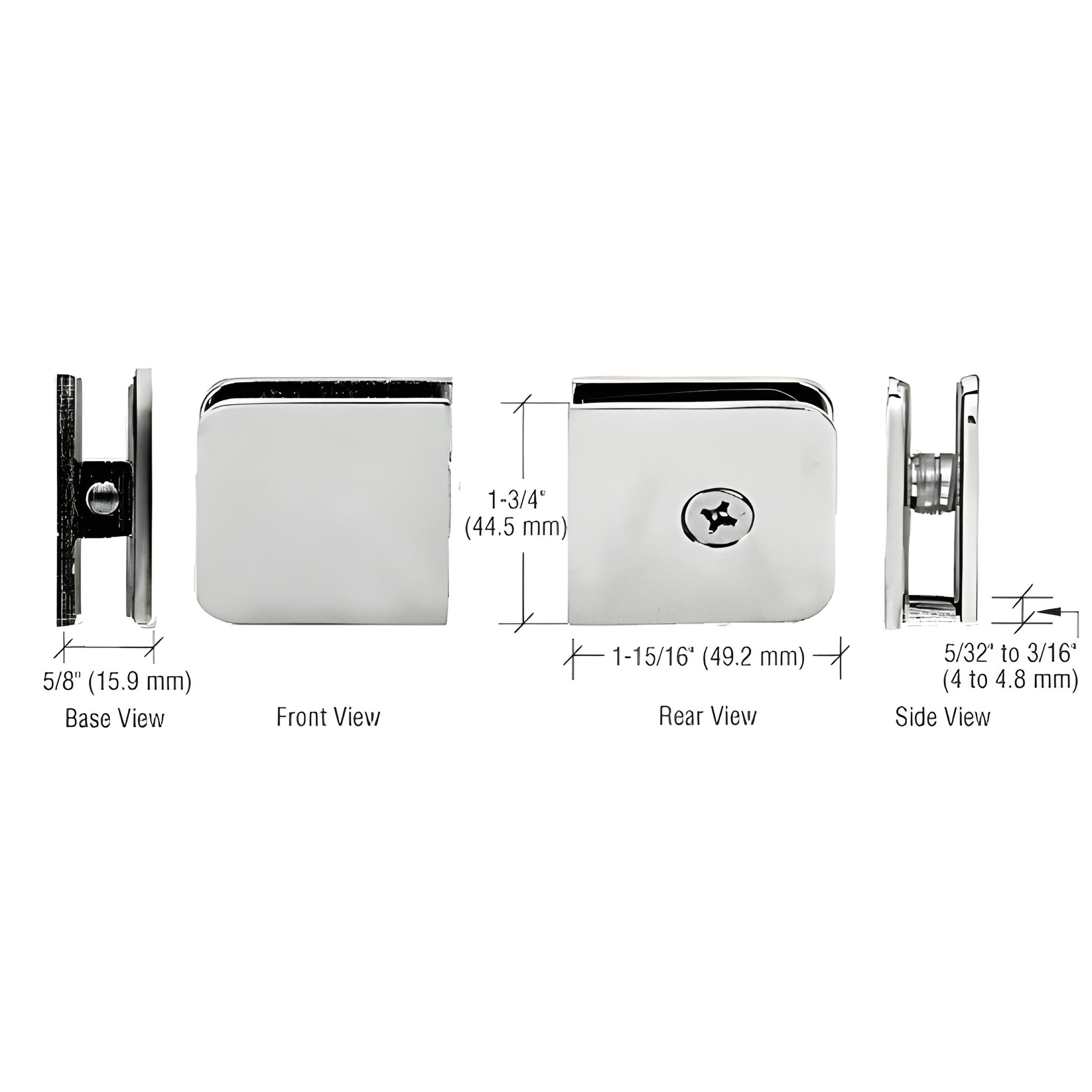

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets

NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Choose CRL oversized fixed panel U-clamps for secure, solid-brass shower glass mounting and a sleek all-glass look — order today to complete your frameless shower project.
