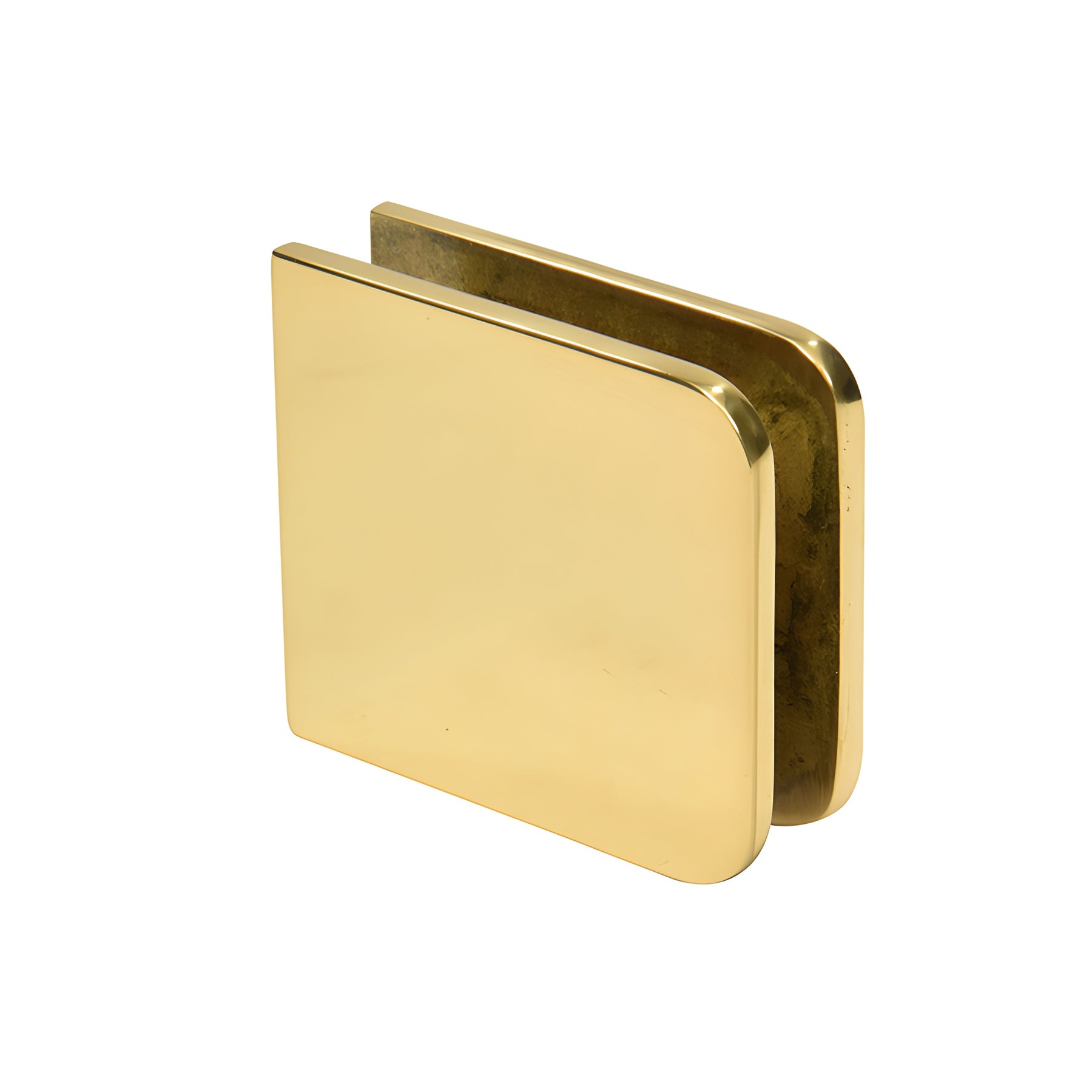

CRL Polished Brass Oversized U-Clamp for Fixed Glass Shower Panel
CRL Polished Brass Oversized U-Clamp for Fixed Glass Shower Panel
Regular price
$32.49 CAD
Regular price
Sale price
$32.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC79BR
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

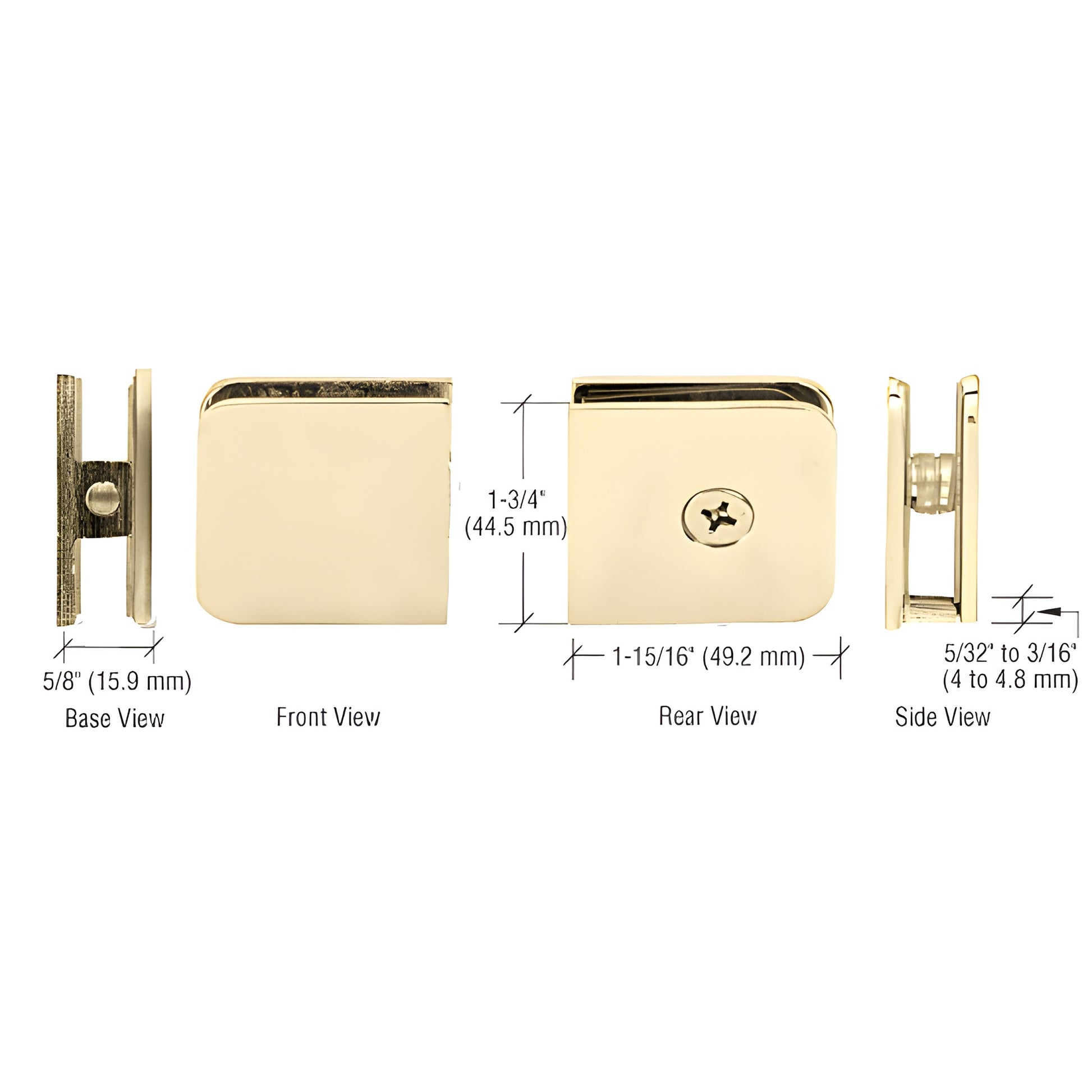

Finish/Color
Polished Brass
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-15/16 in. (49 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/4 in. (44 mm)
Overview
- Recommended for 1/2" (12 mm) monolithic tempered glass
- Secures fixed glass panels in frameless shower enclosures
- Solid brass construction with finish options to match shower door hinges
- Clamps provide a cleaner, more "all-glass" appearance than traditional U-channel
- Glass fabrication (hole drilling) required to accommodate clamps
CRL Oversized Fixed Panel U-Clamps (SKU: UC79BR) are made for 1/2" (12 mm) tempered glass installations where temperers require a hole drilled at one and a half times the glass thickness from the edge. These oversized clamps preserve the frameless, all-glass look while offering the durability of solid brass construction and coordinated finish options.
Our traditional glass clamps secure fixed panels in contemporary frameless shower systems and are an attractive alternative to U-channel. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
Order UC79BR oversized fixed panel U-clamps to achieve a durable, polished frameless look—contact us or add to cart to get started.
