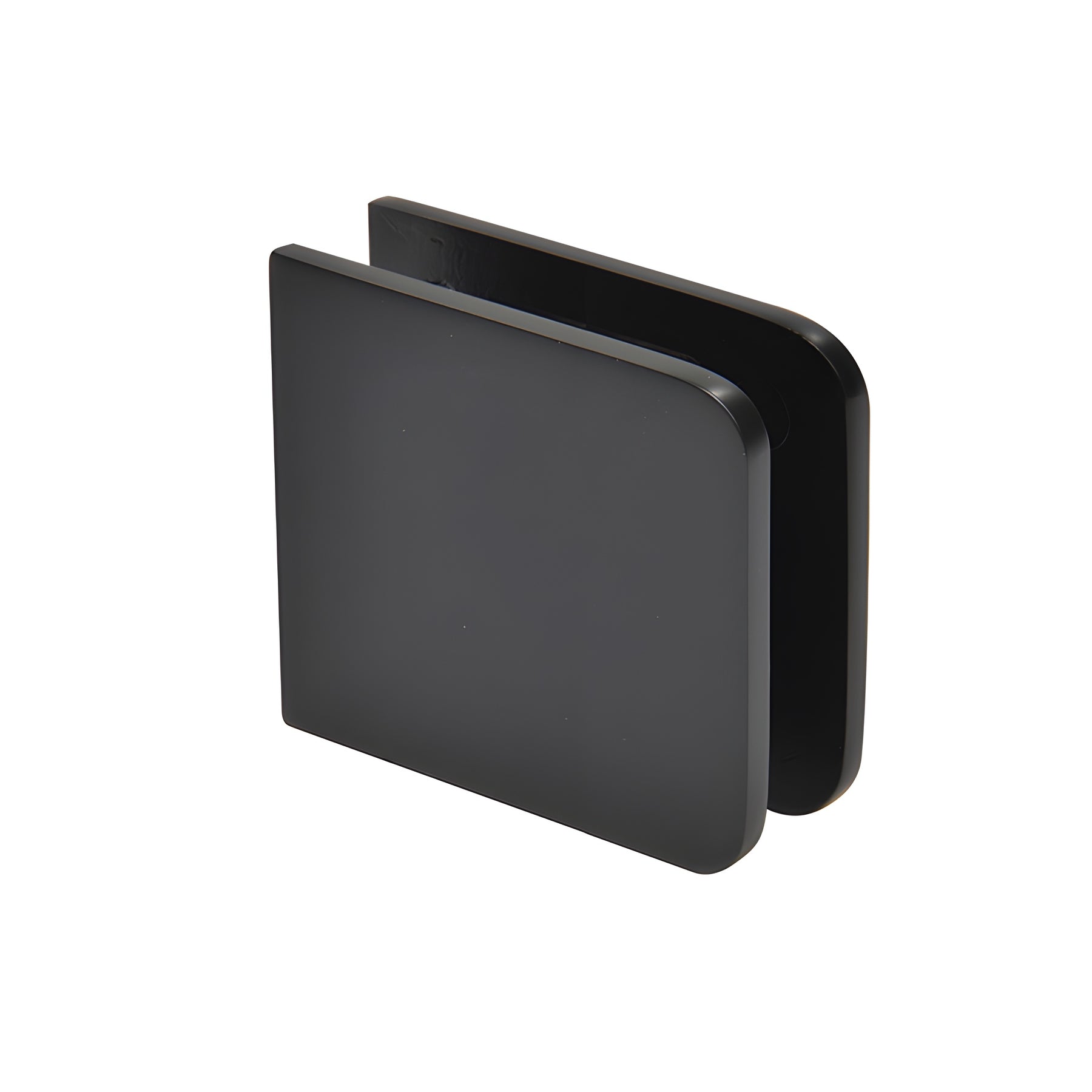

CRL Matte Black Oversized Glass U-Clamp for Fixed Panels

• Recommended for 1/2" (12 mm) tempered glass
• Use monolithic tempered glass
• Secures fixed panels of glass in frameless shower enclosures
• Solid brass construction with multiple finishes to match shower door hardware
• Provides an "all-glass" appearance as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamp hole drilling

CRL Oversized Fixed Panel U-Clamps (SKU: UC79MBL) are oversized clamps engineered for frameless shower glass applications, especially when 1/2" (12 mm) tempered glass requires a hole-drilling setback of 1.5× glass thickness per temperer specifications. Designed to create a clean, all-glass look, these clamps secure fixed panels while minimizing visible framing.

Our traditional glass clamps are solid brass for corrosion resistance and durability, available in finishes that coordinate with our shower door hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra Cat. No. UCG77 clear gaskets may be ordered separately.

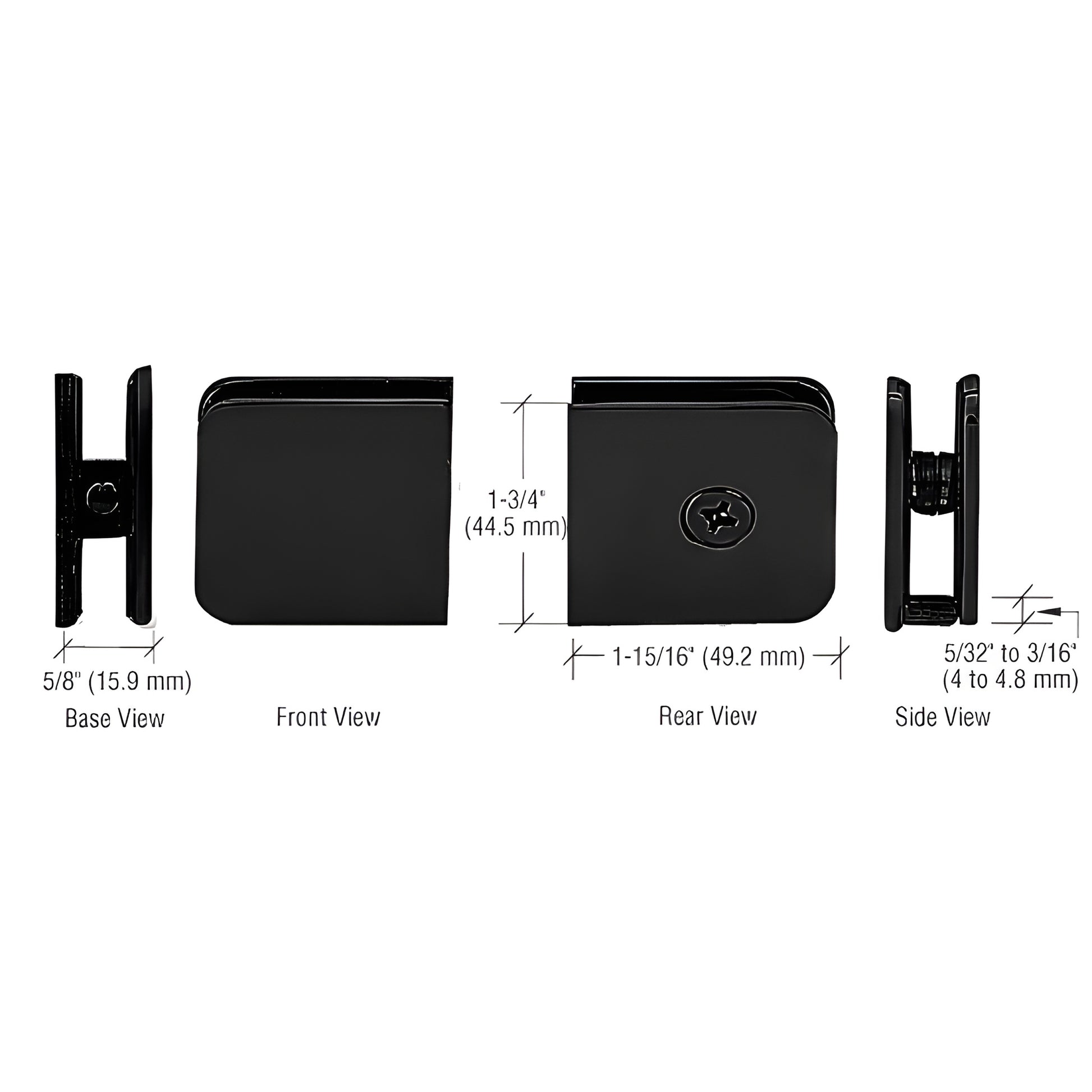

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets

NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Order CRL Oversized Fixed Panel U-Clamps (UC79MBL) for a durable, polished solution to secure 1/2" frameless shower glass—add to cart or contact customer service for ordering and weight confirmation.
