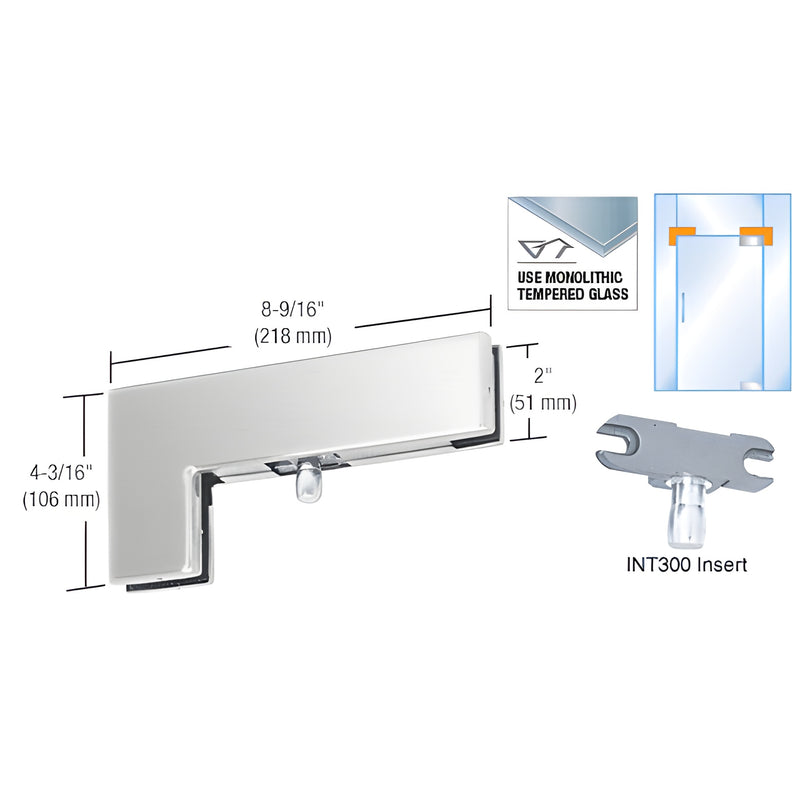

• PH40BS brushed stainless sidelite-mounted transom patch for 3/8-1/2" tempered glass with INT300 insert, 8-9/16" length
1 1

CRL

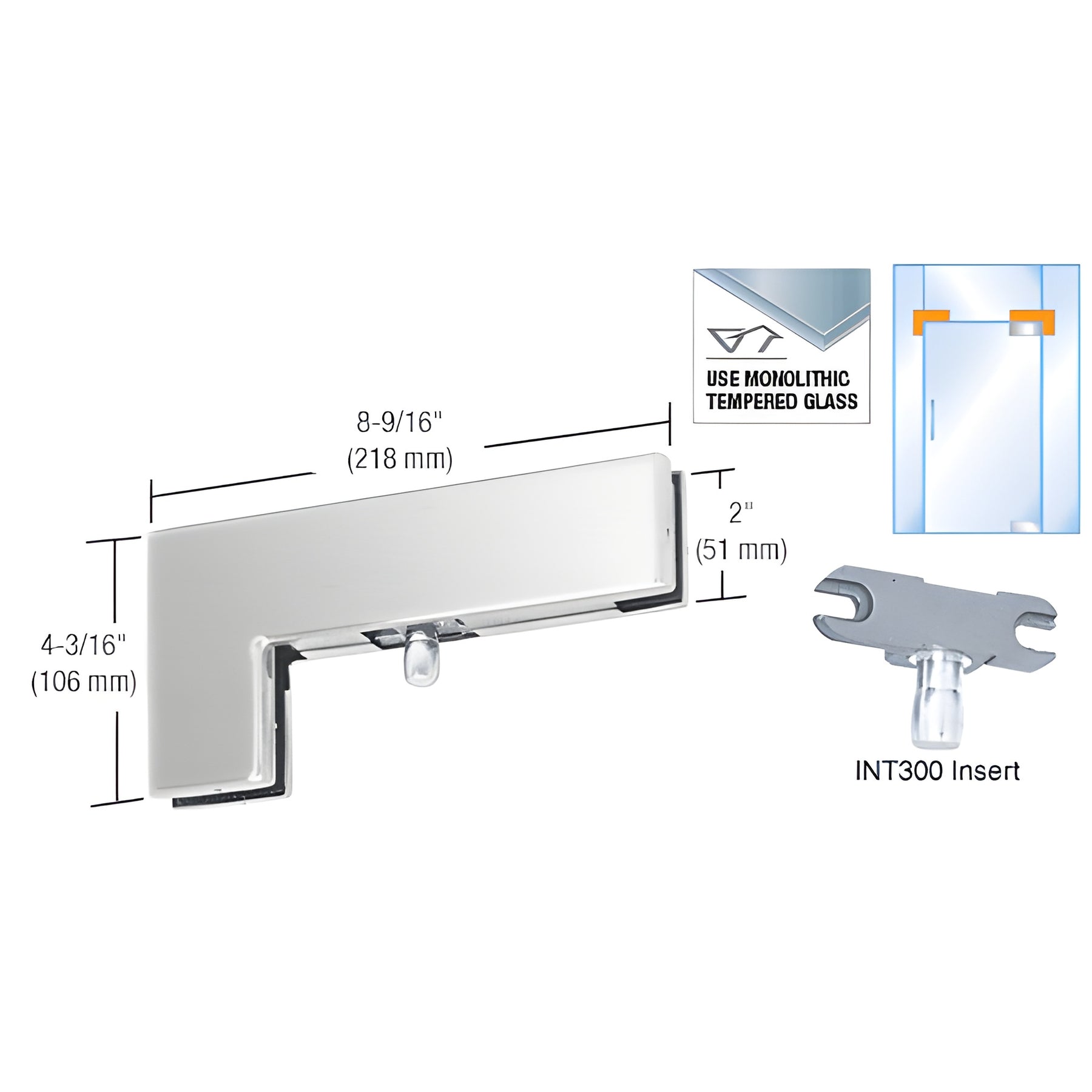

CRL Brushed Stainless Steel Sidelite/Transom Patch Fitting 1NT300

CRL Brushed Stainless Steel Sidelite/Transom Patch Fitting 1NT300

$122.78 CAD
$122.78 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH40BS
Shipping Weight: 1.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT300
Mounting Type
Sidelite
With Insert
Yes

Overview

  • Compatible with 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
  • For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • Not for use with laminated glass

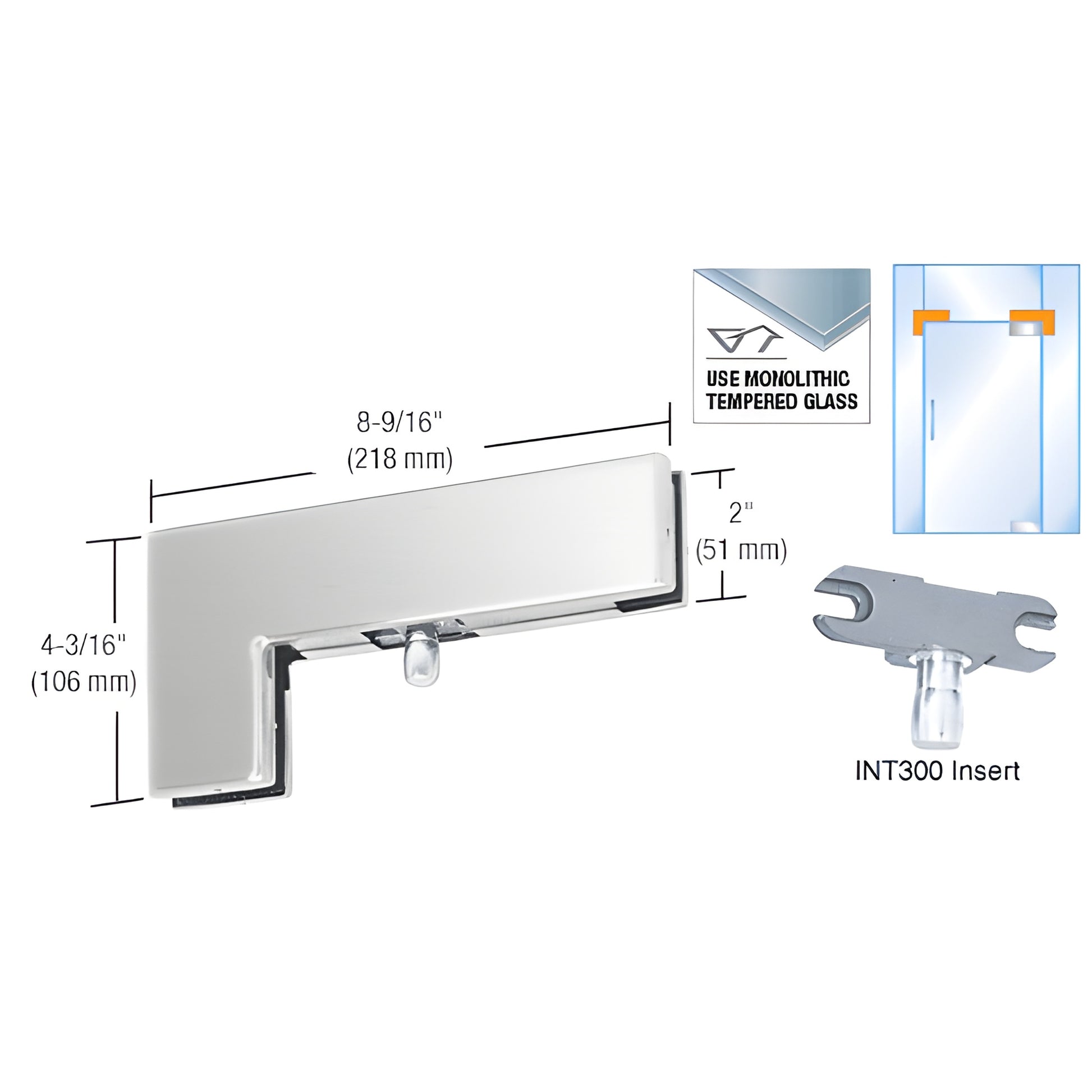

The CRL Sidelite Mounted Transom Patch (SKU: PH40BS) supports a transom from a sidelite glass panel and includes an INT300 Insert for mounting with CRL PH20A or PH21A top door patch fittings. The insert can be relocated to the non-hinged side for a double-swing door configuration. Add an INT306 Transom Patch Door Stop Insert for one-way doors, or an INT305 Keeper Insert to pair with the AMR205 lock for top-of-door installations. These features make PH40BS ideal for commercial glass door and sidelite transom support applications where durable, field-adjustable patch fittings are required.

If the transom weight exceeds 100 lbs. (45.4 kg), ceiling support is required to prevent patch slippage. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact CRL Technical Sales for installation guidance.

GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) diameter holes and corner notch

COMES WITH:
Template and instructions

Product Warning:

NOTE: These fittings are not for use with laminated glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


For product questions, installation help, or to order the PH40BS sidelite mounted transom patch for tempered glass transom support, contact CRL or your
