CRL Matte Black Sidelite/Transom Door Patch with 1NT300 Insert

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• Compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Not for use with laminated glass

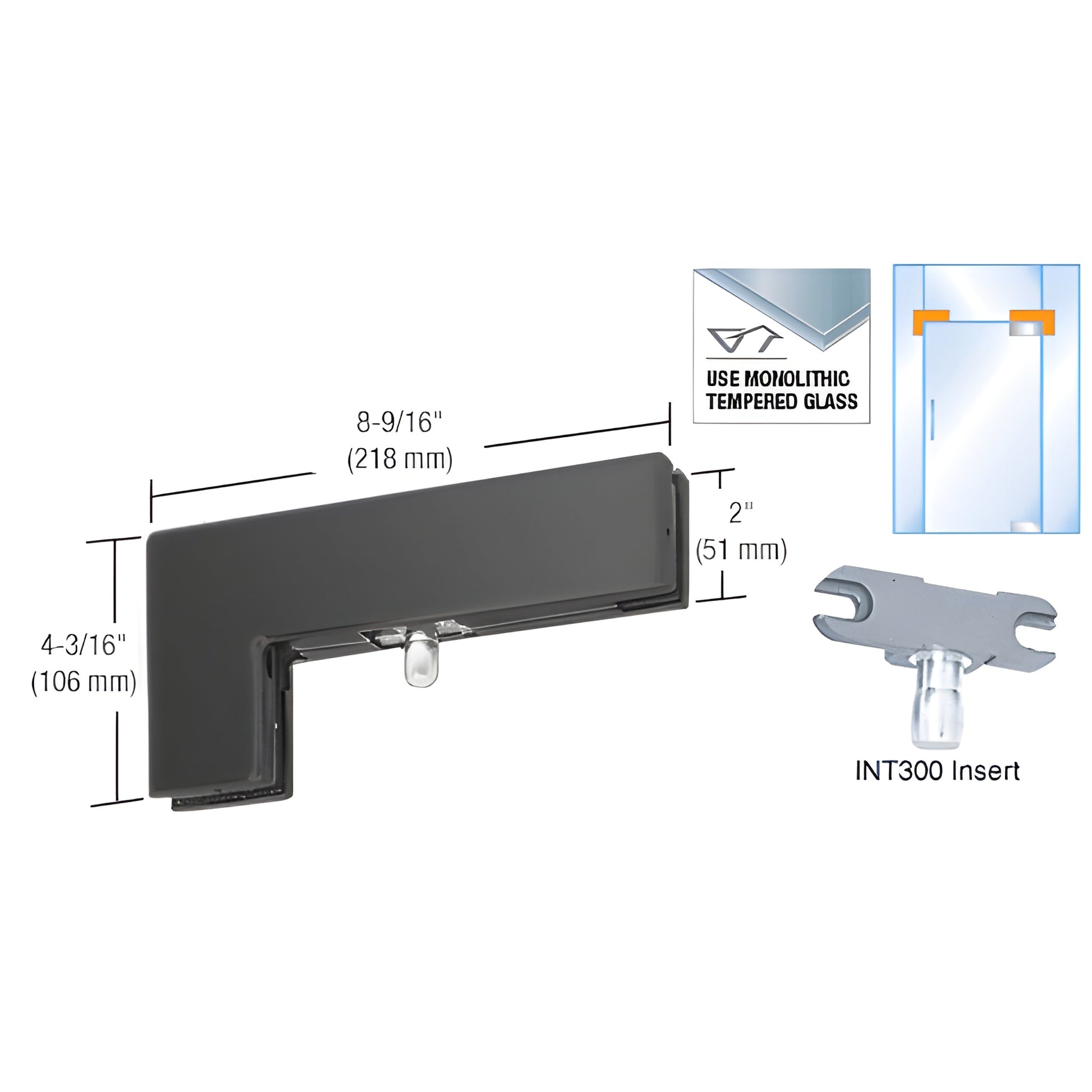

CRL Sidelite Mounted Transom Patch (SKU: PH40MBL) supports a transom from a sidelite glass panel and includes an INT300 insert for mounting with CRL PH20A or PH21A top door patch fittings. The INT300 insert can be relocated to the non-hinged side for double swing doors. Use the INT306 transom patch door stop insert to create a one-way door or install the INT305 keeper insert to work with an AMR205 lock for top-of-door installations. Ideal for frameless glass sidelite transom support and commercial glass door applications.

If the transom weight exceeds 100 lbs. (45.4 kg), provide ceiling support to prevent patch slippage. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings for additional support. For sizing, compatibility, or installation help, contact our Technical Sales Department.

GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) diameter holes and corner notch

COMES WITH:
Template and instructions

Product Warning:

NOTE: These fittings are not for use with laminated glass.

Order PH40MBL or contact Technical Sales for assistance with selection and installation.
