- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The

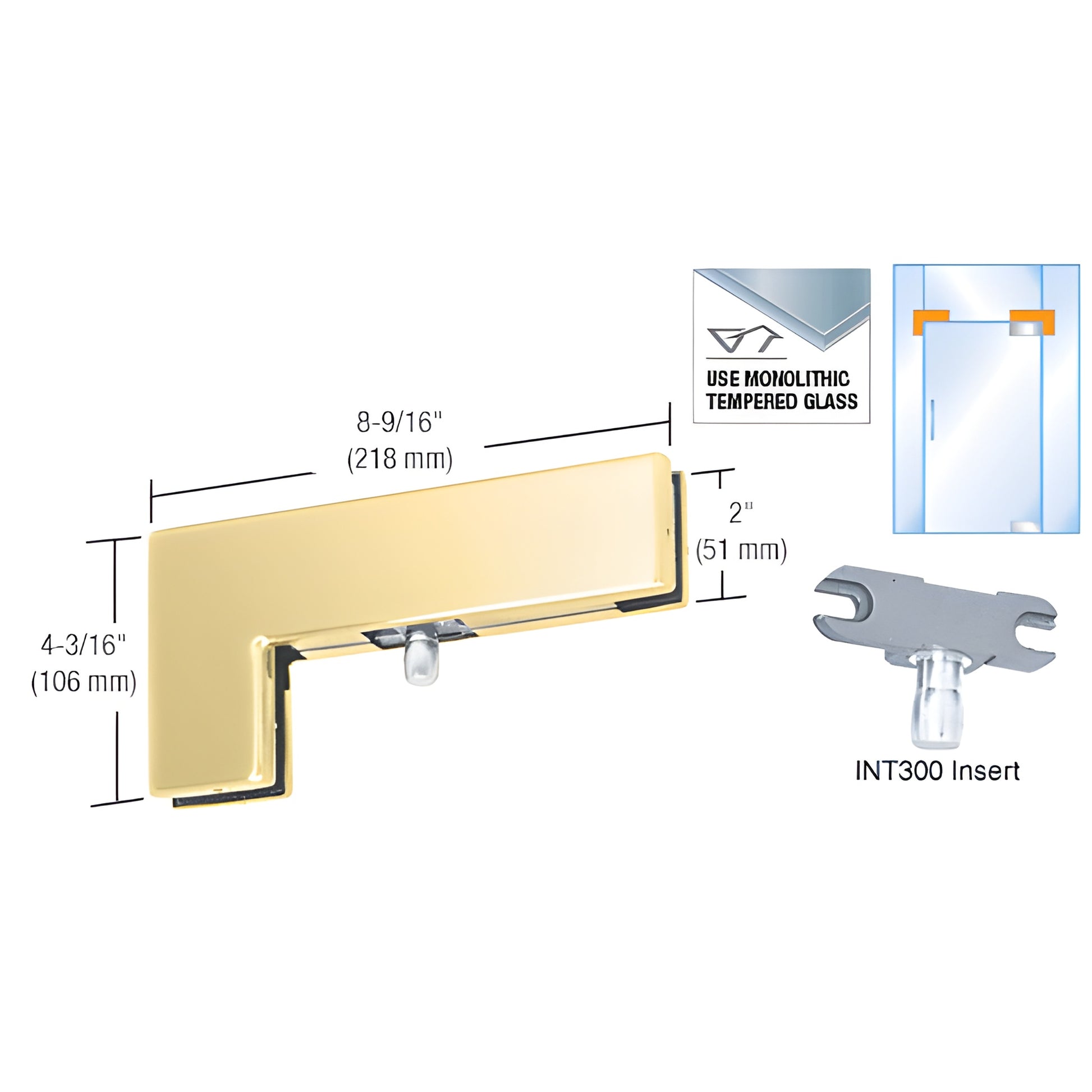

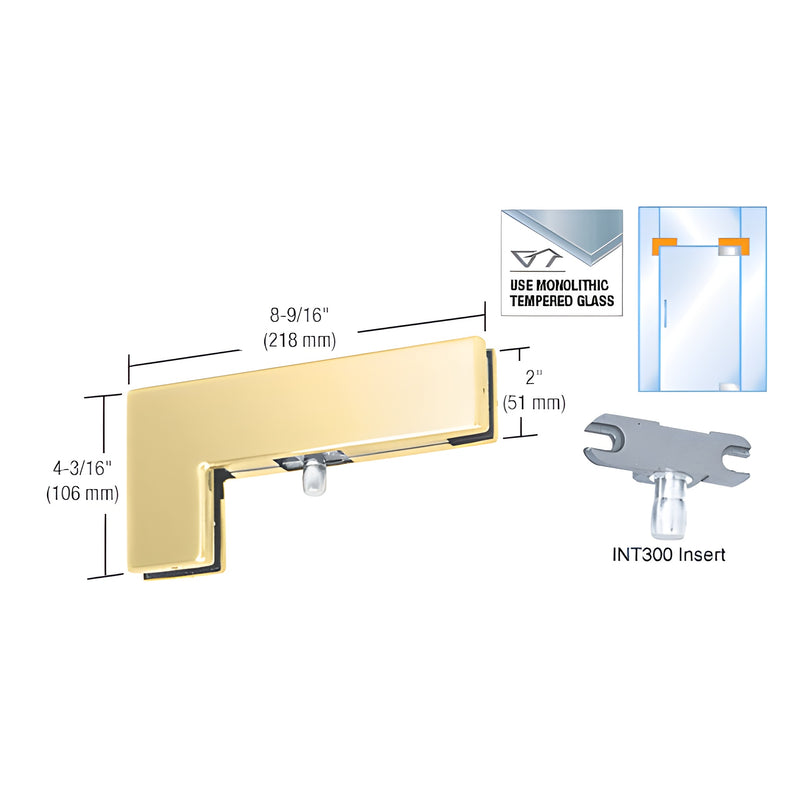

CRL Sidelite Mounted Transom Patch
is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL
PH20A
or
PH21A
Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A
INT306
Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305
Transom Patch Keeper Insert can be installed for use with an
AMR205
Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED
Three 7/8" (25 mm) Diameter
Holes and Corner Notch
COMES WITH
Template and Instructions
Product Warning
NOTE
These fittings are not for use with laminated glass.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
