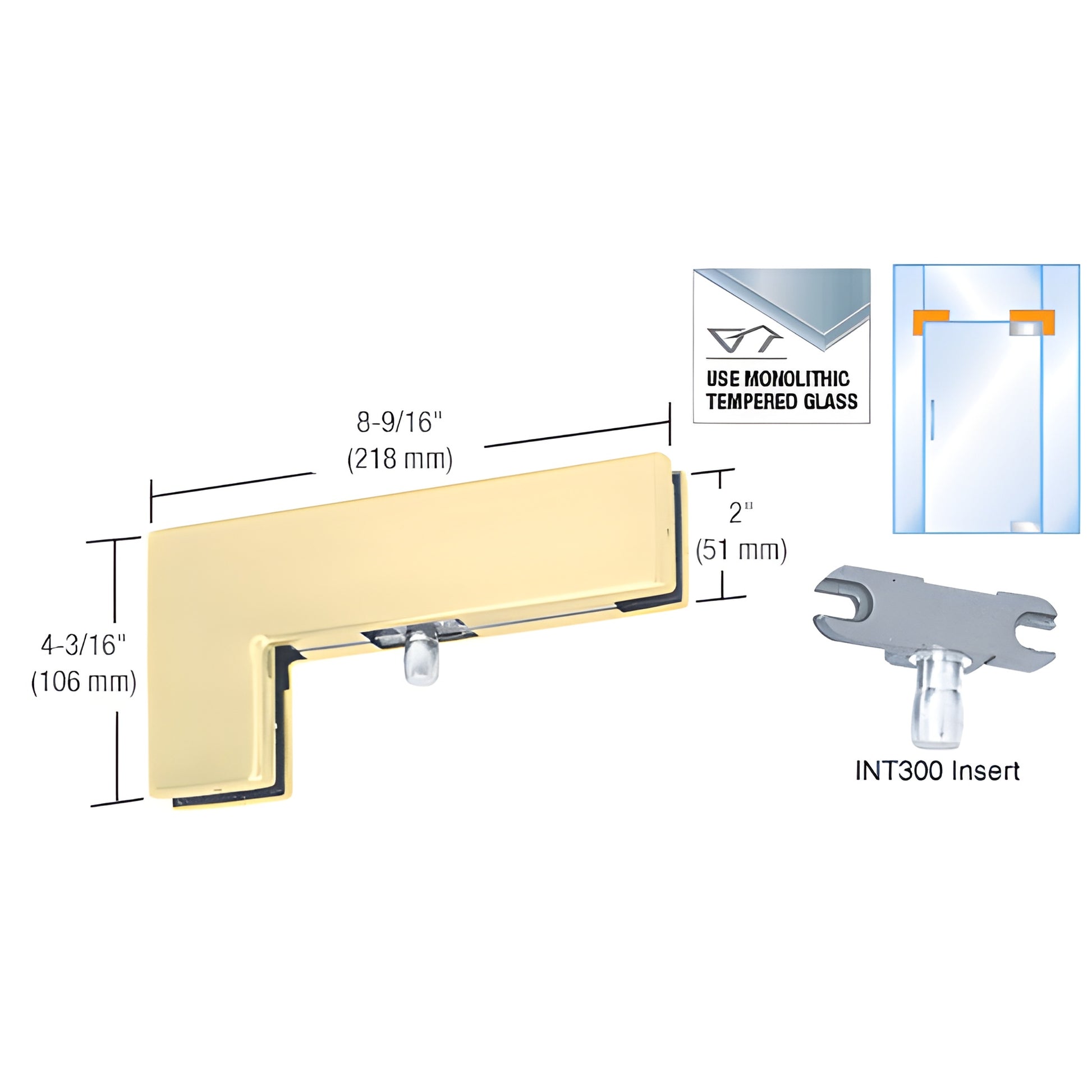

CRL Satin Brass Glass Sidelite/Transom Door Patch with 1NT300 Insert

CRL Satin Brass Glass Sidelite/Transom Door Patch with 1NT300 Insert

$152.76 CAD
$152.76 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH40SB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT300
Mounting Type
Sidelite
With Insert
Yes

Overview

  • Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
  • For 3/8" or 1/2" (10 or 12 mm) glass
  • Use monolithic tempered glass

SKU: PH40SB — CRL Sidelite Mounted Transom Patch
The CRL Sidelite Mounted Transom Patch supports a transom from a sidelite glass panel for tempered glass transom installations. Includes an INT300 insert to mount a door with the CRL PH20A or PH21A top door patch fitting. The insert is reversible to the non-hinged side for double-swing door applications. Use the INT306 Transom Patch Door Stop Insert to create a one-way door, or install the INT305 Transom Patch Keeper Insert with the AMR205 lock for top-of-door lock installations. Ideal for sidelite-mounted transom support in commercial and architectural glass door projects.

If the transom weight exceeds 100 lbs. (45.4 kg), support the transom from the ceiling to prevent patch slippage. Options include Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings. Contact our Technical Sales Department for specification help and installation guidance.

GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) diameter holes and corner notch

COMES WITH:
Template and instructions

Product Warning:

NOTE: These fittings are not for use with laminated glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
