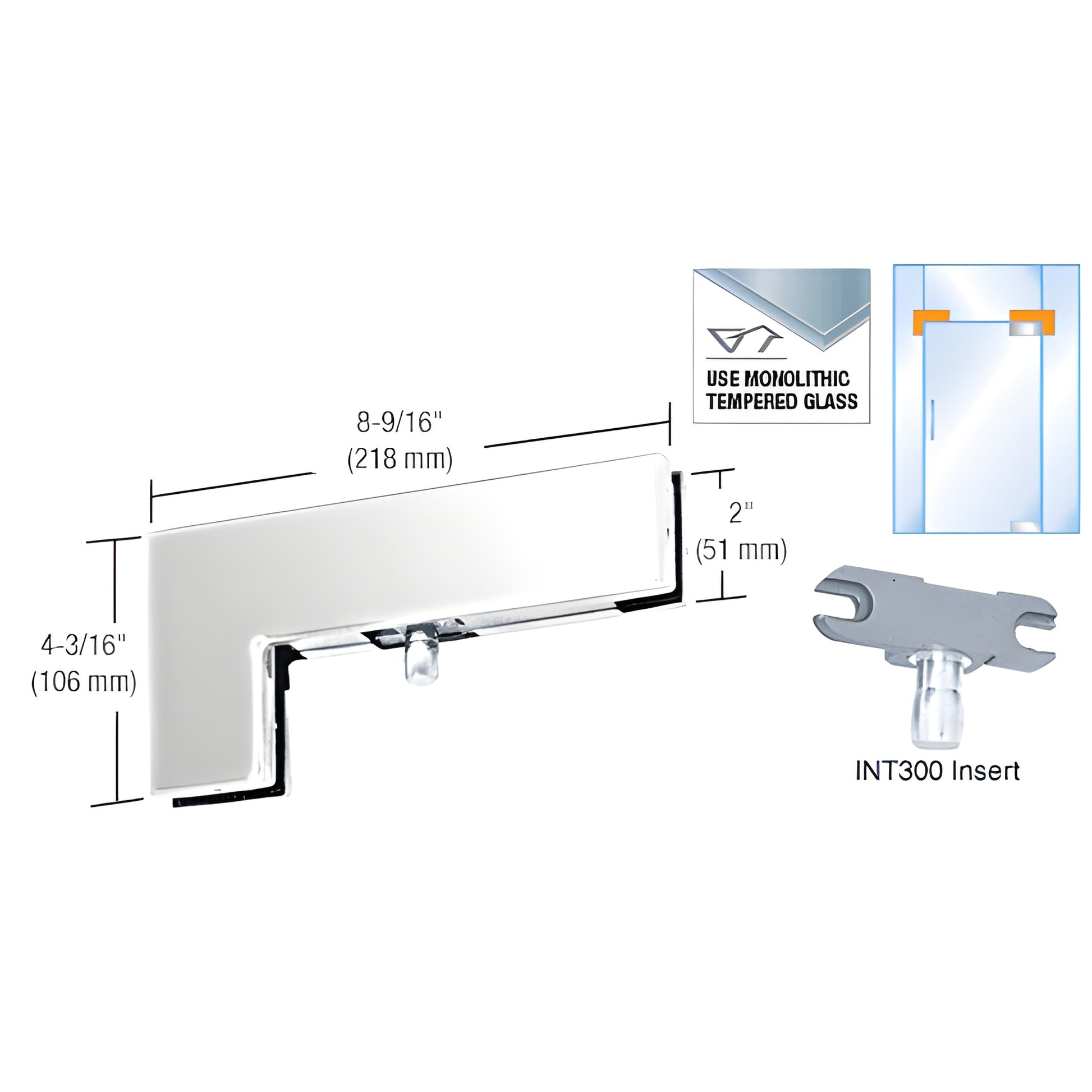

• PH40PS polished stainless sidelite-mounted transom patch with INT300 insert, for 3/8-1/2" tempered glass
1 1

CRL

CRL 1NT300 Polished Stainless Steel Sidelite/Transom Patch Fitting

CRL 1NT300 Polished Stainless Steel Sidelite/Transom Patch Fitting

$137.06 CAD
$137.06 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH40PS
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT300
Mounting Type
Sidelite
With Insert
Yes

Overview

  • Compatible with 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
  • For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • Use monolithic tempered glass only — not for laminated glass

The CRL Sidelite Mounted Transom Patch (SKU: PH40PS) supports a transom from a sidelite glass panel and includes an INT300 insert for mounting a door with the CRL PH20A or PH21A top door patch fitting. The insert can be moved to the non-hinged side for double-swing door applications. Add an INT306 transom patch door stop insert to create a one-way door, or install an INT305 keeper insert for use with the AMR205 lock in top-of-door installations. These features make the PH40PS ideal for frameless glass transom and sidelite systems where reliable transom support and flexible door configurations are required.


If the transom weight exceeds 100 lbs. (45.4 kg), the transom must be supported from the ceiling to prevent patch slippage. Use Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings for additional support. Contact our Technical Sales Department for application assistance.

GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) diameter holes and corner notch

COMES WITH:
Template and instructions


Product Warning:

NOTE: These fittings are not for use with laminated glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this information prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
