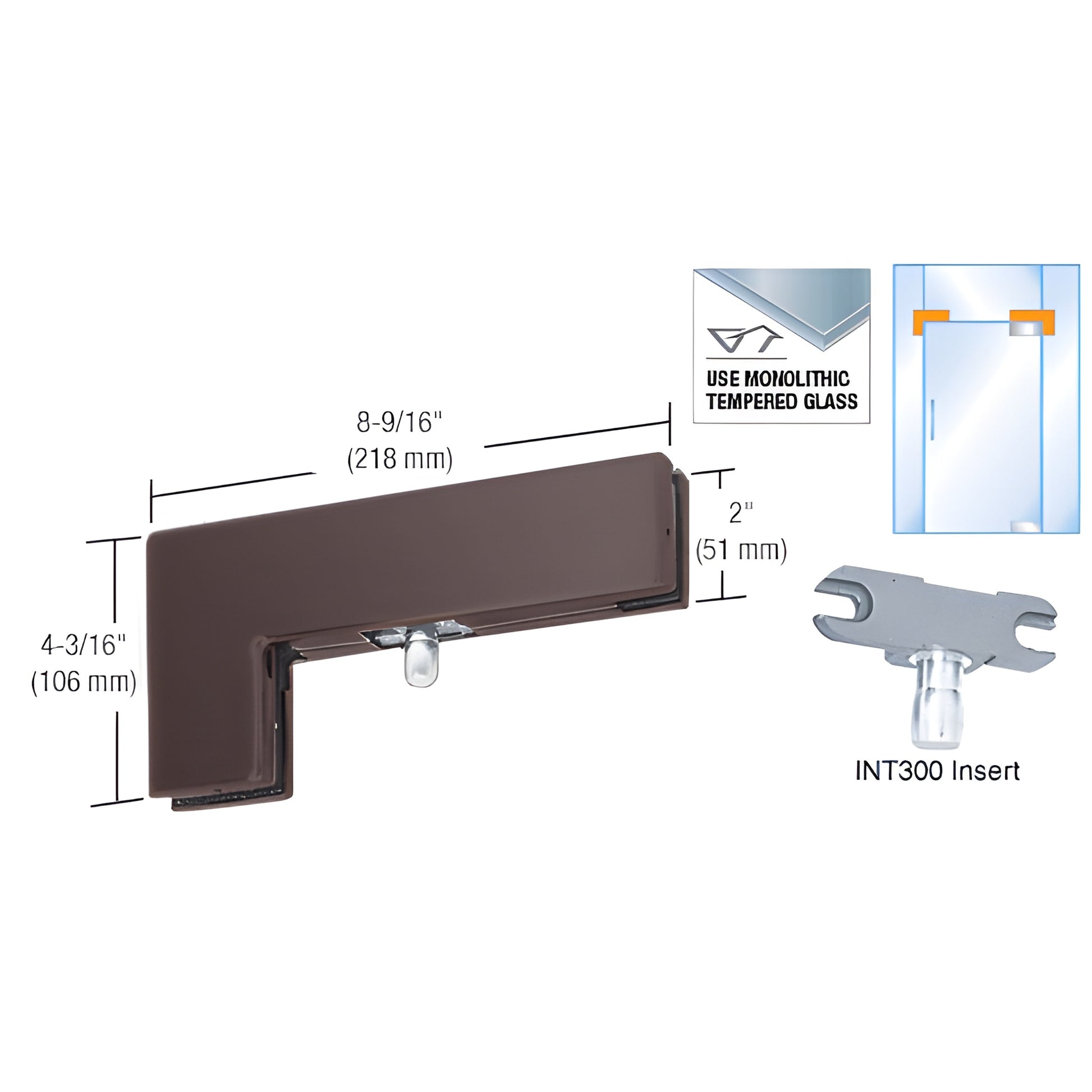

CRL Dark Bronze Sidelite Transom Patch Fitting with 1NT300 Insert

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Designed for sidelite mounted transom support on glass doors

The CRL Sidelite Mounted Transom Patch (SKU: PH40DU) supports a transom from a sidelite glass panel and includes an INT300 Insert for mounting with the CRL PH20A or PH21A top door patch fitting. The insert can be positioned on the non-hinged side to enable a double-swing door. Use an INT306 Transom Patch Door Stop Insert to create a one-way door, or install an INT305 Transom Patch Keeper Insert for compatibility with an AMR205 lock on the top of the door.


If the transom weight exceeds 100 lbs. (45.4 kg), provide ceiling support to prevent patch slippage. For heavy transoms use Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings. Contact our Technical Sales Department for application assistance.

GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) diameter holes and corner notch

COMES WITH:
Template and instructions


Product Warning:

NOTE: Not for use with laminated glass.
