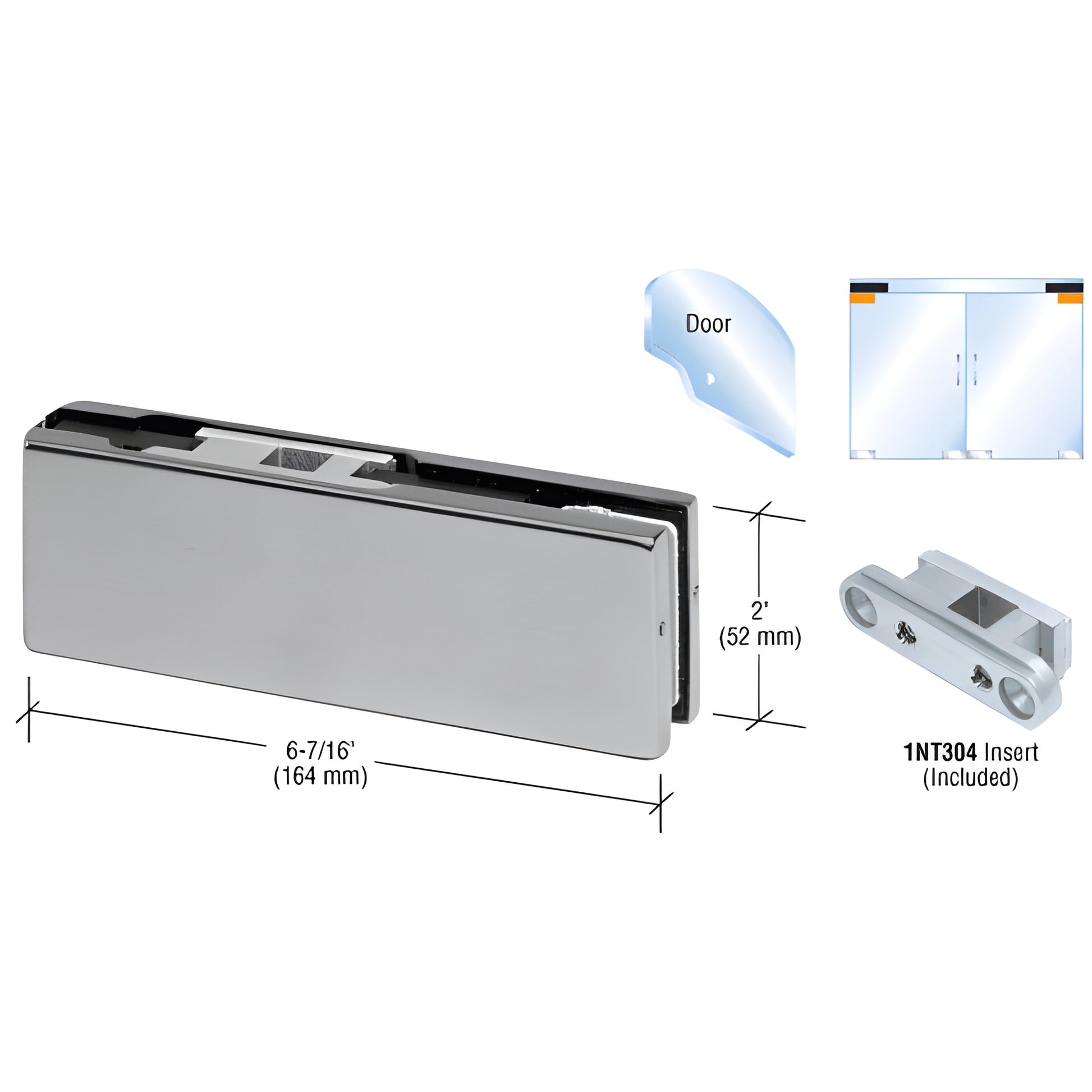

CRL Brushed Stainless Top Patch Fitting for Glass Door with 1NT304
Item# PH20BBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- 2-3/4" (70 mm) pivot setback
- For use with overhead concealed door closers (9/16" square, 3/4" spindle)
- Use monolithic tempered glass — not for laminated glass
The CRL Top Door Patch Fitting (SKU: PH20BBS) includes the 1NT304 insert for use with our Overhead Concealed Door Closers. Finished covers are available in five standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass.
Glass fabrication required: One 3/4" (19 mm) diameter hole and corner notch.
Product warning:
These fittings are not for use with laminated glass.
Guidelines for 1/2" glass doors using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before submitting your order. Product images represent the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need help selecting the right patch fitting for your glass door? Contact CRL Customer Service or view compatible parts and finishes on this product page.
CAD Drawings - pdf
