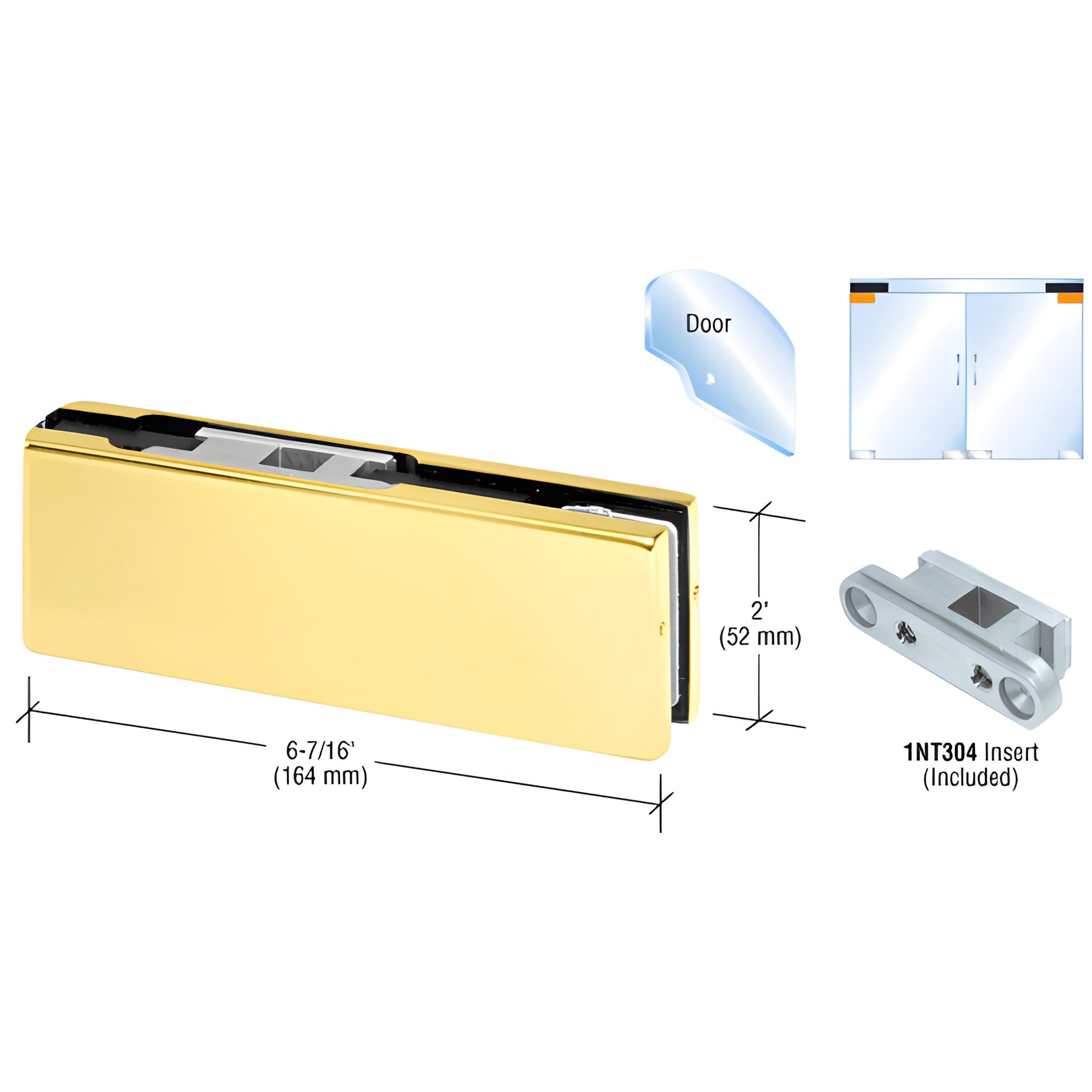

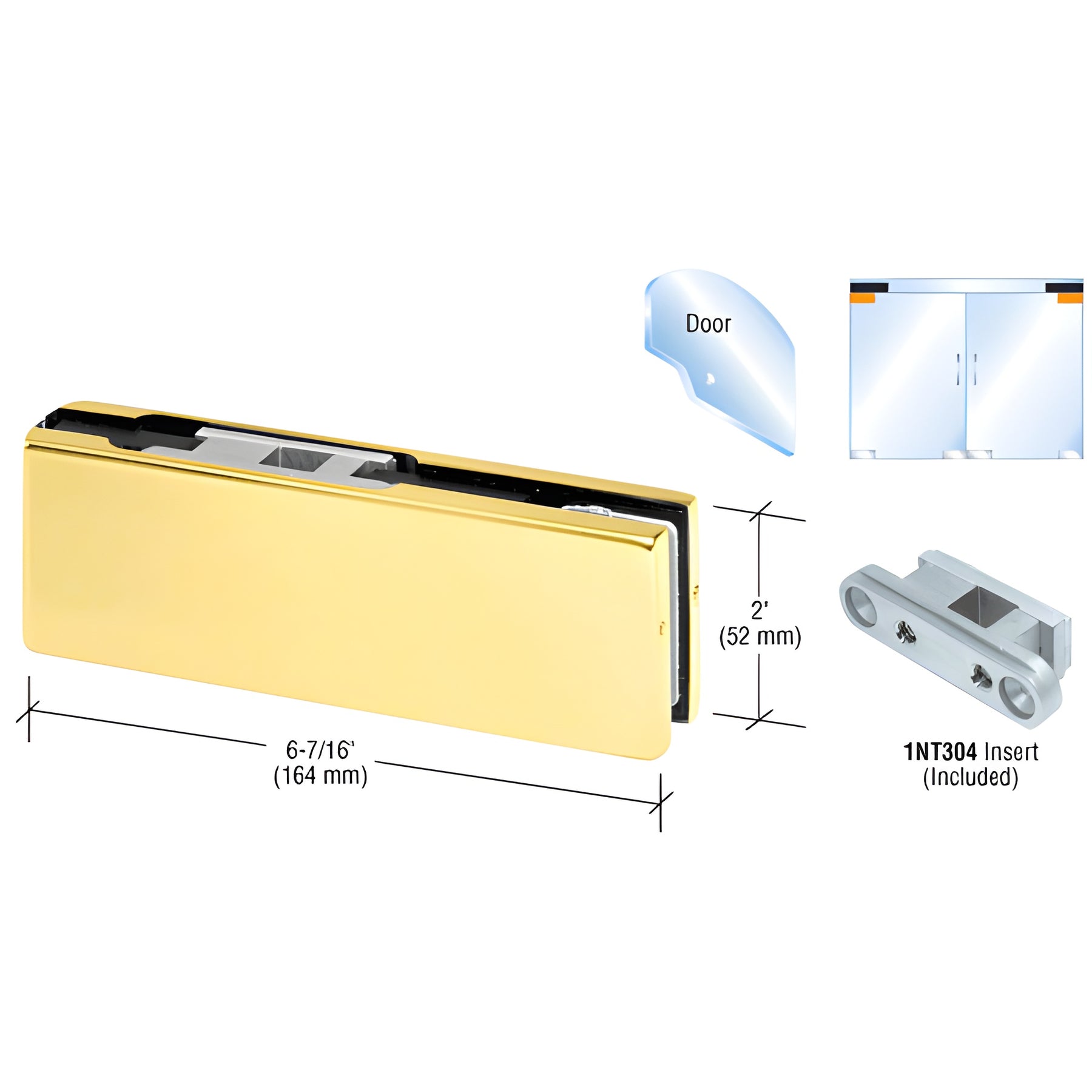

CRL Satin Brass Top Door Patch Fitting with 1NT304 Insert
Item # PH20BSB
$401.70
CAD
Finish (7)
Overview
| SKU | PH20BSB |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Satin Brass |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height | 2 in. (51 mm) |
| Insert Type | 1NT304 |
| Length | 6-7/16 in. (164 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With Insert | Yes |
Description
- For 3/8" or 1/2" (10 or 12 mm) Glass
- 2-3/4" (70 mm) Pivot Setback
- For Use with Overhead Concealed Door Closers
- Use Monolithic Tempered Glass
The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
Installation Instructions
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
