CRL Dark Bronze Top Patch Fitting for Glass Door w/ 1NT304 Insert
Item# PH20BDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes
- For 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass
- 2-3/4" (70 mm) pivot setback
- For use with overhead concealed door closers
- Includes gaskets for 3/8" or 1/2" glass; not for laminated glass

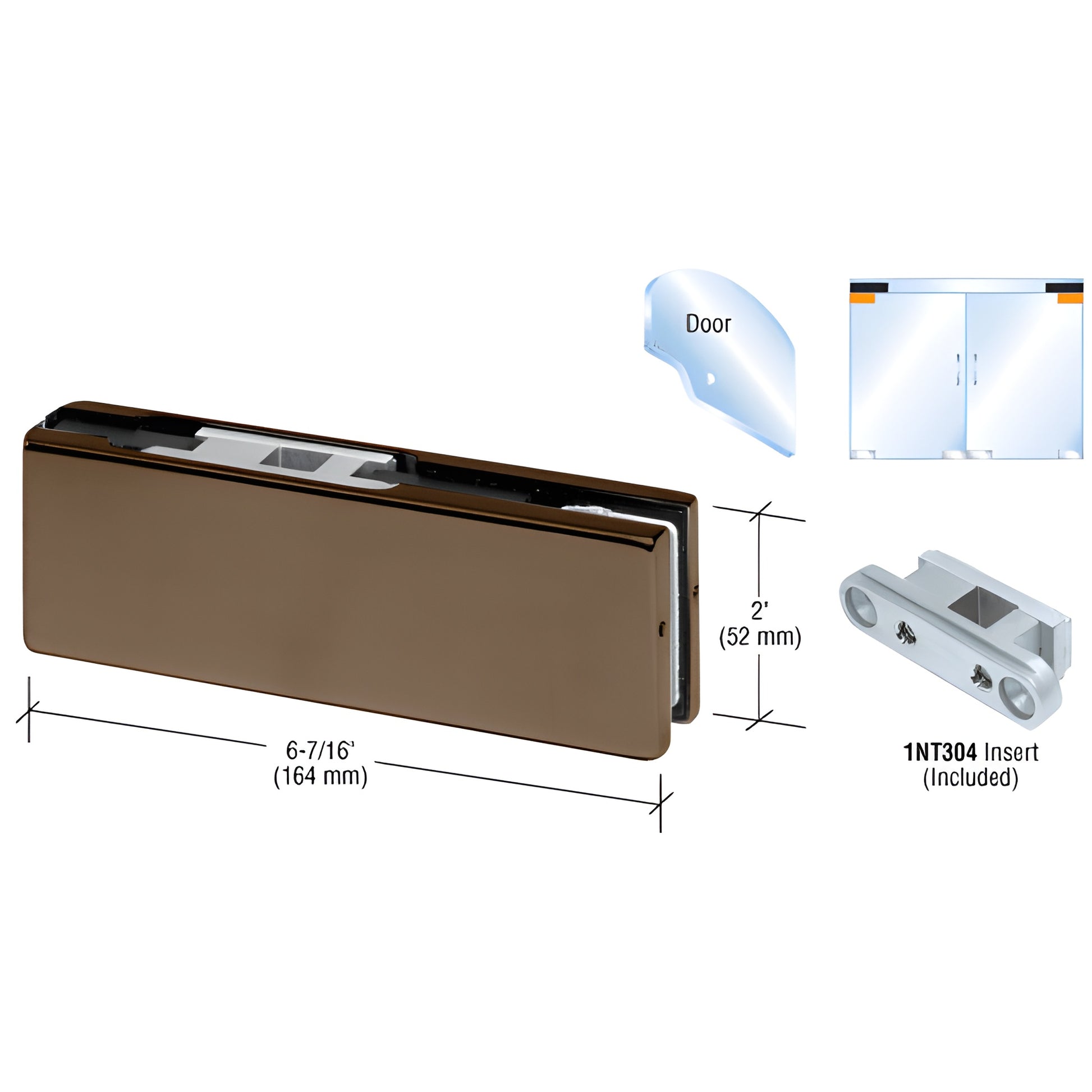

The CRL Top Door Patch Fitting (SKU: PH20BDU) includes the 1NT304 insert for use with our Overhead Concealed Door Closers that require a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied so the patch fitting fits either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with laminated glass.
Guidelines for 1/2" glass doors using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor.
Shop the CRL Top Door Patch Fitting PH20BDU—compatible with overhead concealed door closers and available in five finishes. Contact CRL for ordering and installation assistance.
