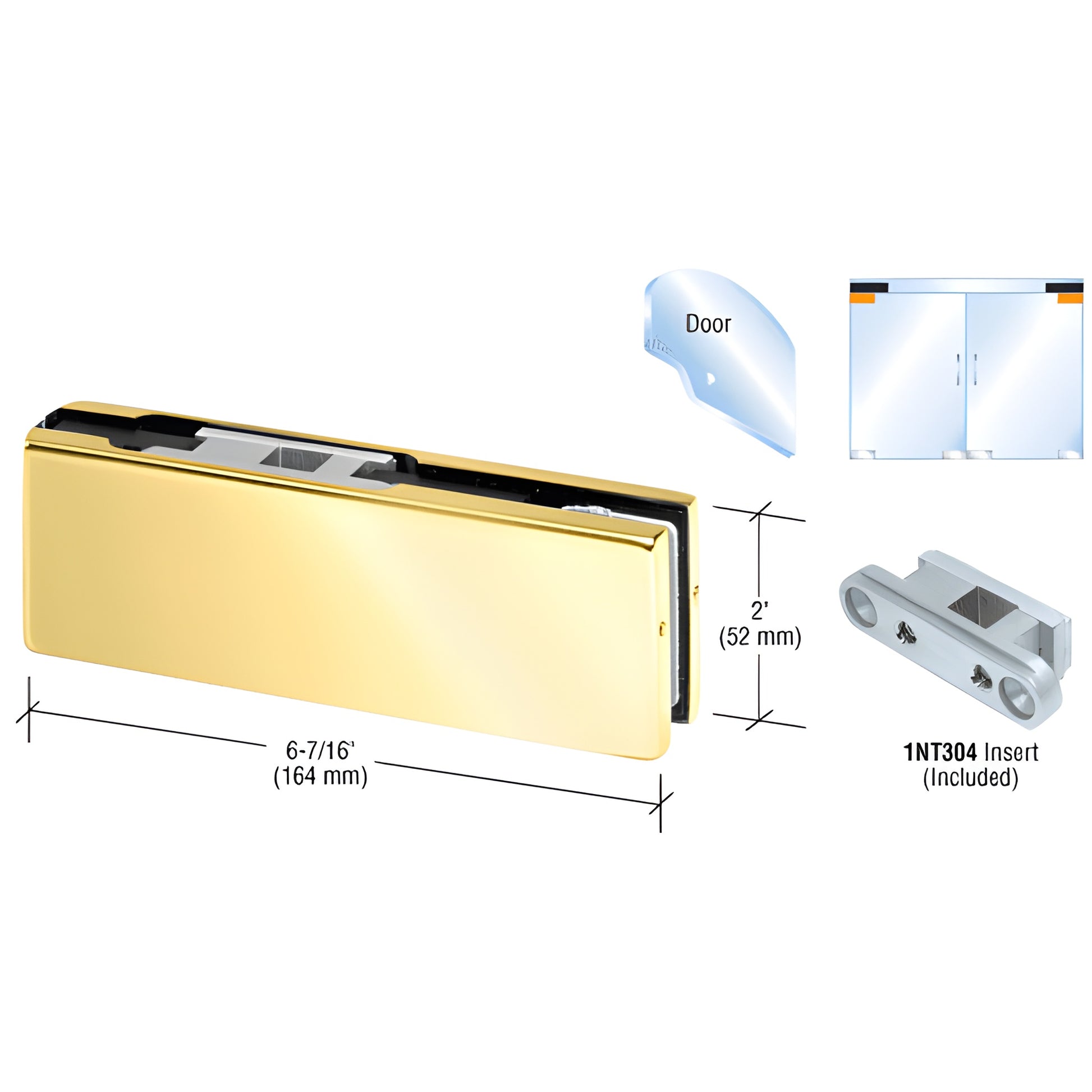

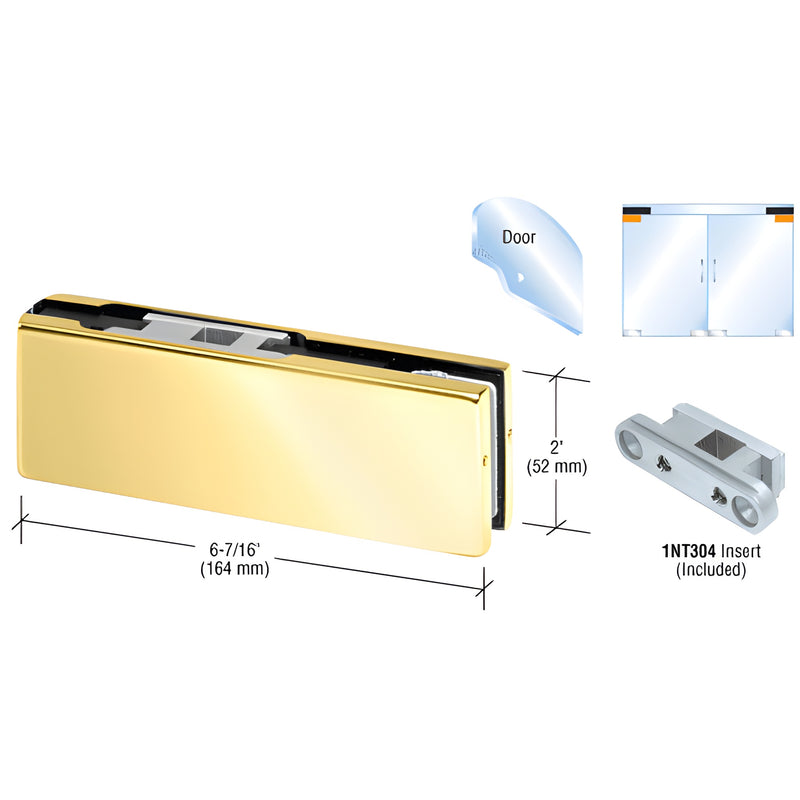

• PH20BBR polished brass top door patch fitting for 3/8-1/2 glass, includes 1NT304 insert, 6 7/16 2 .
1 1

CRL

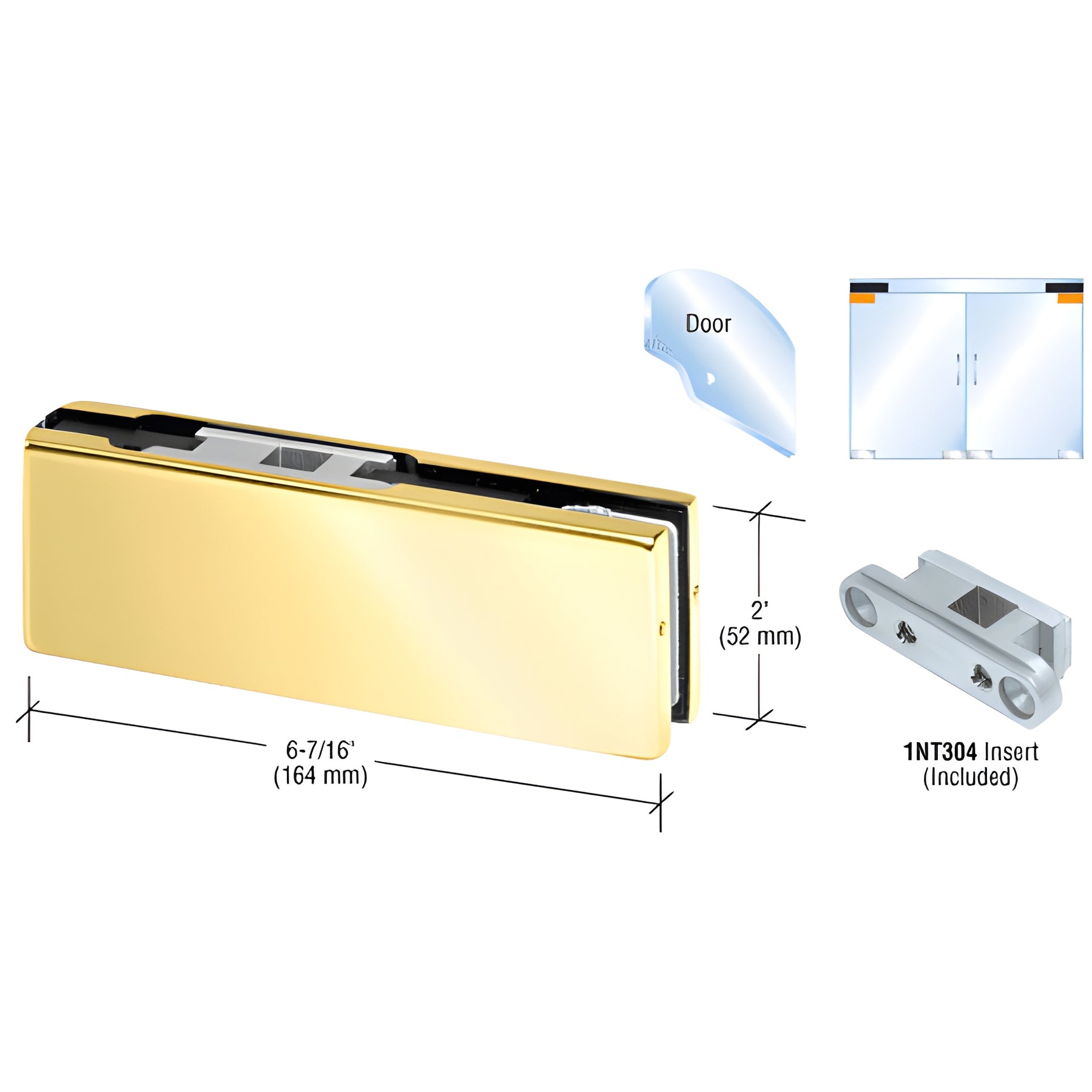

CRL Brass Top Patch Fitting for Frameless Glass Door 1NT304 Insert

CRL Brass Top Patch Fitting for Frameless Glass Door 1NT304 Insert

$127.06 CAD
$127.06 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH20BBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes

Overview

  • For 3/8" or 1/2" (10 or 12 mm) glass
  • 2-3/4" (70 mm) pivot setback
  • For use with overhead concealed door closers
  • Use monolithic tempered glass

The CRL Top Door Patch Fitting (SKU: PH20BBR) includes the 1NT304 insert for use with our overhead concealed door closers that accept a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied to accommodate either 3/8" or 1/2" (10 or 12 mm) glass, providing a secure seal for frameless glass doors and glass storefront applications.

Glass fabrication required: One 3/4" (19 mm) diameter hole and a corner notch.

Product warning:
These fittings are not for use with laminated glass.

Use the following guidelines when fabricating a 1/2" glass door with this hardware:
  • Maximum height: 102" (2.59 m)
  • Maximum weight: 194 lbs (80 kg)
  • Maximum width: 42" (1.09 m)
If the door exceeds any of these limitations, specify full door rails.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to submitting your order. Product images shown are of the actual product or a close representation; colors may vary by monitor.

Brass finish advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References section for care and maintenance.


For pricing, availability, or technical assistance with the PH20BBR top door patch fitting for overhead concealed closers, contact CRL Customer Service or add to cart now.
