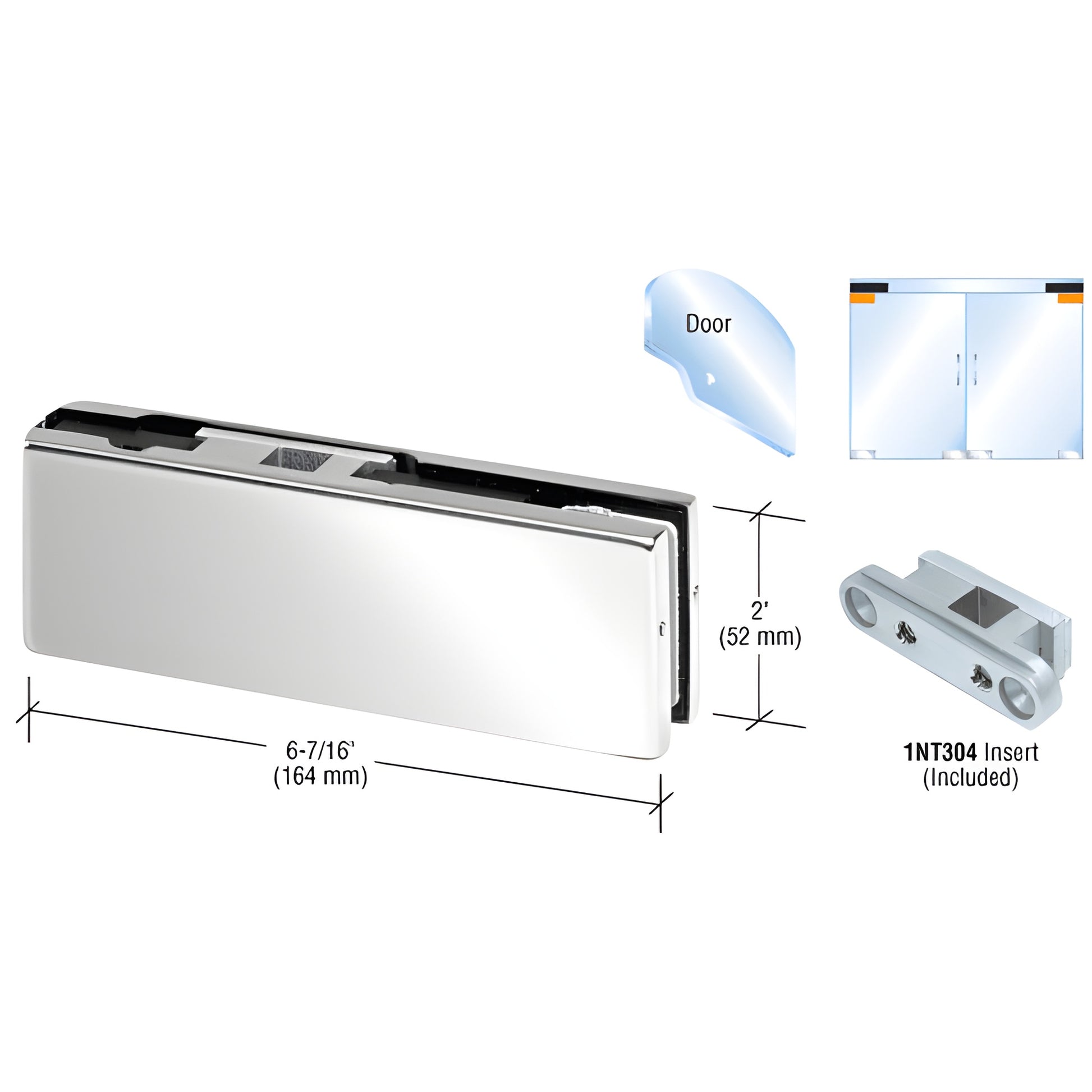

CRL Polished Stainless Top Door Patch Fitting with 1NT304 Insert
CRL Polished Stainless Top Door Patch Fitting with 1NT304 Insert
Regular price
$114.51 CAD
Regular price
Sale price
$114.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20BPS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT304 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Door Patch Fitting is specifically designed for 3/8" or 1/2" (10 or 12 mm) glass and features a 2-3/4" (70 mm) pivot setback, making it ideal for use with overhead concealed door closers.
Compatible with monolithic tempered glass, this patch fitting includes the 1NT304 insert and comes with gaskets for seamless installation.
Finished covers are offered in five standard finishes, while the product requires glass fabrication involving a 3/4" (19 mm) diameter hole and a corner notch.
Note that these fittings are not suitable for laminated glass, and for doors exceeding 102" in height, 194 lbs.
in weight, or 42" in width, full door rails are recommended.
For precise shipping weights or further inquiries, please contact CRL Customer Service.
Additionally, regular maintenance is advised for stainless steel components to preserve their factory finish.
Compatible with monolithic tempered glass, this patch fitting includes the 1NT304 insert and comes with gaskets for seamless installation.
Finished covers are offered in five standard finishes, while the product requires glass fabrication involving a 3/4" (19 mm) diameter hole and a corner notch.
Note that these fittings are not suitable for laminated glass, and for doors exceeding 102" in height, 194 lbs.
in weight, or 42" in width, full door rails are recommended.
For precise shipping weights or further inquiries, please contact CRL Customer Service.
Additionally, regular maintenance is advised for stainless steel components to preserve their factory finish.
Specifications
Installation Instructions
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
