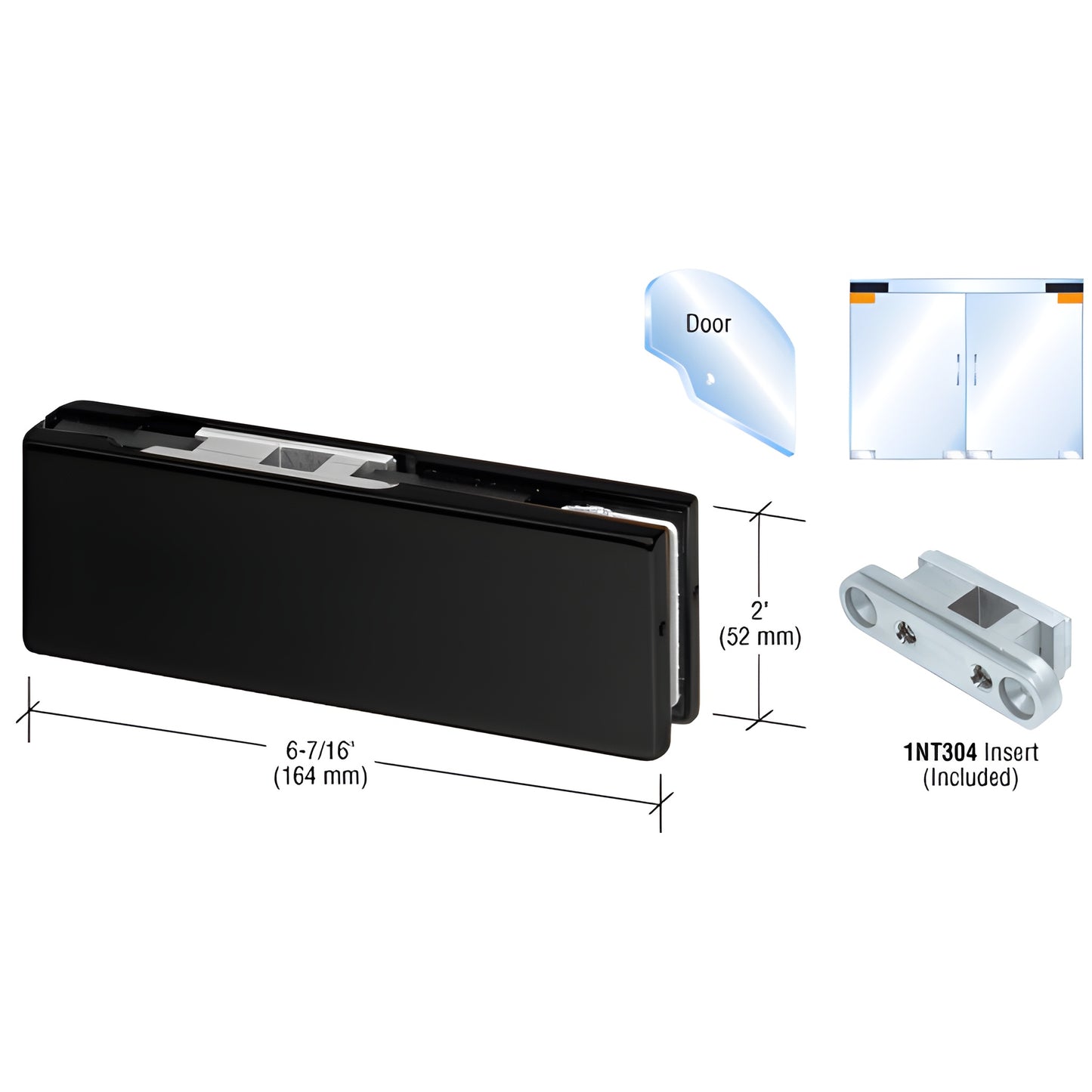

• PH20BMBL matte black top door patch fitting for 3/8-1/2" glass with 1NT304 insert, 6-7/16" long
1 1

CRL

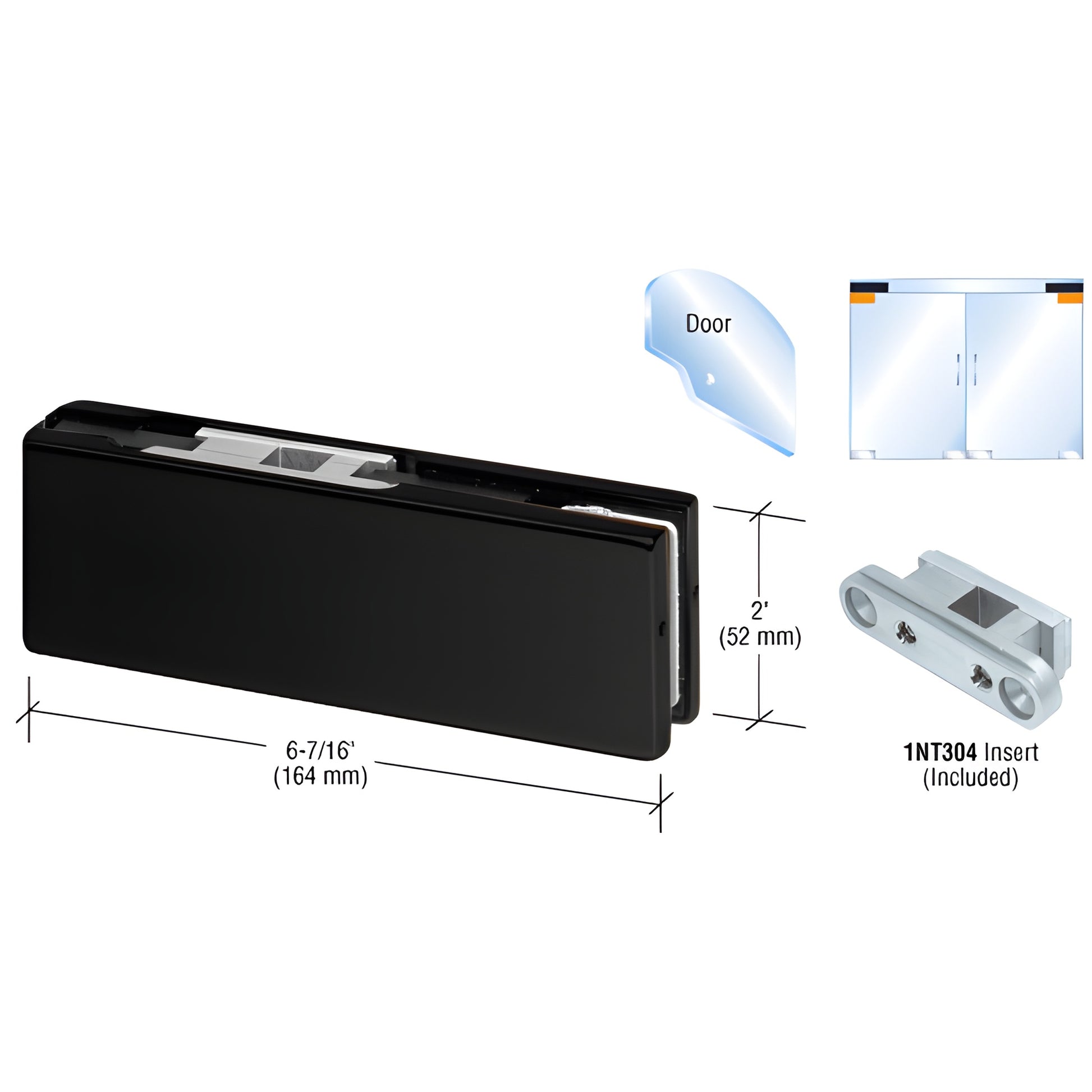

CRL Matte Black Top Patch Fitting for Frameless Glass w/1NT304 Insert

CRL Matte Black Top Patch Fitting for Frameless Glass w/1NT304 Insert

$107.07 CAD
$107.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH20BMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes

Overview

  • For 3/8" or 1/2" (10 or 12 mm) glass
  • 2-3/4" (70 mm) pivot setback
  • Designed for use with overhead concealed door closers
  • Use with monolithic tempered glass only

The CRL Top Door Patch Fitting (SKU: PH20BMBL) includes the 1NT304 insert for compatibility with CRL overhead concealed door closers featuring a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Supplied gaskets accommodate either 3/8" or 1/2" (10 or 12 mm) glass, enabling quick installation on frameless glass doors.


Glass fabrication required: one 3/4" (19 mm) diameter hole and a corner notch.


Product warning: Not for use with laminated glass.


When using this hardware on 1/2" glass doors, follow these limits:

  • Maximum height: 102" (2.59 m)
  • Maximum weight: 194 lbs (80 kg)
  • Maximum width: 42" (1.09 m)

If the door exceeds any of these limitations, install full door rails.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor.

Order the PH20BMBL Top Door Patch Fitting today to complete your frameless glass door installation.
