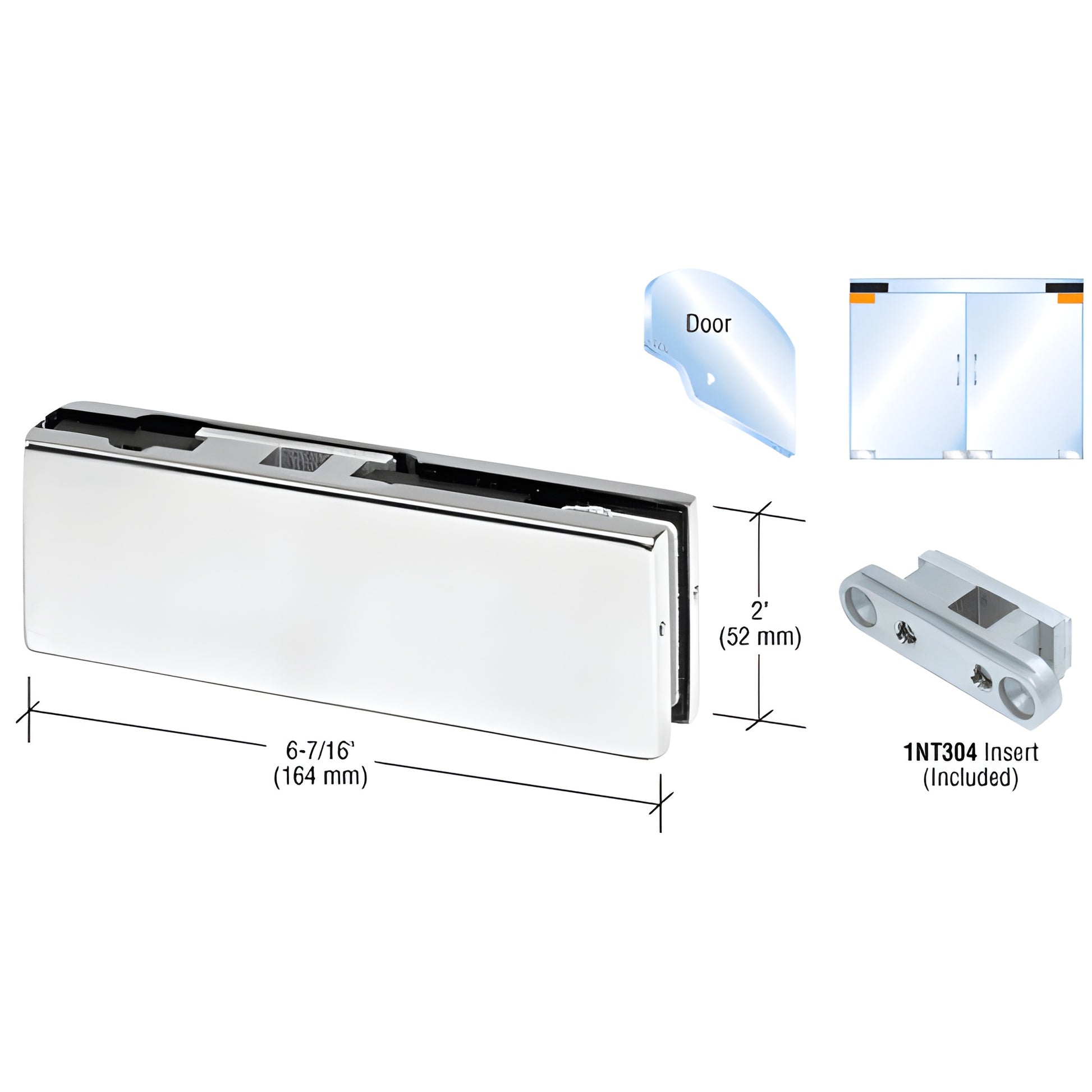

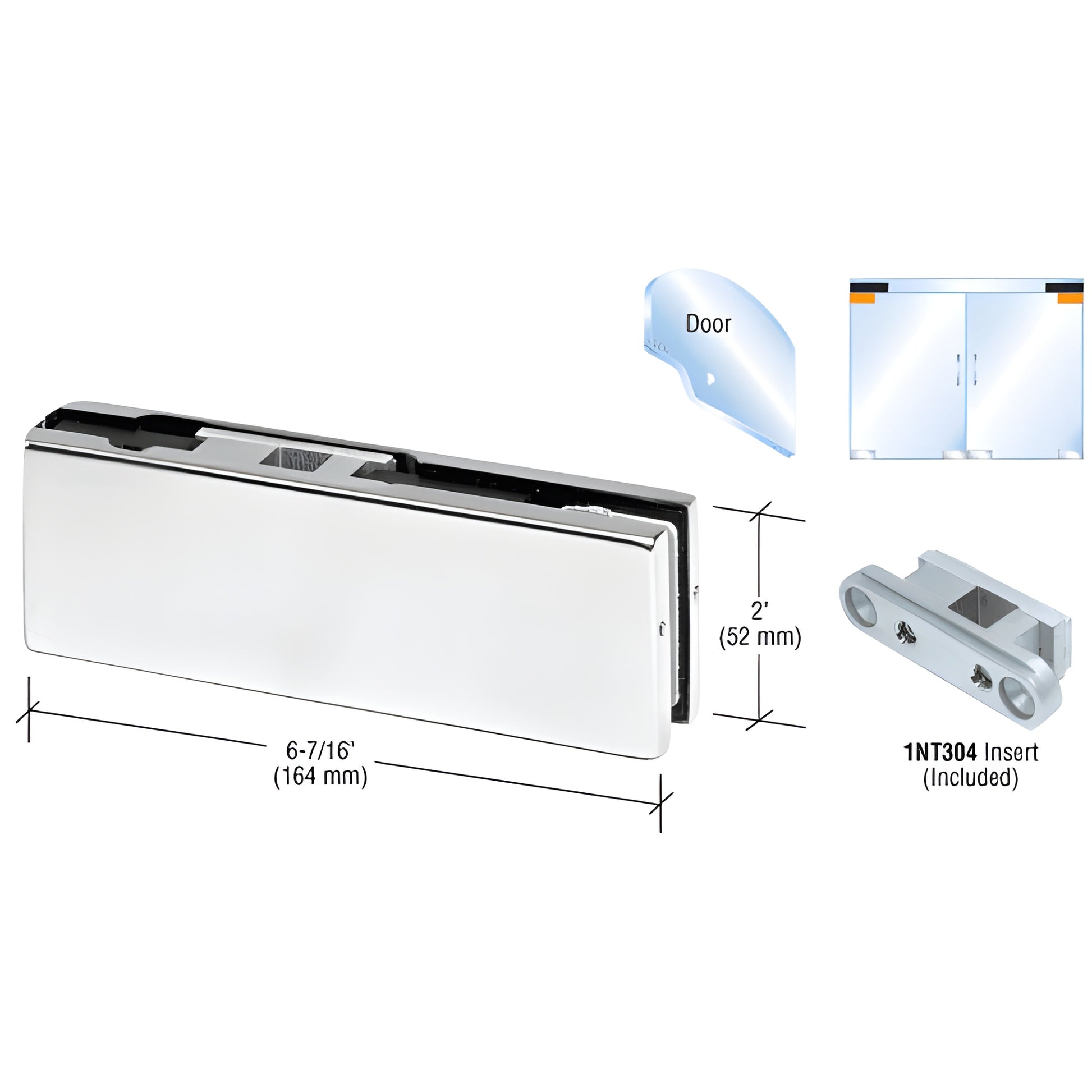

• PH20BA satin anodized top door patch fitting for 3/8-1/2 in glass, includes 1NT304 insert, 6-7/16 in x 2 in
1 1

CRL

CRL Satin Anodized Top Patch Fitting for Frameless Glass Door 1NT304

CRL Satin Anodized Top Patch Fitting for Frameless Glass Door 1NT304

$102.79 CAD
$102.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH20BA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes

Overview

  • For 3/8" or 1/2" (10 or 12 mm) glass (monolithic tempered)
  • 2-3/4" (70 mm) pivot setback
  • For use with overhead concealed door closers
  • Use monolithic tempered glass — not for laminated glass

The CRL Top Door Patch Fitting (SKU: PH20BA) includes the 1NT304 insert for use with our overhead concealed door closers that have a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied to accommodate either 3/8" or 1/2" (10 or 12 mm) glass.

Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch.

Product warning:

These fittings are not for use with laminated glass.

When using this patch fitting on a 1/2" glass door, follow these hardware limits:

Maximum height: 102" (2.59 m)
Maximum weight: 194 lbs. (80 kg)
Maximum width: 42" (1.09 m)

If the door exceeds any of these limits, specify full door rails.

Most shipping weights are approximate and have not been verified. If exact weight (for shipping cost calculation) is required to complete your order, please request it prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.


For a top patch fitting engineered for concealed overhead closers and monolithic tempered glass doors, add the CRL Top Door Patch Fitting (PH20BA) to your project — order or request a quote today.
