CRL Z-Series Brushed Stainless Glass Clamp for 3/8 in, 2 in Radius

• For 3/8" (10 mm) tempered monolithic glass
• Use on mezzanines, partitions, railings and windbreaks
• Radius base design fits 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Steel pin included for optional additional glass support (requires notch)
• Custom painted finishes available upon request

Our CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z310BS) are engineered for 3/8" (10 mm) tempered monolithic glass and are offered in zinc or stainless steel. These radius-base glass clamps provide a clean, secure solution for glass partitions, handrail glazing, mezzanine guards and exterior windbreaks. Ideal long-tail keywords: glass clamp for 3/8 inch tempered glass, radius base glass clamp for round tubing, round tube glass clamp for railings.

For attaching the Z-clamp to thin-wall tubing (< 1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole and install the Rivet-Nut with the 34604 Heavy-Duty Thread Insert tool using the 34618 5/16" mandrel and nosepiece.

Note: A 1/2" (12 mm) notch is required when using the included steel pin for additional glass support. Replacement gaskets: CRL Z38RG.

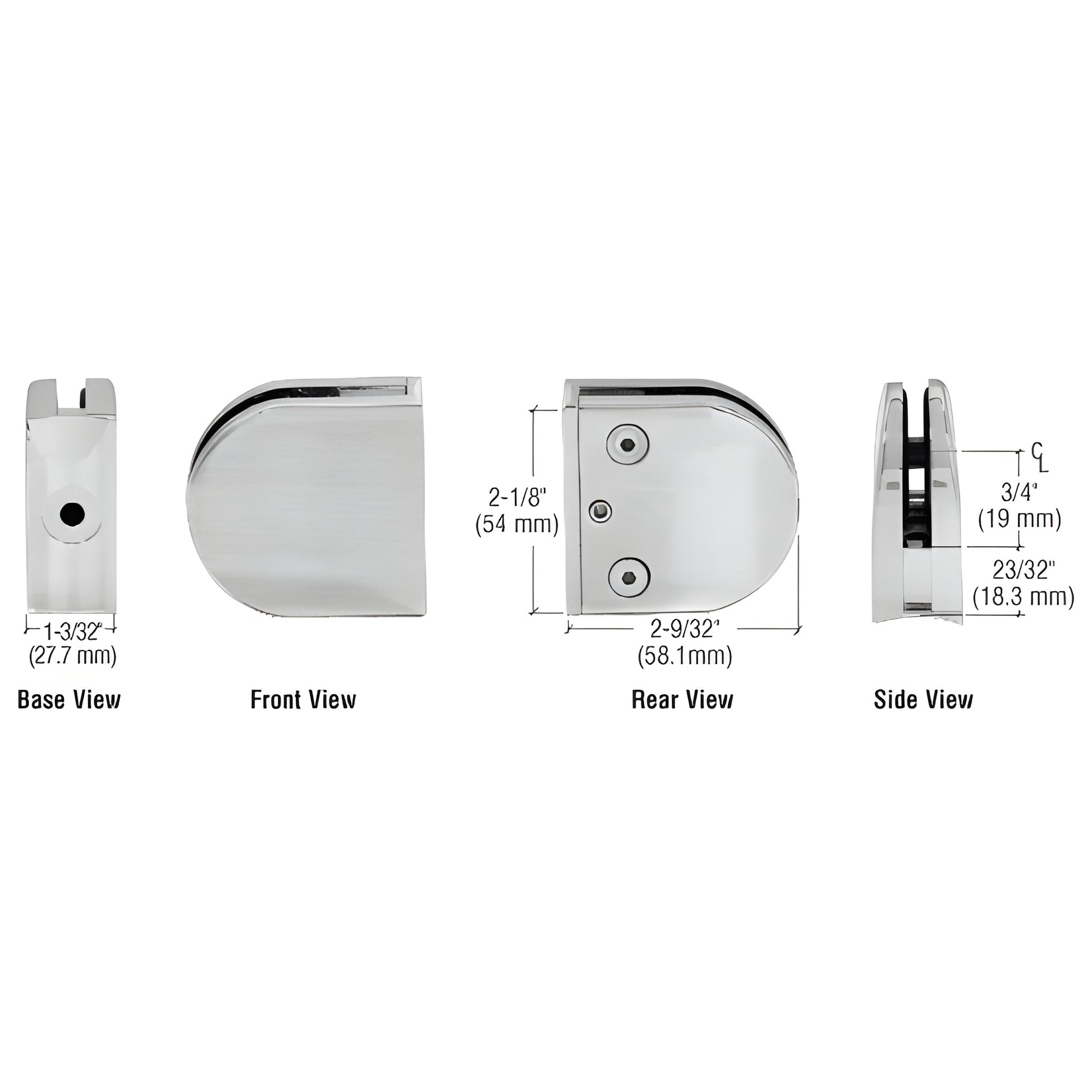

Specifications
Glass Thickness: 3/8" (10 mm) — designed for monolithic tempered glass.
Base Design: Radius
Compatible Tubing: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
Material: Zinc or Stainless Steel. Stainless steel or powder-painted zinc recommended for exterior durability.
Glass Fabrication Notes: For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) notch required when using the steel pin. For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required when using the steel pin.
Includes: Rubber gaskets and steel pin (with grommet).
Replacement Hardware: CRL ZCS5X15SS replacement screws.

Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel when the bottom edge is not supported to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
