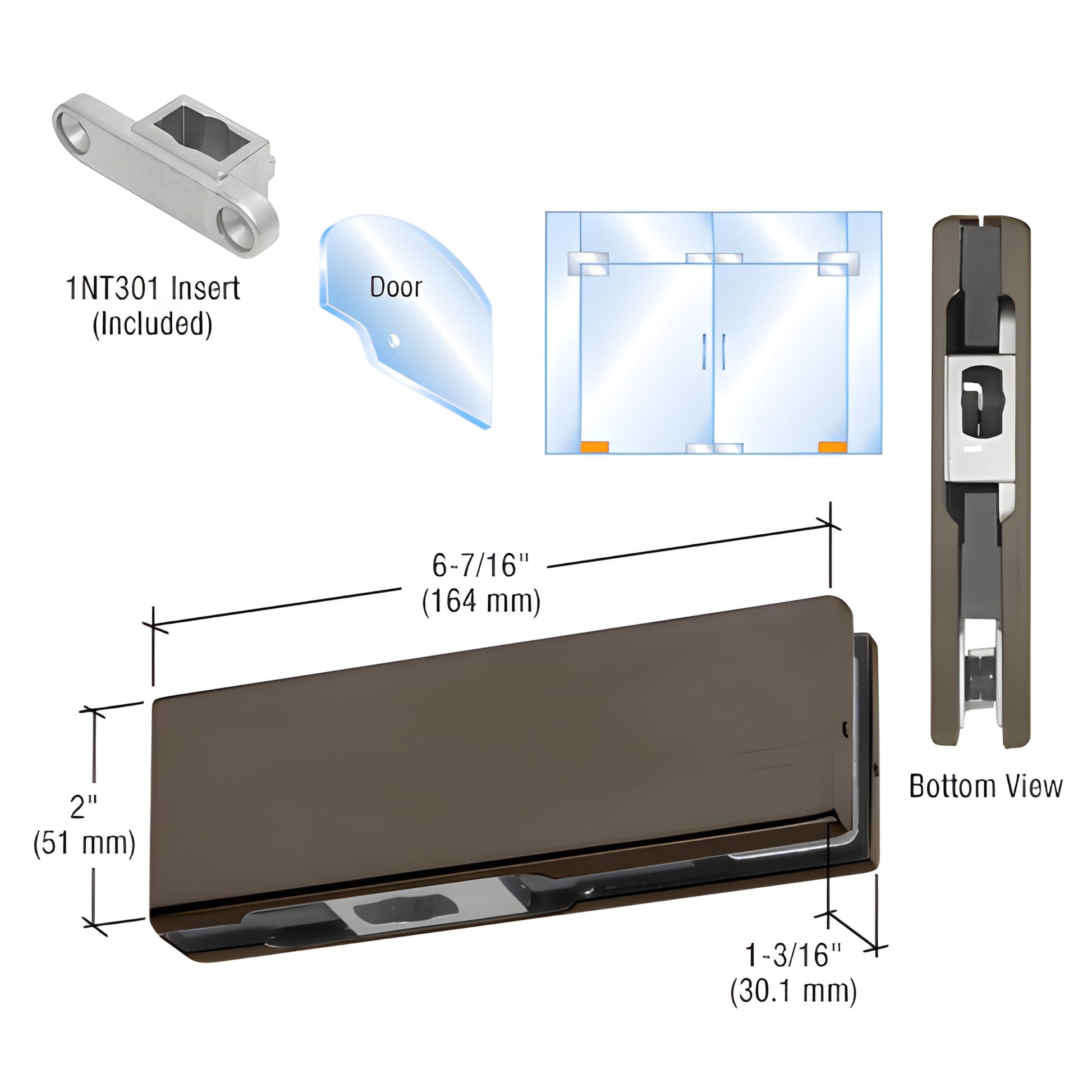

• PH10CDU black bronze bottom gate patch fitting for 3/8-1/2" tempered glass, includes 1NT301 insert; dimensions and bottom vie
1 1

CRL

CRL 1NT301 Dark Bronze Bottom Patch for Glass Doors

CRL 1NT301 Dark Bronze Bottom Patch for Glass Doors

$78.51 CAD
$78.51 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10CDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes

Overview

  • 2-3/4" (70 mm) pivot setback
  • Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • Use monolithic tempered glass only (not laminated)

CRL Bottom Gate Patch Fittings are designed for glass gate installations using bottom door pivots or floor closers. This patch fitting mounts in the lower corner of the gate's glass panel and requires a 3/4" (19 mm) diameter hole plus a corner notch. Available in brushed stainless steel finish and includes a glass cut-out template and installation instructions.

SKU: PH10CDU

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions

Product Warning:

These fittings are not for use with laminated glass. Follow these hardware limits when fabricating a 1/2" glass door:

Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, use full door rails.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.


Order PH10CDU bottom gate patch fittings today or contact CRL Customer Service to confirm glass fabrication and shipping details.
