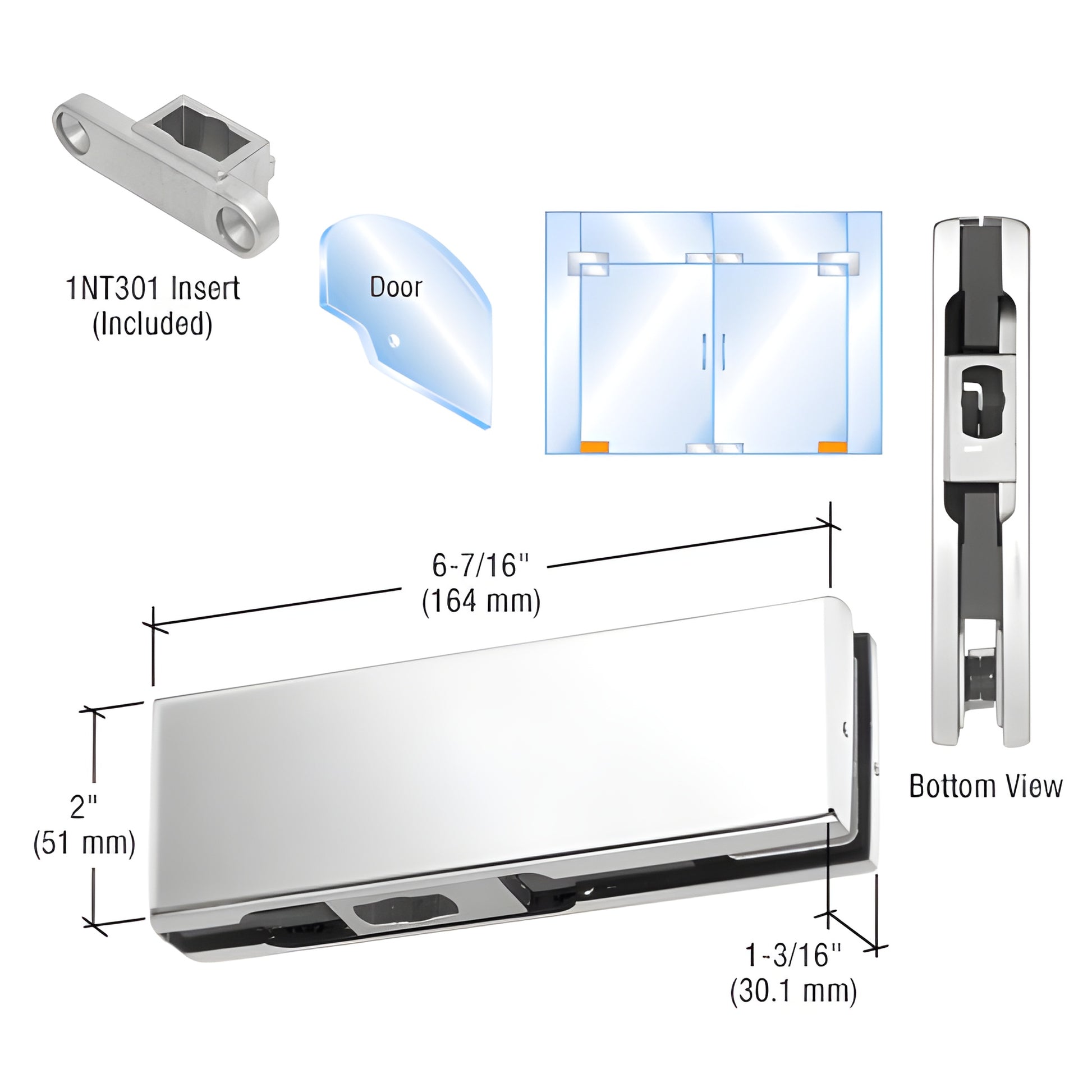

CRL Polished Stainless Bottom Door Patch with 1NT301 Insert
Item # PH10CPS
$78.03
CAD
Finish (7)
-
Satin Anodized -
Polished Brass -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel -
Satin Brass
Overview
| SKU | PH10CPS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Insert Type | 1NT301 |
| Pivot Setback | 2-3/4 |
| Type | Bottom |
| With Insert | Yes |
Description
- 2-3/4" (70 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
CRL Bottom Gate Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
