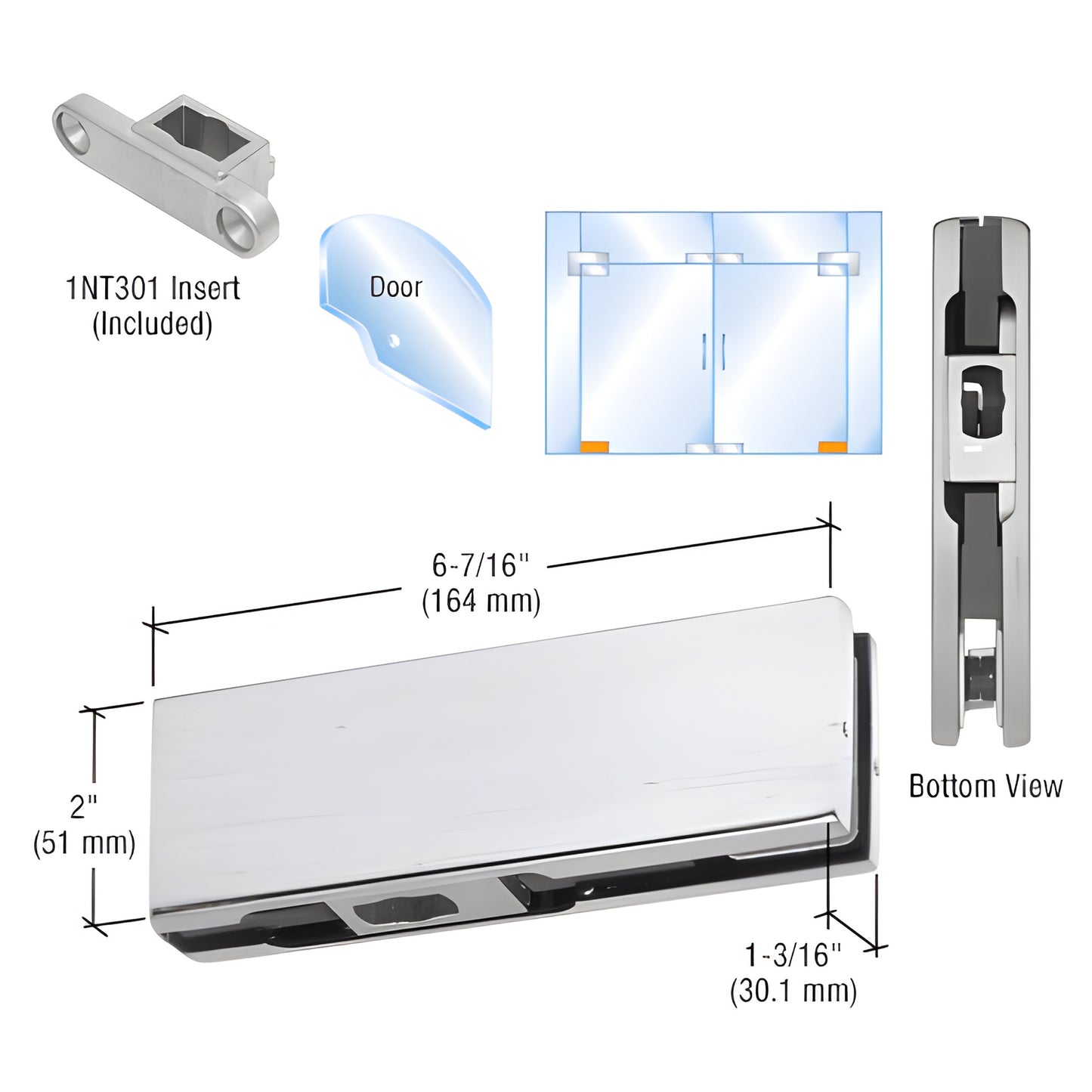

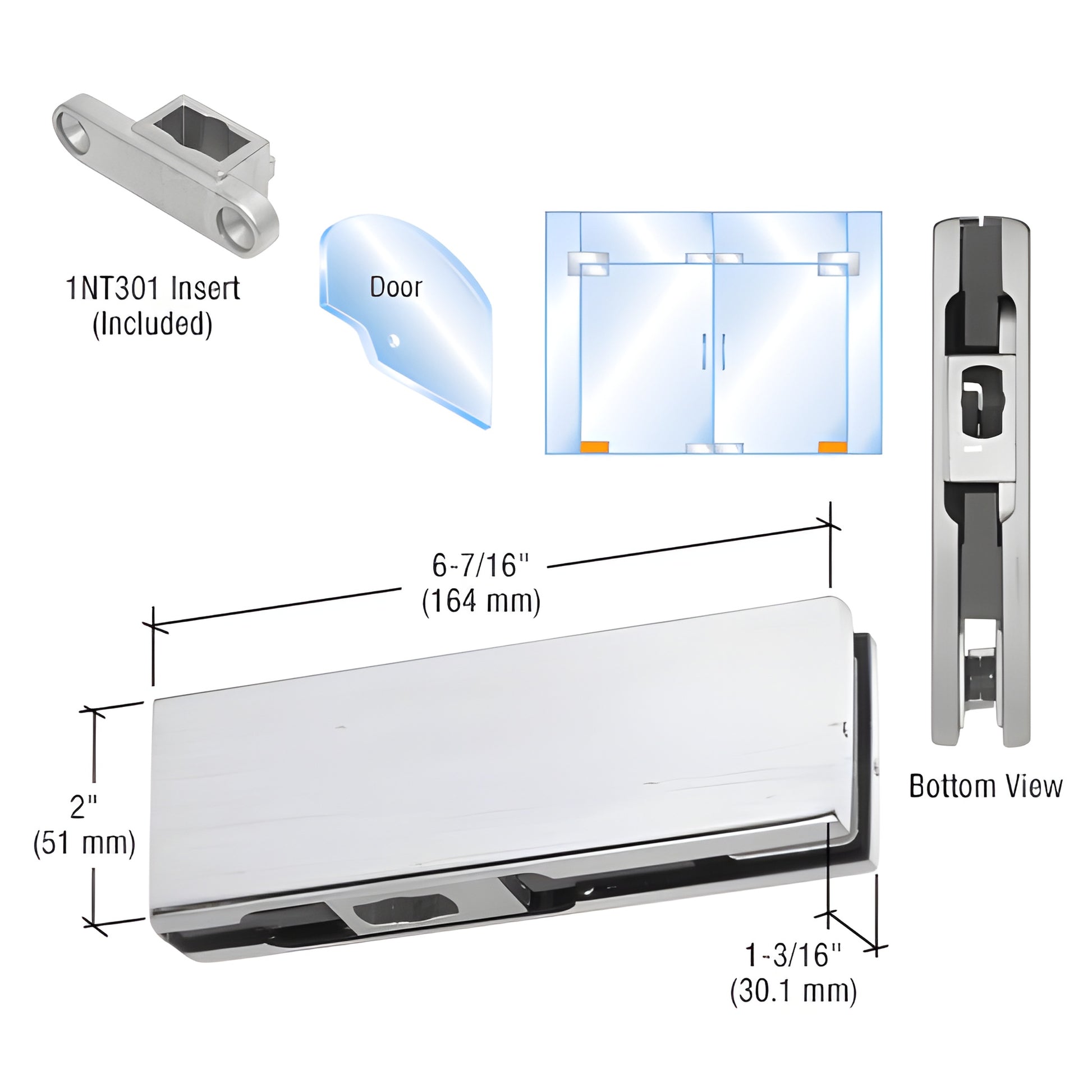

CRL Brushed Stainless Bottom Door Patch 1NT301 Glass Door Hardware
CRL Brushed Stainless Bottom Door Patch 1NT301 Glass Door Hardware
Regular price
$78.51 CAD
Regular price
Sale price
$78.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH10CBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes
Overview
- 2-3/4" (70 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
- Use Monolithic Tempered Glass
CRL Bottom Gate Patch Fittings provide a secure lower-corner connection for glass gates and frameless glass doors when used with CRL bottom door pivots or floor closers. Designed for monolithic tempered glass, this brushed stainless steel patch fitting requires a hole and corner cut-out in the glass and ships with a glass cut-out template and instructions.
SKU: PH10CBS
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:
Template and instructions
Product Warning:
These fittings are not for use with laminated glass.
Guidelines for use with 1/2" glass doors:
Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Durable brushed stainless steel finish, template-included glass fabrication, and compatibility with CRL bottom pivots make the PH10CBS an ideal bottom gate patch fitting for frameless glass gates and commercial glass doors. Order PH10CBS or contact CRL Customer Service to purchase or for technical assistance.
Specifications
CAD Drawings - dwg
