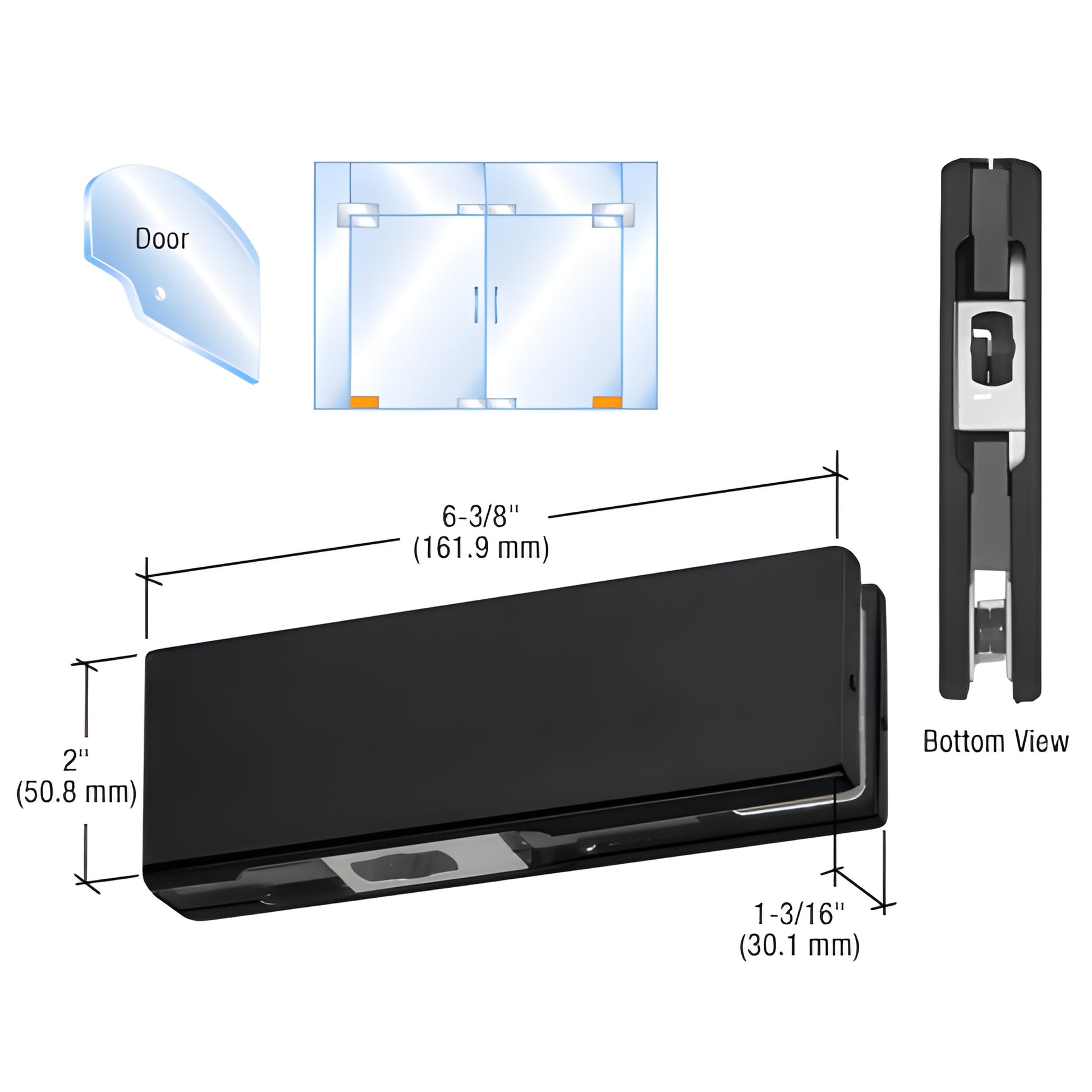

• PH10CMBL matte black CRL bottom patch fitting for 3/8-1/2" tempered glass gates, 6-3/8" x 2" profile.
1 1

CRL

CRL Matte Black Bottom Patch Fitting 1NT301 Insert for Glass Door

CRL Matte Black Bottom Patch Fitting 1NT301 Insert for Glass Door

$82.79 CAD
$82.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10CMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes

Overview

  • 2-3/4" (70 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

CRL Bottom Gate Patch Fittings (SKU: PH10CMBL) are precision fittings for frameless glass gate doors. Designed to mount in the lower corner of a monolithic tempered glass panel, this brushed stainless steel patch fitting pairs with bottom door pivots or floor closers. Requires a 3/4" (19 mm) diameter hole and corner notch in the glass; includes a glass cut-out template and installation instructions.



GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions


Product Warning:

Not for use with laminated glass. Use only with monolithic tempered glass. Follow these hardware limits for 1/2" (12 mm) glass doors:

Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limits, specify full door rails for safe operation.
