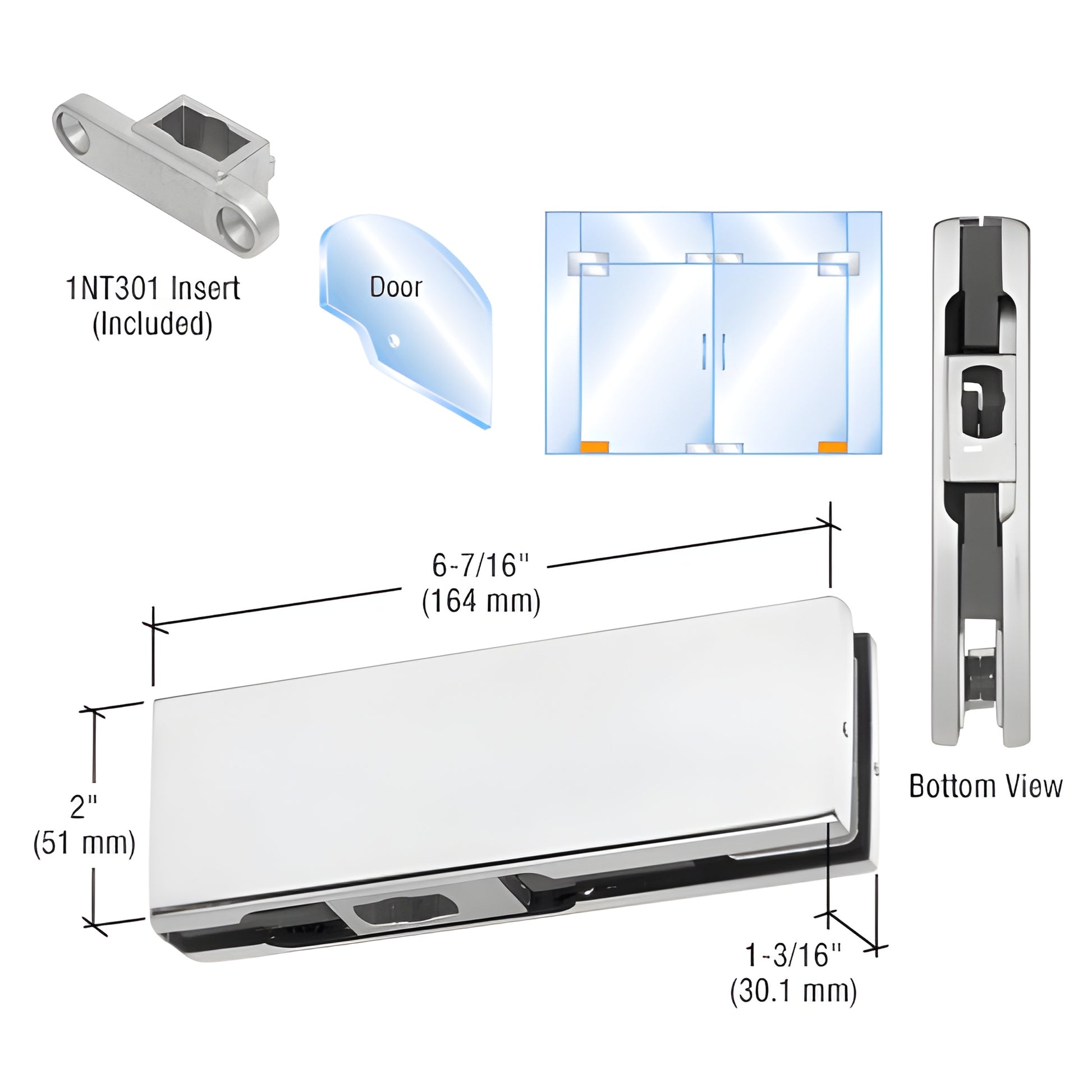

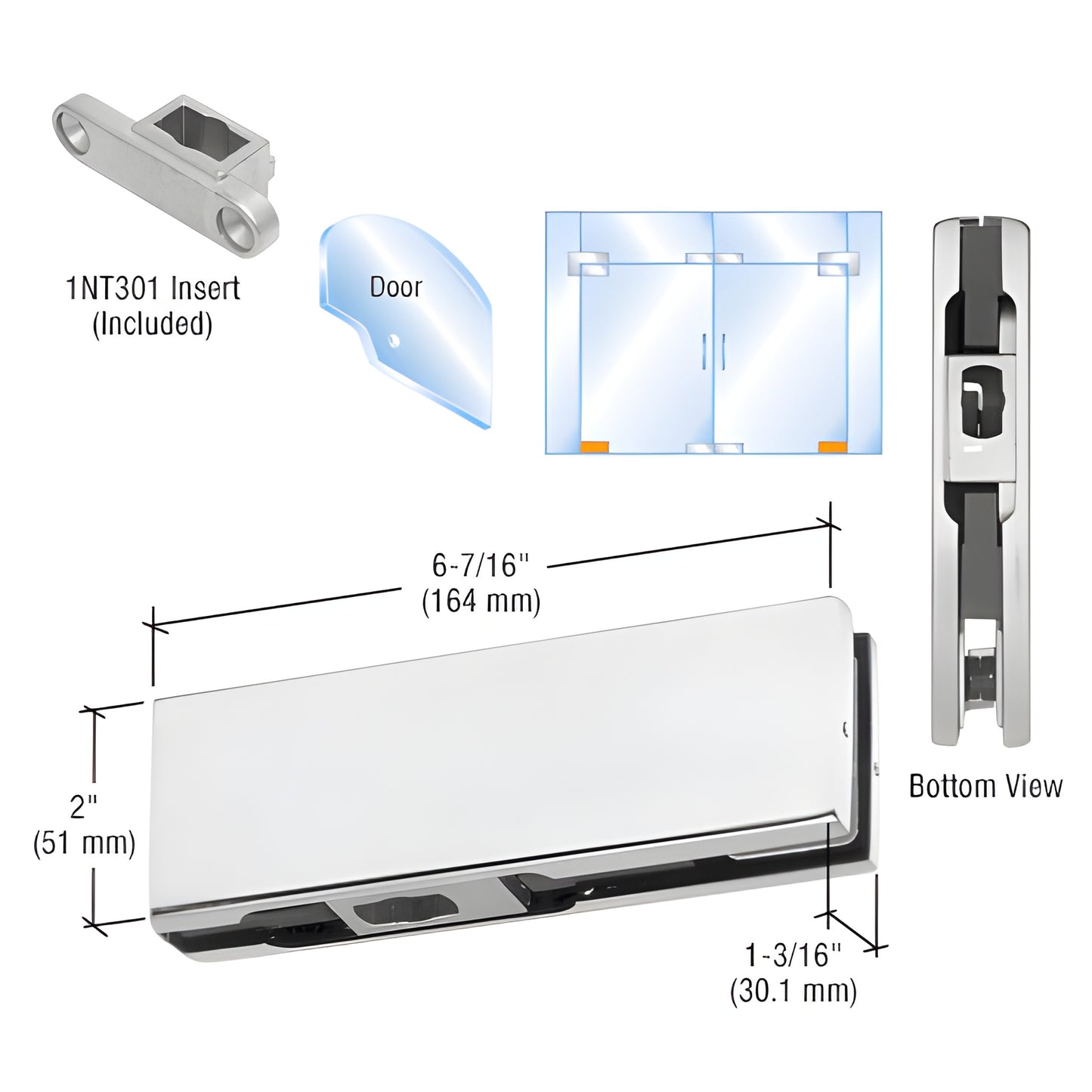

CRL Satin Anodized Bottom Patch for Glass Doors with 1NT301 Insert

CRL Satin Anodized Bottom Patch for Glass Doors with 1NT301 Insert

$77.08 CAD
$77.08 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10CA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes

Overview

  • 2-3/4" (70 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Use Monolithic Tempered Glass (not laminated)

CRL Bottom Gate Patch Fittings (SKU: PH10CA) are engineered to anchor the lower corner of a glass gate panel to bottom door pivots or floor closers. Designed for monolithic tempered glass, this brushed stainless steel patch fitting requires a glass hole and corner cut-out and includes a cut-out template and installation instructions.


GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole plus corner notch

COMES WITH:
Template and installation instructions


Product Warning:

Not for use with laminated glass.

Use the following hardware limits when designing a glass door with this patch fitting:
MAXIMUM HEIGHT: 102" (2591 mm)
MAXIMUM WEIGHT: 194 lbs (88 kg)
MAXIMUM WIDTH: 42" (1092 mm)
If the door exceeds any of these limits, specify full door rails.
