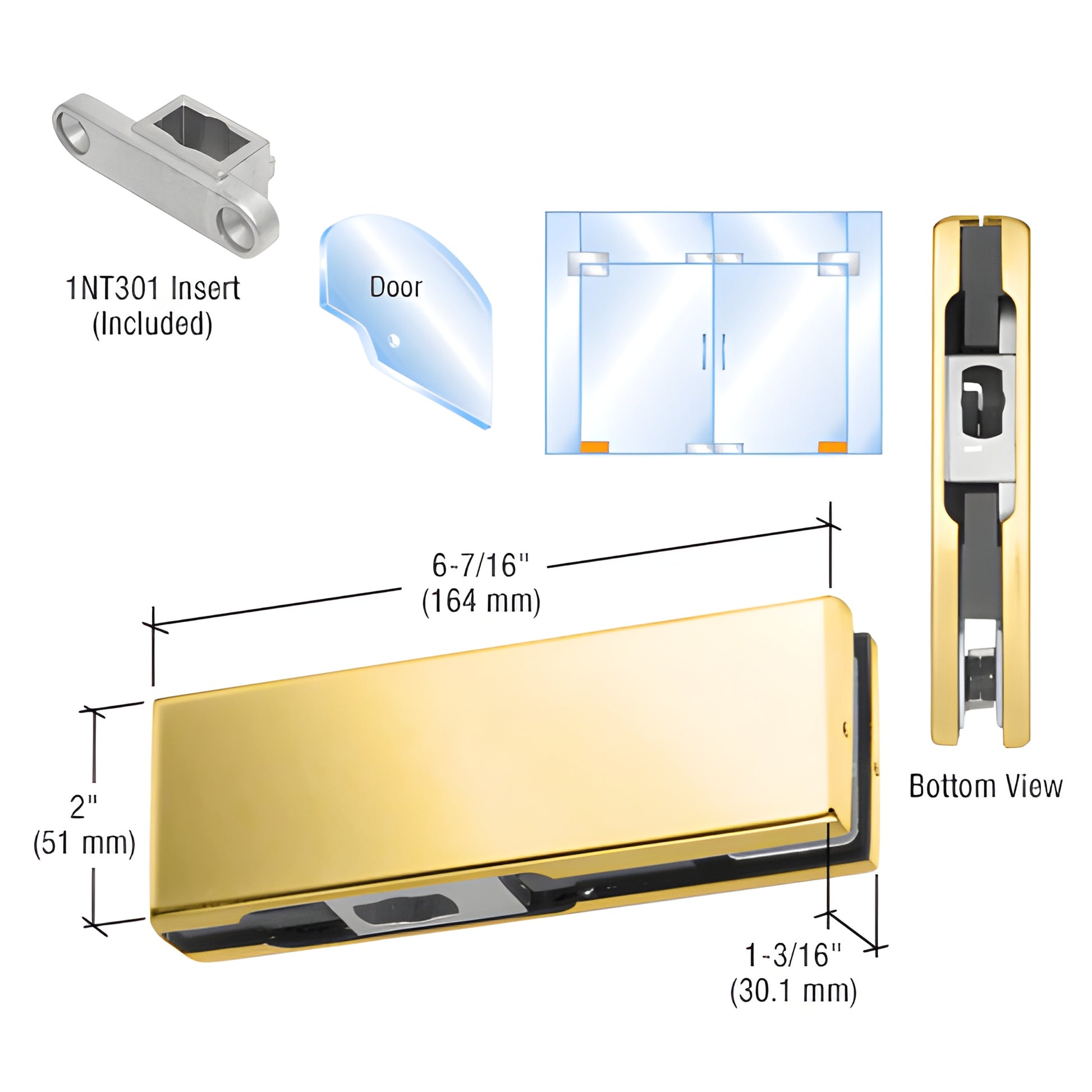

• PH10CBR polished brass bottom gate patch fitting for 3/8-1/2 (10-12mm) glass, includes 1NT301 insert and pivot
1 1

CRL

CRL Brass Bottom Patch Fitting for Frameless Glass Doors with 1NT301 Insert

CRL Brass Bottom Patch Fitting for Frameless Glass Doors with 1NT301 Insert

$101.35 CAD
$101.35 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10CBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes

Overview

  • 2-3/4" (70 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

CRL Bottom Gate Patch Fittings — SKU: PH10CBR are designed for glass gates and frameless glass doors that use bottom pivots or floor closers. This BRUSHED STAINLESS STEEL gate patch fitting installs in the lower corner of the glass panel, requires a hole and corner cut-out, and includes a glass cut-out template and instructions for accurate fabrication.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch in the glass.

COMES WITH:
Template and instructions for precise installation and glass cutting.

KEY DIFFERENTIATORS:
- Brushed stainless steel finish for corrosion resistance and a modern look.
- Includes cut-out template—reduces installer guesswork and speeds fabrication.
- Specifically made for monolithic tempered glass gate and frameless glass door applications.

Product Warning:

Not for use with laminated glass. Follow these maximums when using 1/2" glass with this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If any dimension or weight is exceeded, use full door rails or alternate hardware.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost information is required to complete your order, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor and video card settings.

Brass Finish Advisory:
Although durable, brass and brass finishes are prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for maintenance and care guidance.
