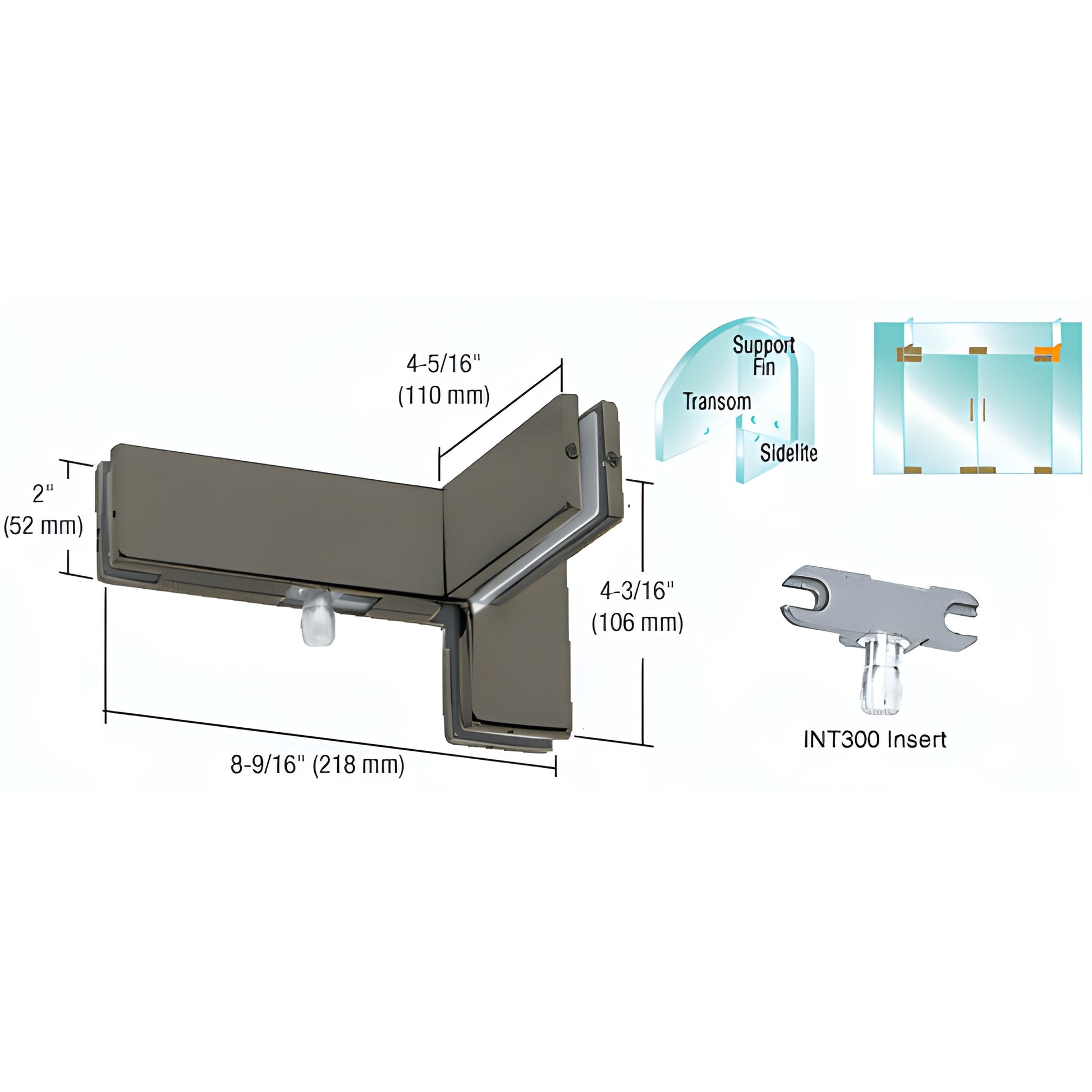

CRL Dark Bronze Left Sidelite Transom Patch w/ Support Fin & 1NT300

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Available left- and right-handed
• Use with monolithic tempered glass only (not for laminated glass)

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket supports a transom from a sidelite glass panel and is ideal for frameless glass storefronts and interior glass systems that require a transom supported from the sidelite. Includes an INT300 insert to mount a door with CRL PH20A or PH21A top door patch fitting. For single-door installations the insert can be removed on the non-hinged side to allow a double swinging door. Use the INT306 transom patch door stop insert for one-way doors, or the INT305 transom patch keeper insert for use with an AMR205 lock in top-of-door installations.

The support fin glass should be sized per approved design criteria (refer to GANA or manufacturer manuals) and secured to the ceiling with a ceiling mounted support fin bracket. If the transom weight exceeds 100 lbs (45.4 kg), provide ceiling support (to prevent patch slipping) using Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings. Contact CRL Technical Sales for assistance.

GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) diameter holes and two corner notches.

COMES WITH:
Template and instructions.

Product Warning:
These fittings are not for use with laminated glass. Use only with monolithic tempered glass per glass fabrication requirements.

SKU: PH41LDU. Need help specifying or ordering the PH41LDU sidelite mounted transom patch? Contact CRL or add to cart now.
