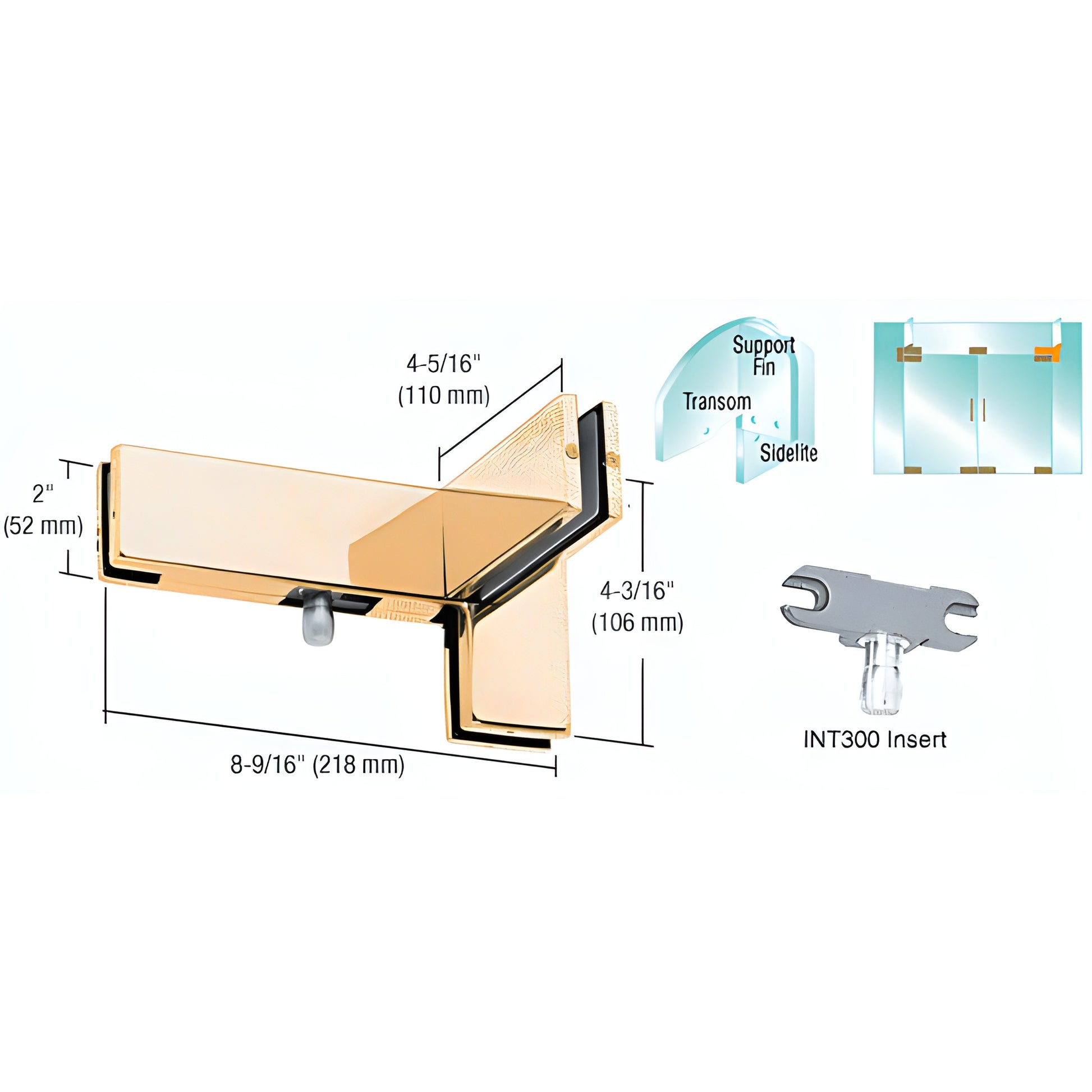

CRL Polished Brass LH Sidelite Transom Door Patch w/ Bracket 1NT300

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Left- and right-handed versions available
• Use with monolithic tempered glass only (not for laminated glass)

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41LBR) supports a transom from a sidelite glass panel and includes an INT300 insert for mounting a door with CRL PH20A or PH21A top door patch fittings. For single doors, remove the insert on the non-hinged side to allow a double swinging door. Use the INT306 transom patch door stop insert to create a one-way door, or install the INT305 transom patch keeper insert for use with an AMR205 lock in top-of-door installations.

The support fin glass should be sized per approved design criteria (see GANA or the manufacturer's manual) and must be secured to the ceiling with a ceiling mounted support fin bracket. If the transom weight exceeds 100 lbs. (45.4 kg), the transom must be supported from the ceiling to prevent patch slippage. For heavy transoms, consider Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings. Contact our Technical Sales Department for assistance with heavy transom support and load requirements.

Glass fabrication required:
Five 3/4" (19 mm) diameter holes and two corner notches.

Comes with:
Template and instructions.

Product warning:
These fittings are not for use with laminated glass.

Brass Finish Advisory:
