CRL Left-Hand Satin Anodized Sidelite Patch w/ Fin Bracket & 1NT300

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Left- and right-handed sidelite-mounted transom support
• Use monolithic tempered glass only — not for laminated glass

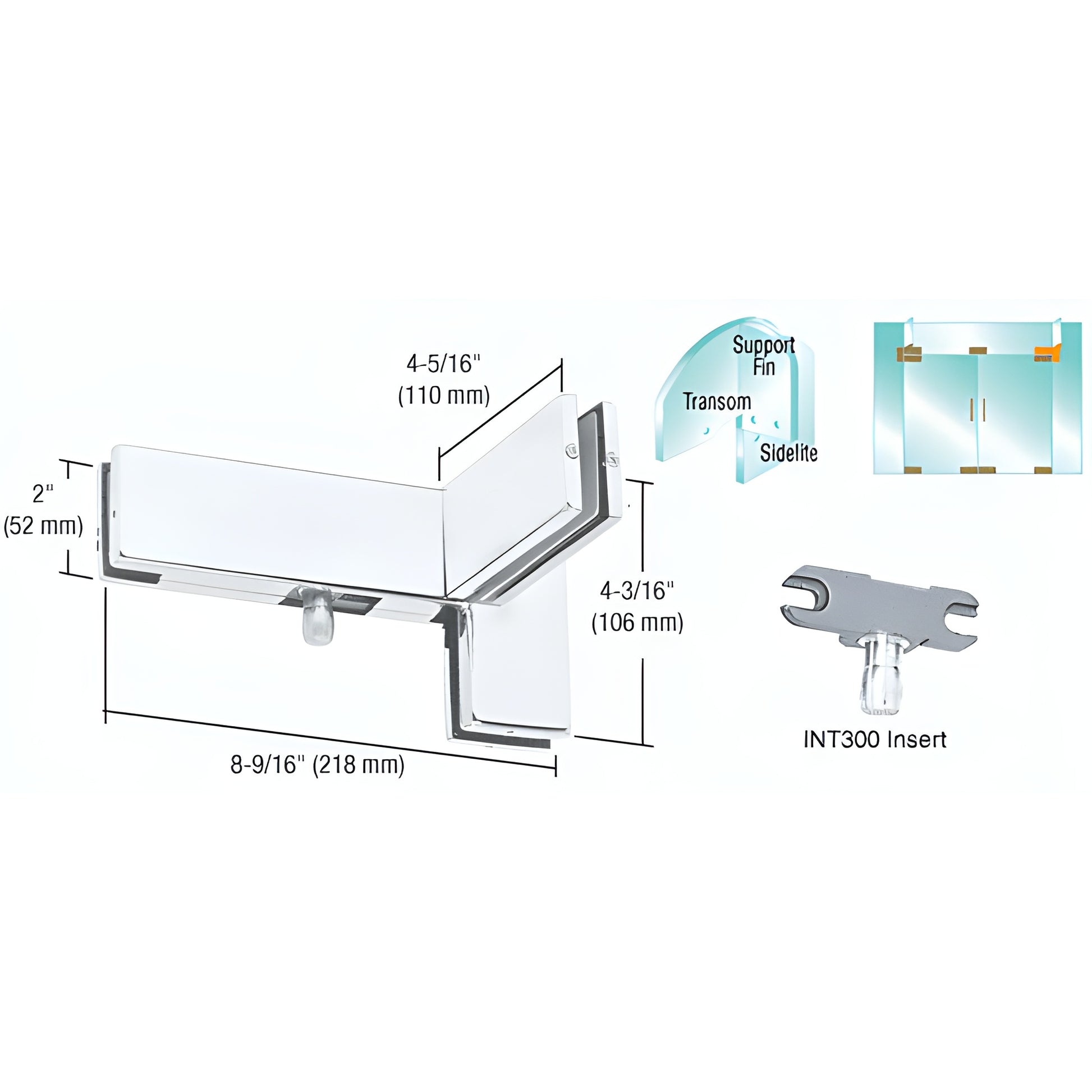

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41LA) is a sidelite-mounted transom patch hardware solution designed to support a transom from a sidelite glass panel. Includes an INT300 insert for mounting a door with CRL PH20A or PH21A top door patch fittings. For single doors, remove the insert on the non-hinged side to convert to a double-swing door. Use INT306 Transom Patch Door Stop Insert to create a one-way door, or install INT305 Transom Patch Keeper Insert for use with AMR205 lock in top-of-door installations. The support fin glass must be sized per approved design criteria (refer to GANA or the manufacturer’s manual) and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.

If the transom weight exceeds 100 lbs. (45.4 kg), support the transom from the ceiling to prevent patch slip. Recommended alternatives: Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

Glass fabrication required:
Five 3/4" (19 mm) diameter holes and two corner notches.

Comes with:
Template and instructions.

Product warning:
These fittings are not for use with laminated glass.

Need help selecting the right sidelite transom patch or verifying transom weight limits? Contact CRL Technical Sales or add SKU PH41LA to your cart to get started.
