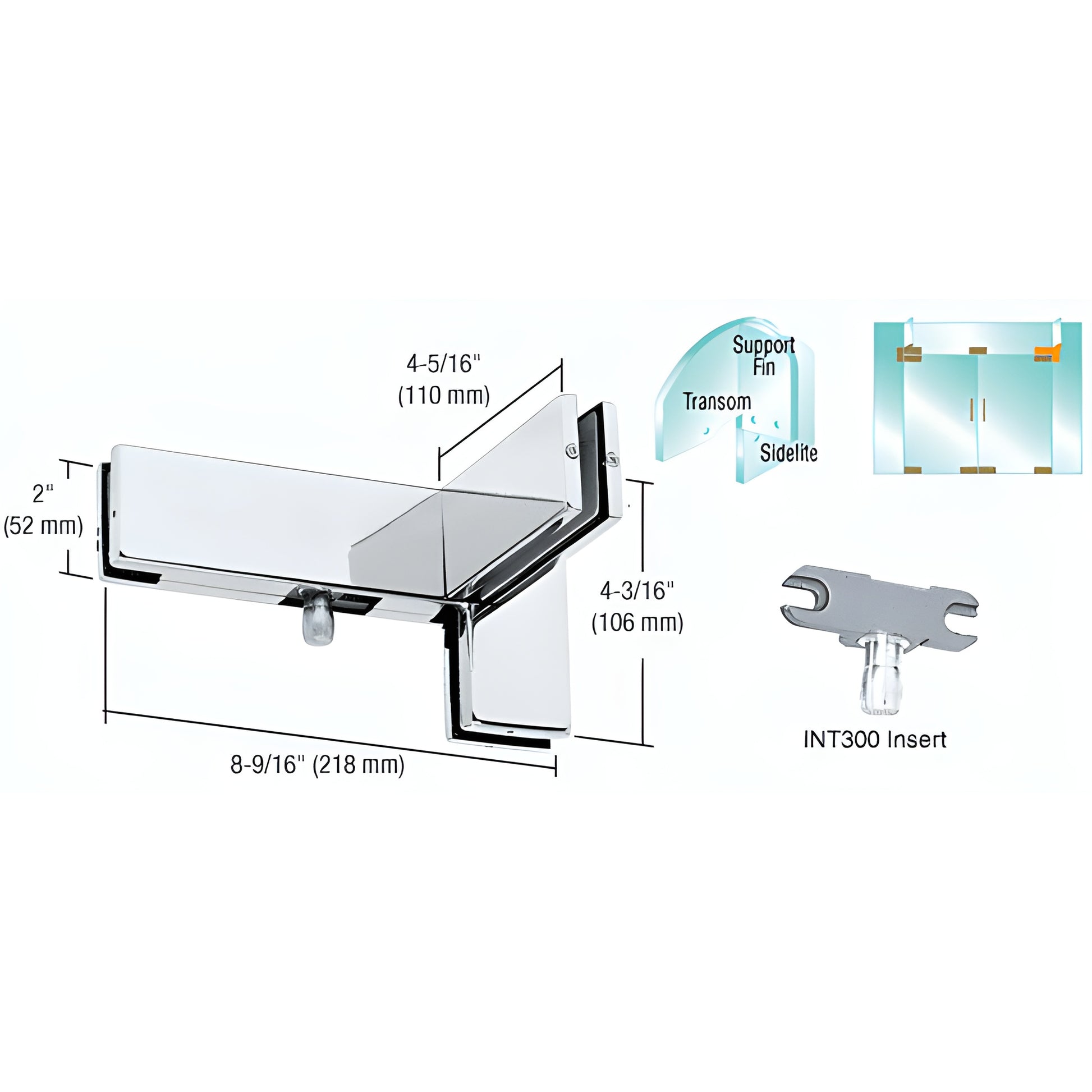

CRL 1NT300 Polished Stainless Left Sidelite Patch w/ Fin Bracket

• Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• For 3/8" or 1/2" (10 or 12 mm) glass
• Left- and right-handed versions available
• Use with monolithic tempered glass only

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41LPS) is designed to support a transom from a sidelite glass panel and integrates with CRL top door patch fittings for reliable commercial glass door installations. Includes an INT300 insert for mounting a door with CRL PH20A or PH21A top door patch fitting. For single-door installations, remove the insert on the non-hinged side to create a double-swinging door.

Optional inserts and accessories:

• Use INT306 Transom Patch Door Stop Insert to create a one-way door
• Install INT305 Transom Patch Keeper Insert for use with an AMR205 lock on top-of-door installations
• Secure support fin glass to the ceiling with a Ceiling Mounted Support Fin Bracket

If the transom weight exceeds 100 lbs. (45.4 kg), support the transom from the ceiling to prevent patch fittings from slipping. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings as required. Contact our Technical Sales Department for assistance with heavy transoms or custom specifications.

Glass fabrication required:
Five 3/4" (19 mm) diameter holes and two corner notches

Comes with:
Template and instructions

Product warning:
Not for use with laminated glass. Use only with monolithic tempered glass.
