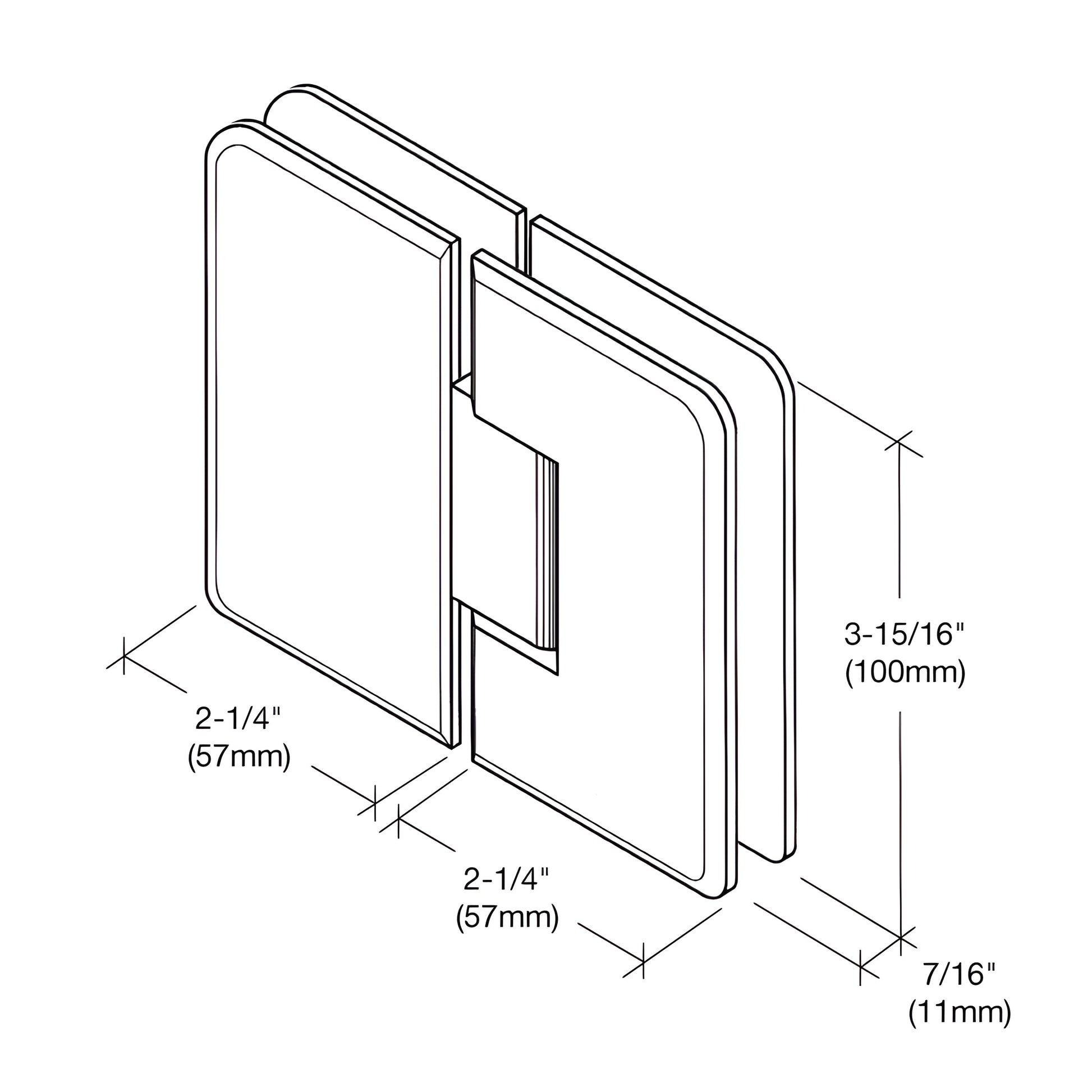

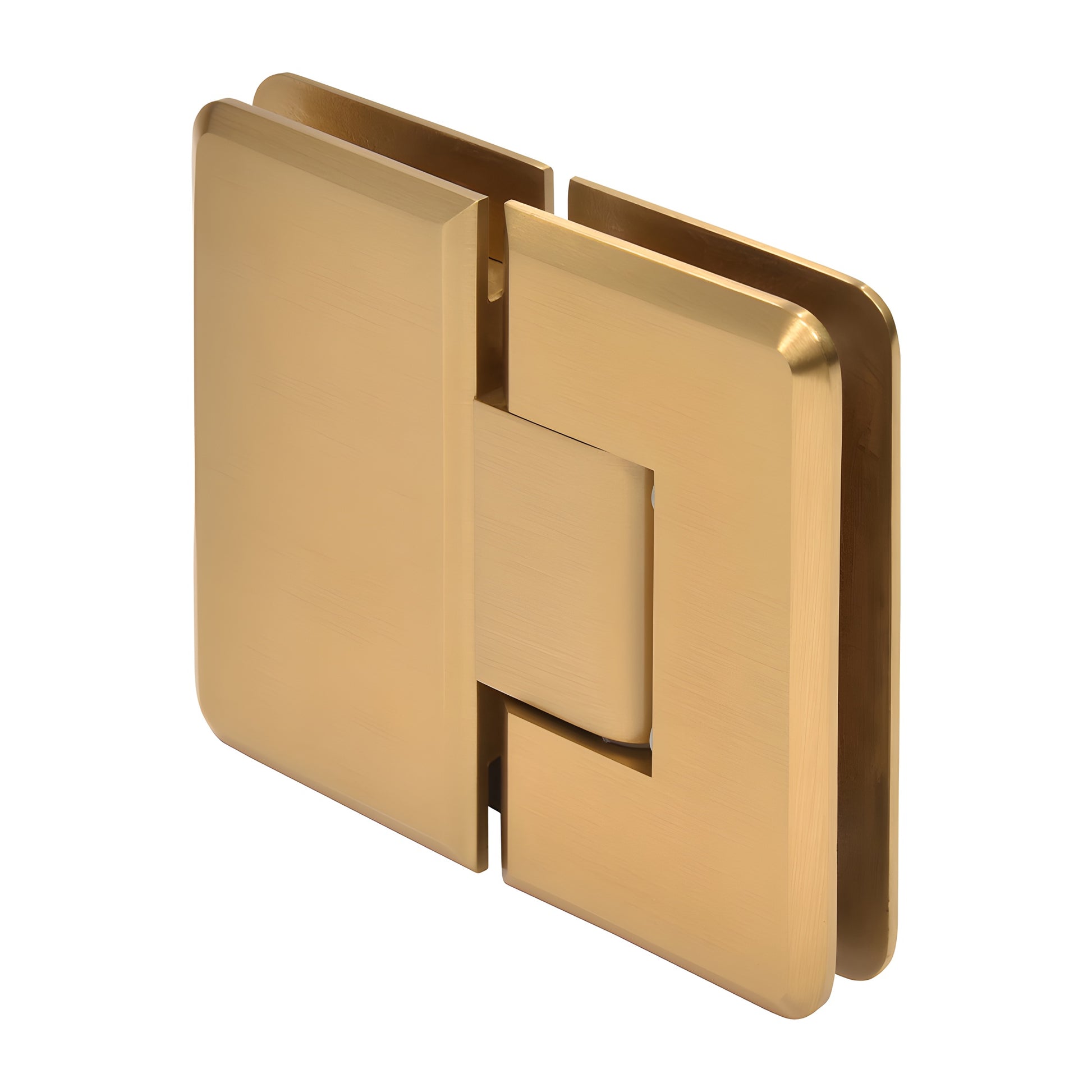

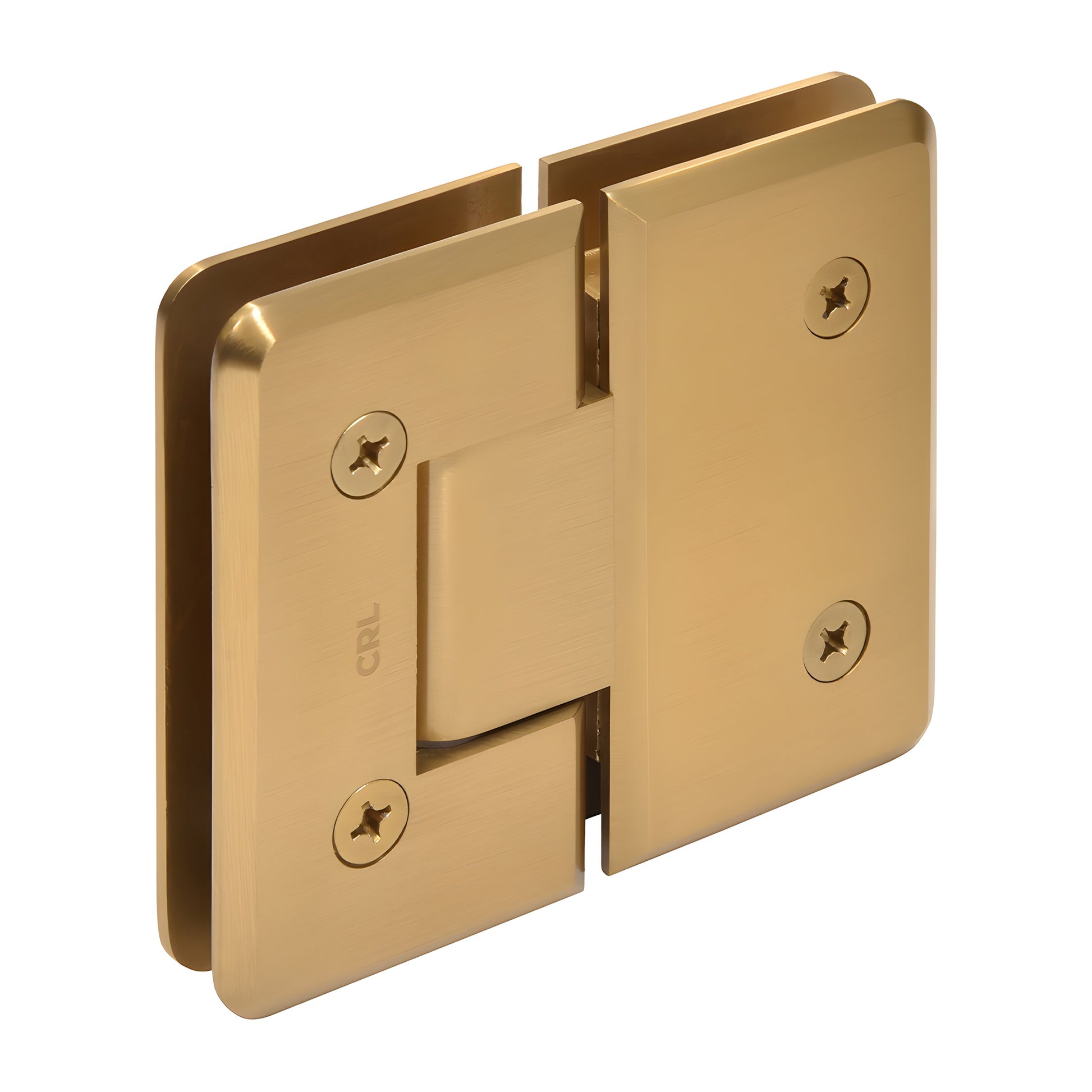

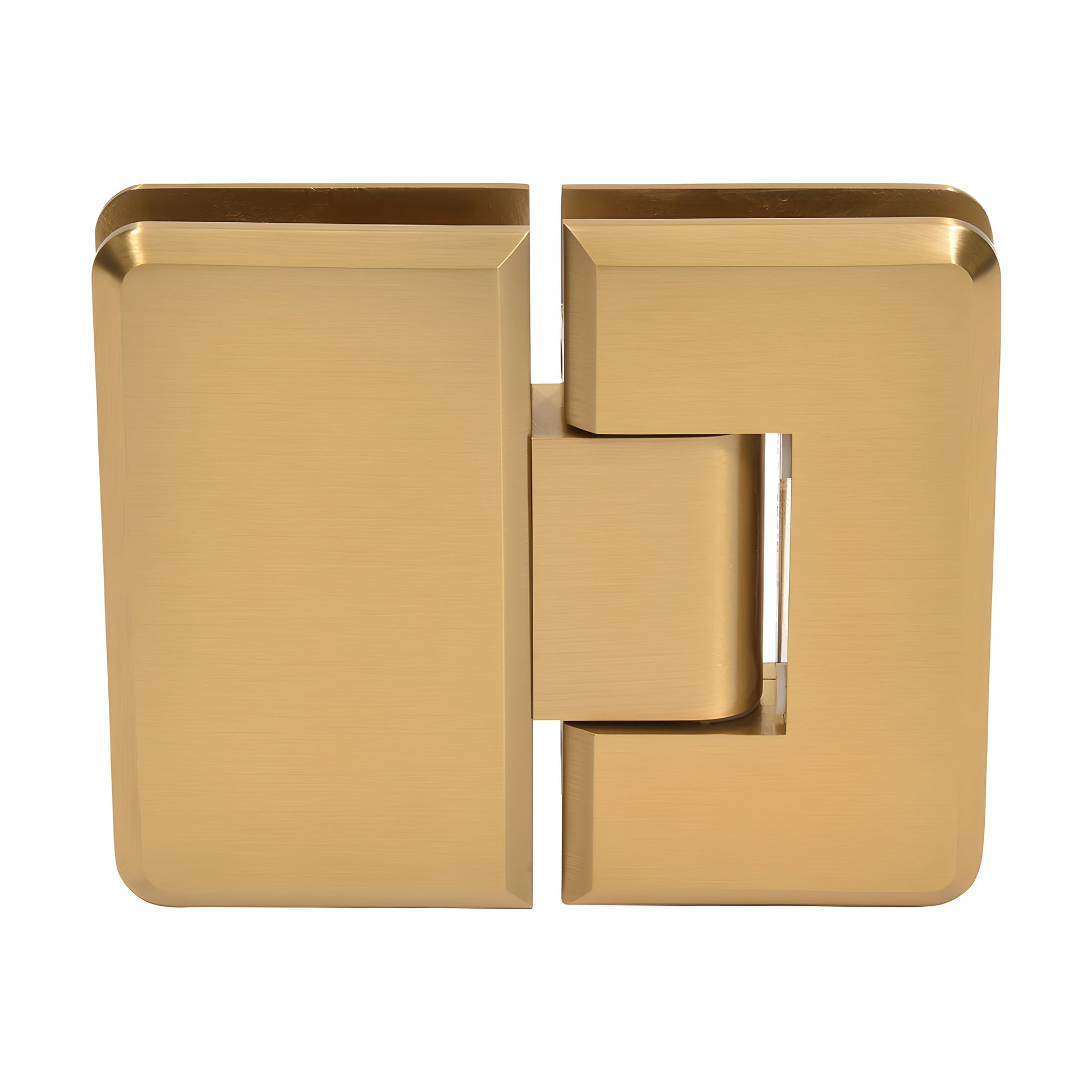

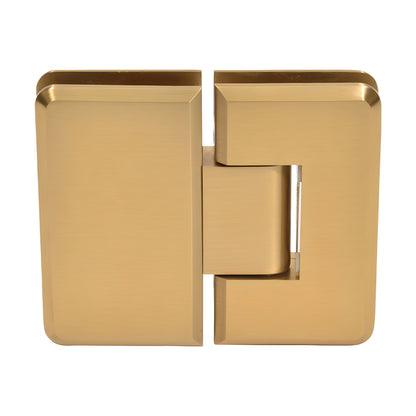

CRL Cologne 180° Modern Gold Glass-to-Glass Frameless Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several finishes, including custom finishes on request
• 180º glass-to-glass hinge for frameless shower doors
• Use monolithic tempered safety glass

CRL Cologne Hinges (SKU: C0L180MG) offer a sleek alternative to Vienna Hinges with radius corners and beveled edges. Engineered for wider, heavier frameless shower doors, Cologne Hinges include two internal steel pins that provide mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs for added safety, or remove them for increased adjustability and compatibility with rectangular, square-cornered cut-outs (including some competitive patterns).

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with 90º engaged; Pre-Set models ship at 85º (5º tighter closure). Rotate the pin (do not flip) to switch sides.

Custom Pivot Pin: Available for off-angle installations—specify an angle up to 45º when the standard 5º adjustment does not achieve the desired door closing position.

Load Capacity: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lb (50 kg) with a maximum door width of 36" (914 mm). Using three hinges supports up to 140 lb (63 kg) with the same maximum width.

Specifications:

• Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge swings: 90º in and 90º out (180º total)
• Closing type: Self-centering when within 15º of closed position
• Cut-out required: Except C0L092 (requires cut-out for door and two holes for fixed panel)
• Includes: Gaskets, screws, and glass fabrication dimensions
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot pins available—contact the CRL Technical Sales Department for details.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval
