CRL Oil Rubbed Bronze 135° Square Glass-to-Glass Shower Door Clamp

• For 5/16" to 1/2" (8 to 12 mm) glass
• Used to secure fixed panels of glass for frameless shower enclosures and all-glass partitions
• Solid brass construction for durable, corrosion-resistant hardware
• Cleaner "all-glass" appearance versus U-channel — ideal for frameless shower clamp installations
• Glass fabrication required to accommodate clamps (see specifications)
• Use with monolithic tempered glass

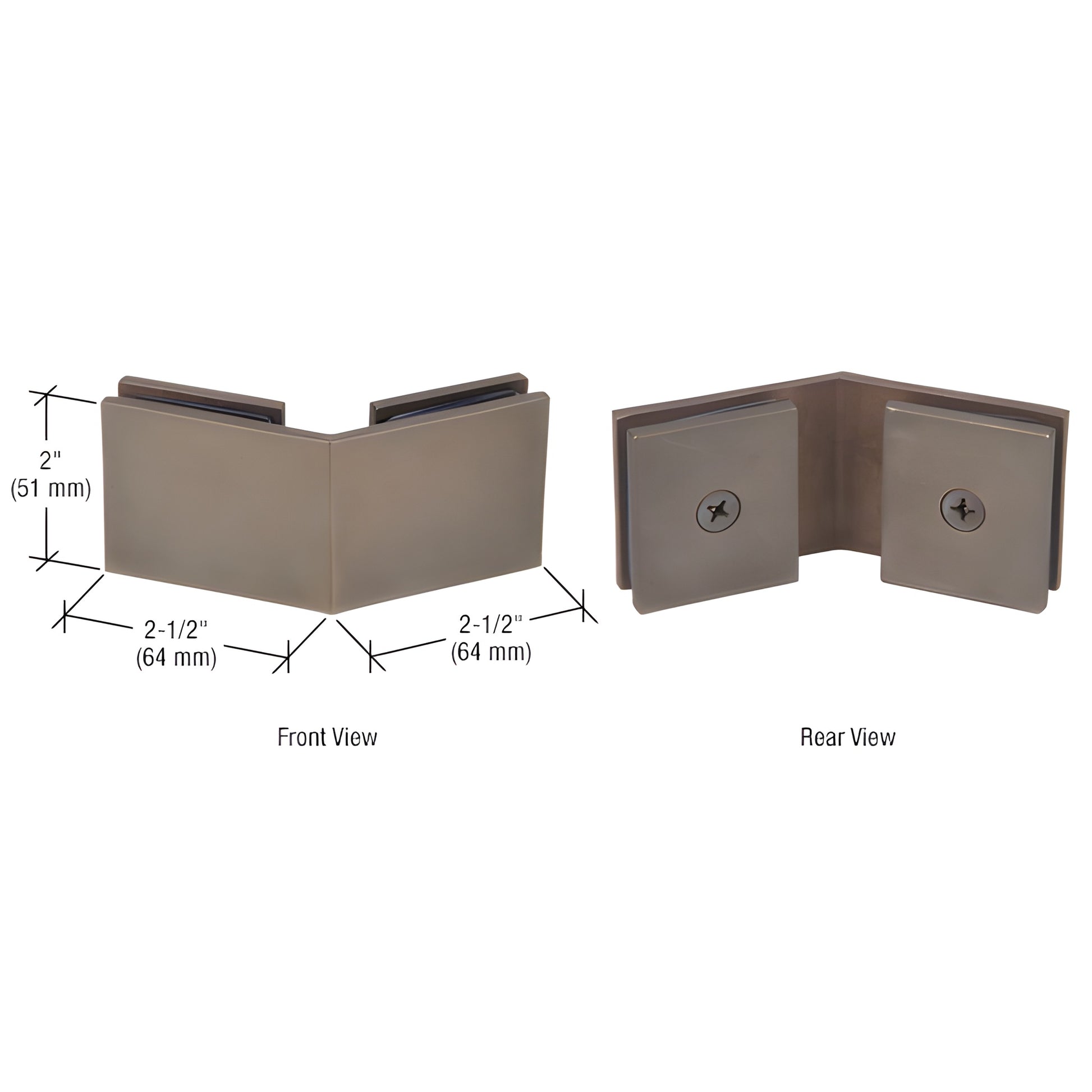

CRL Square 135 Degree Glass-to-Glass Clamps are designed to join two panels at a 135° angle for frameless shower enclosures, trophy cases, showcases, partitions, and custom all-glass displays. The clamps feature sharp corners and accept either mitered or flat-edged glass. Available in multiple designer finishes to coordinate with other hardware. Solid brass construction ensures long-lasting finish with proper care. Drawings and templates are available to simplify glass fabrication and installation. SKU: SGC1350RB.

NOTE: Replacement gasket: Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: Accepts 5/16" to 1/2" (8 to 12 mm) glass. (See fabrication note below: some models require 3/8" to 1/2" (10 to 12 mm).)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel plus a notch in the transom.
Includes: Mounting screws (for wall clamps) and gaskets
