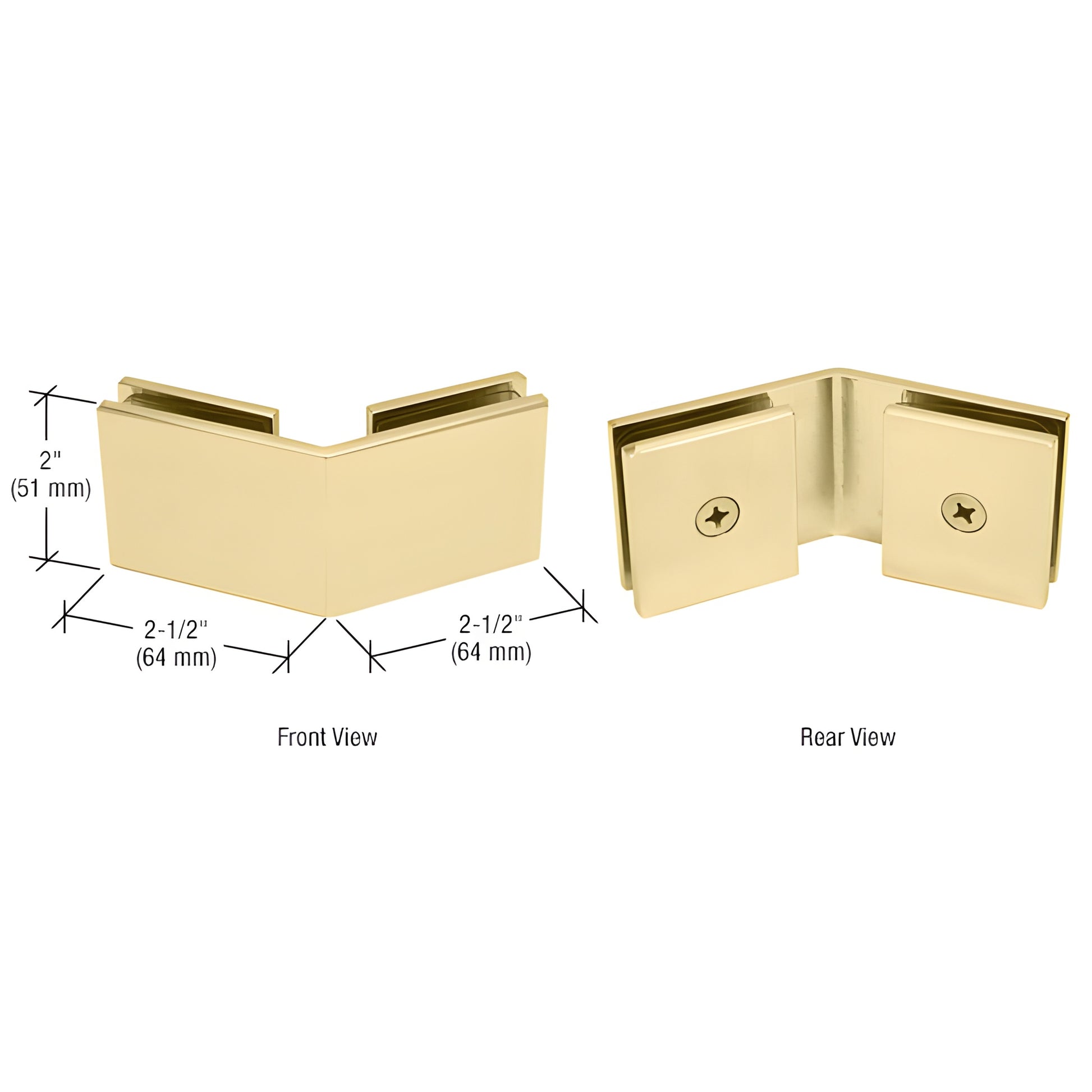

• Satin brass squared 135-degree glass-to-glass clamp for 10-12mm (3/8-1/2") glass, solid brass, 2" high, 21 2" legs (SGC135SB)
1 1

CRL

CRL Satin Brass 135° Square Glass-to-Glass Clamp

CRL Satin Brass 135° Square Glass-to-Glass Clamp

$41.16 CAD
$41.16 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGC135SB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
135
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Leg Width
2-1/2 in. (64 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 5/16" to 1/2" (8 to 12 mm) Glass
  • Used to secure fixed panels of glass for frameless shower enclosures
  • Solid brass construction
  • A sleek alternative to U-channel—clamps preserve an "all-glass" aesthetic
  • Glass fabrication required to accommodate clamps
  • Use monolithic tempered glass

CRL Square 135 Degree Glass-to-Glass Clamps feature sharp corners and are designed to join two panels at a 135° angle. The glass may be mitered or flat edged. Ideal for frameless shower enclosures, custom showcase displays, trophy cases, partitions, and other all-glass installations where a clean, designer look is required. Available in a variety of finishes to match designer hardware. Made from solid brass for long-lasting appearance with proper care. Drawings and templates are available.



NOTE: Replacement gasket: Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on monitor settings.

Brass Finish Advisory:
Brass
