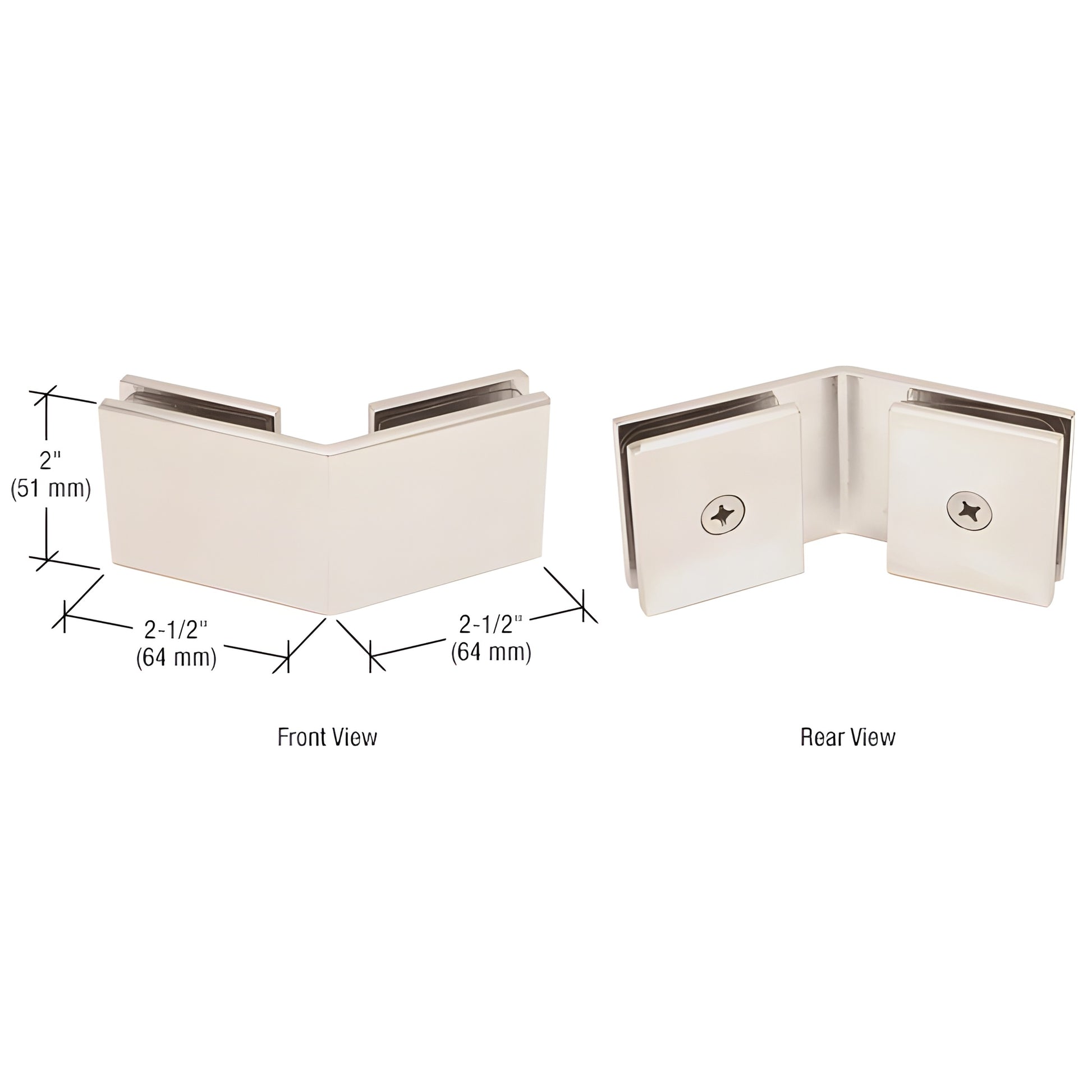

CRL Polished Nickel 135° Square Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 to 12 mm) Glass
• Used to secure fixed panels of glass for frameless shower enclosures and all-glass partitions
• Solid Brass
• A refined alternative to U-channel that preserves an "all-glass" appearance
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Square 135 Degree Glass-to-Glass Clamps (SKU: SGC135PN) are solid brass, precision clamps designed to join two glass panels at a 135° angle. Ideal for frameless shower enclosures, custom showcase displays, trophy cases, and glass partitions, these 135 degree glass-to-glass clamps provide a cleaner, more modern "all-glass" look compared with traditional U-channel systems. Available in multiple designer finishes to match hardware collections. Drawings and templates are available. These clamps have sharp corners; the glass may be mitered or flat-edged. With proper care and cleaning, the solid brass construction is engineered to remain attractive for years.

NOTE: Replacement gasket is Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188
