CRL Polished Brass 1/2in Glass 4in Tapered Door Rail, No Lock, Custom

• Custom Length for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

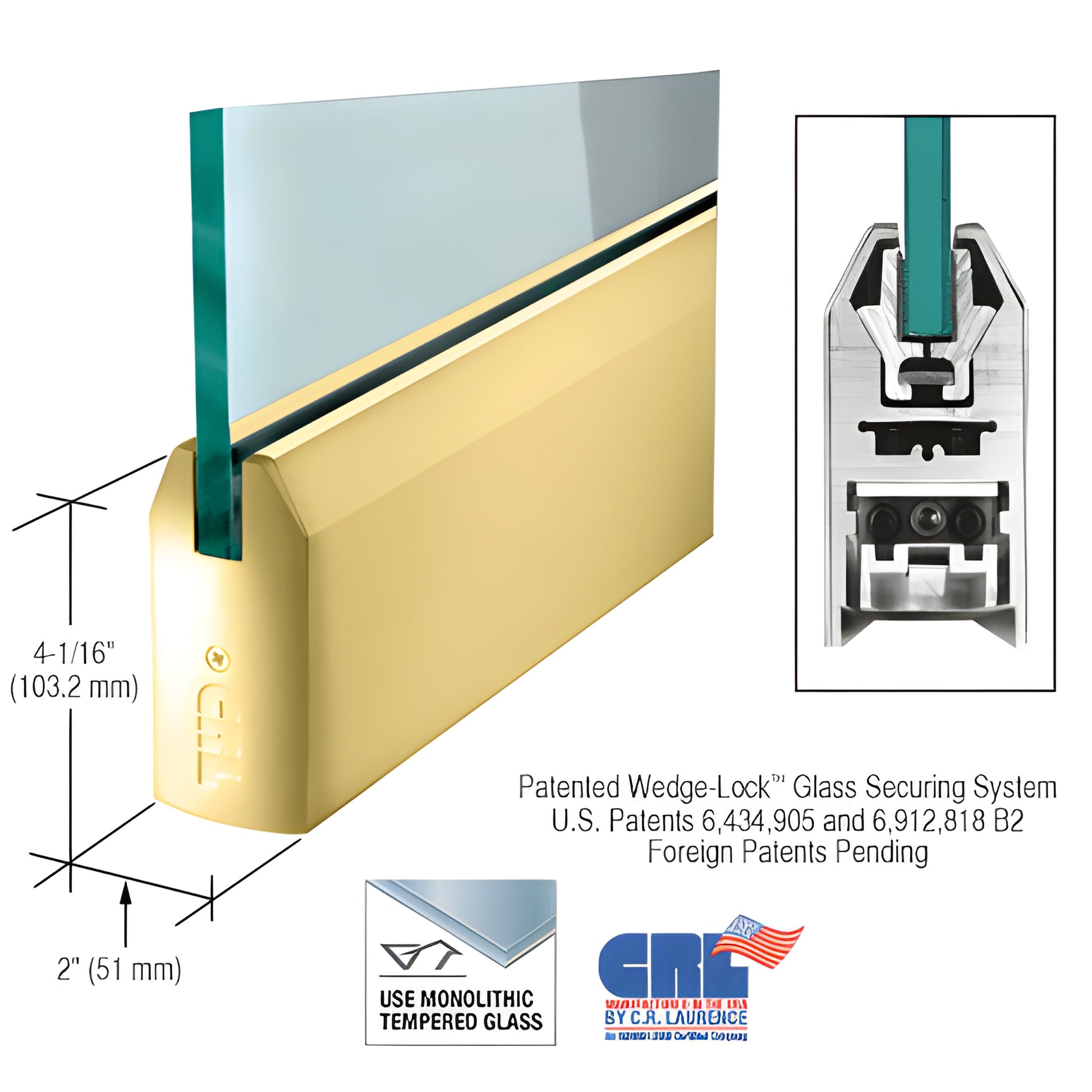

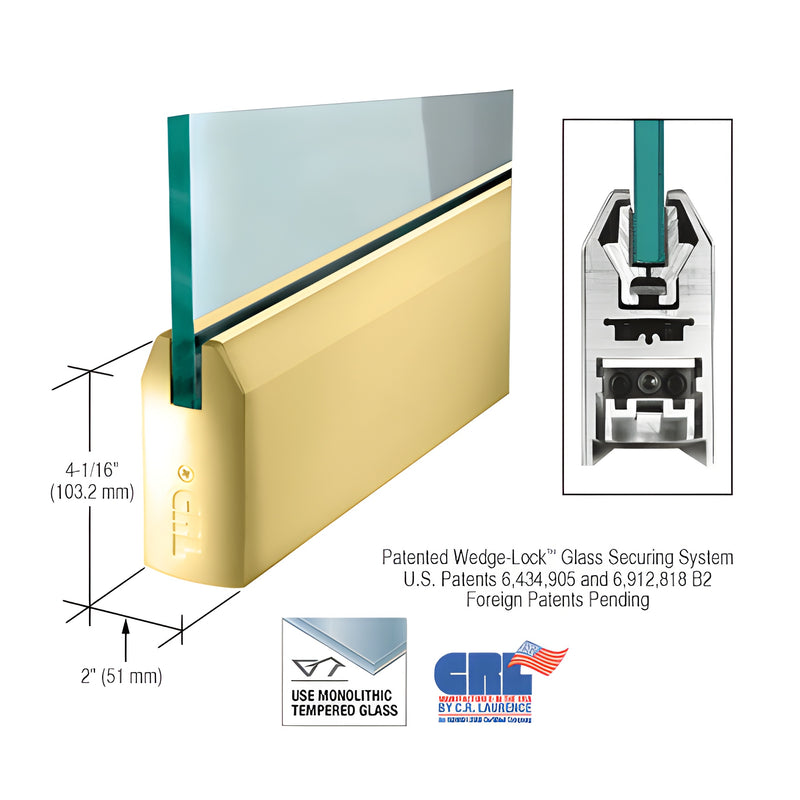

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPB12C), is engineered for 1/2" (12 mm) monolithic tempered glass and features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge action secures the glass by pulling two aluminum retaining extrusions together with a flat stainless steel bar and angled groove, producing very high clamping force (over 900 lbs. in a 9" corner rail) for reliable, long-lasting hold.

Product Height: 4-1/16" (103 mm)

Key differentiators:

• Fast installation—experienced installers can prepare a door in under 10 minutes
• Completely fabricated and ship-ready with End Caps installed
• Built-in adjustable Door Alignment Slide (±1/8" / 3.2 mm) on both top and bottom rails for on-site alignment without removing the door
• Rigid single-component housing that resists shifting and stays in adjustment
• Internal components remain installed during fitting—no disassembly required
• Durable glass securing pads designed for extreme environments

Installation and adjustment: after rail installation attach the door arm or pivot (not included) to the adjustable alignment slide. To fine-tune alignment after hanging, remove the End Cap to access three socket head cap bolts—the center bolt secures the slide, the two outer bolts adjust the slide in or out by 1/8" (3.2 mm). The low-profile slide allows pivot placement off the standard 2-3/4" (69.8 mm) setback for out-of-square openings.

Ordering notes:

• All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms, pivots, closer arms and floor/overhead pivots must be ordered separately.
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns are ordered separately.
• Standard finishes available; custom finishes and widths quoted on request. Rail specs, templates and hardware packages are available from CRL Technical Sales via e-mail.
