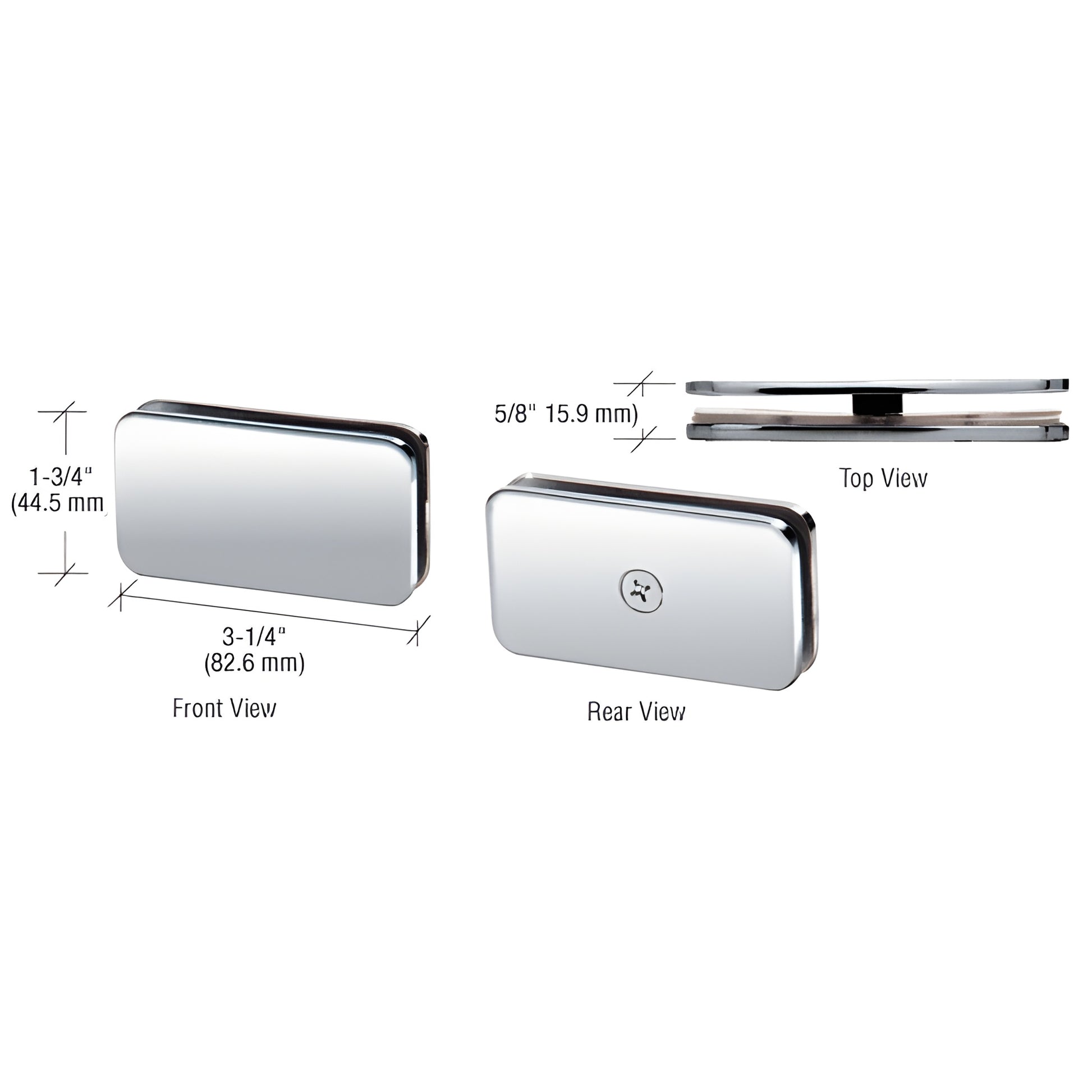

CRL 180° Polished Chrome Glass-to-Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 or 12 mm) thick monolithic tempered glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction for durable, corrosion-resistant performance
• Provides an "all-glass" appearance as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps (see specifications)

Solid brass CRL Standard 180 Degree Glass Clamps (SKU: GCB180CH) are engineered for fixed transom or inline panel installations in frameless shower enclosures. Ideal for installers and fabricators seeking a clean, contemporary, all-glass look, these 180° glass clamps secure 8–12 mm tempered glass panels while matching our full line of shower door hinges and finishes.

Our Traditional Glass Clamps offer a low-profile alternative to U-channel, with solid brass construction and multiple finish options to coordinate with hardware. Each clamp includes mounting screws and one set of clear gaskets; additional clear gaskets (Cat. No. UCG77) are available separately.

SPECIFICATIONS:
Materials: Solid brass
Available Finishes: Shown at top of page
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm) monolithic tempered glass
Fabrication Required: Stud will fit between panels with a 7/16" (11 mm) gap, or glass may be notched around the screw stud for a tighter fit
Includes: Mounting screws and one set of clear gaskets
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Order SKU GCB180CH now to complete your frameless shower hardware package.
