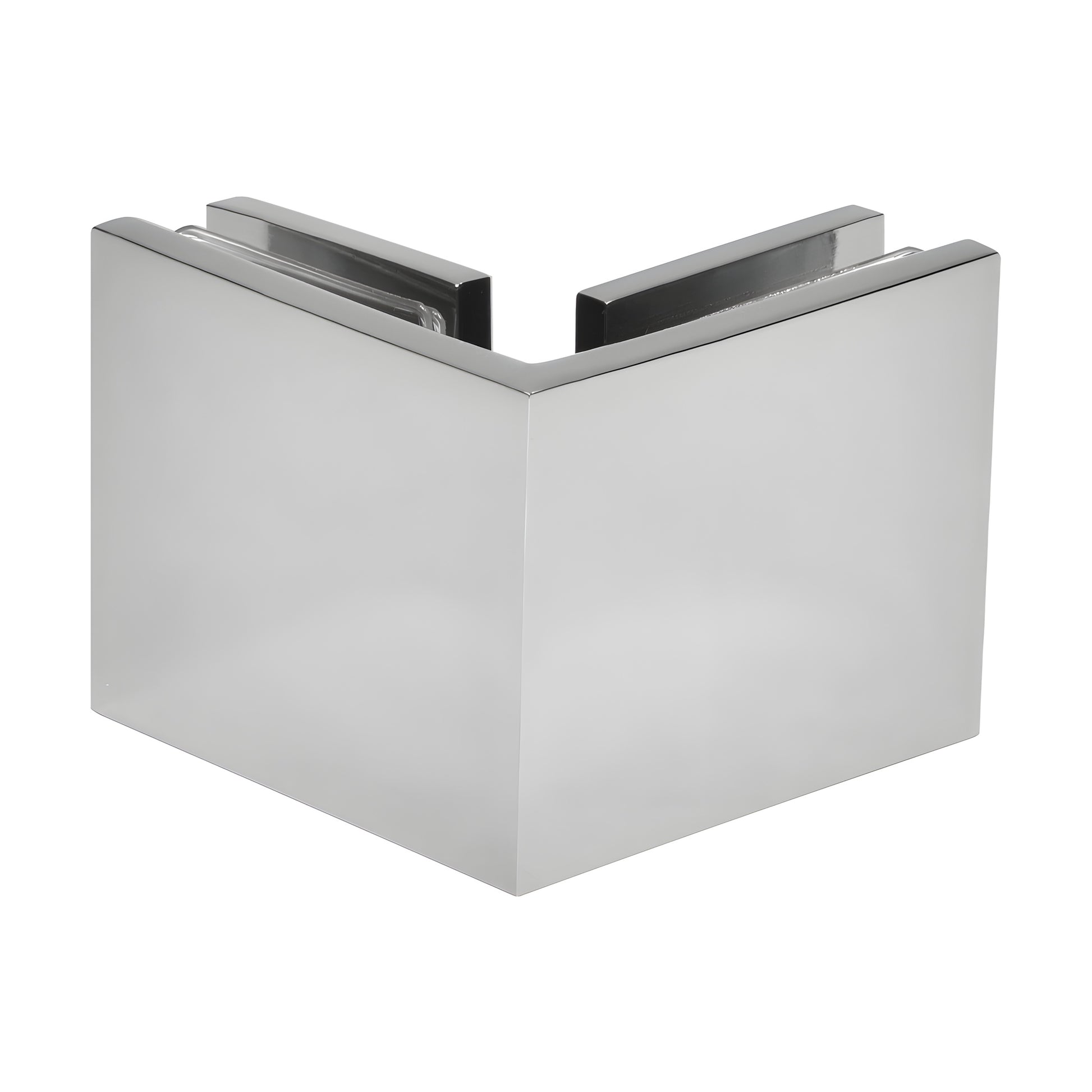

CRL Polished Chrome Square 90° Glass-to-Glass Clamp for Showers

CRL Polished Chrome Square 90° Glass-to-Glass Clamp for Showers

$54.17 CAD
$54.17 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGC90CH
Shipping Weight: 1.06 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

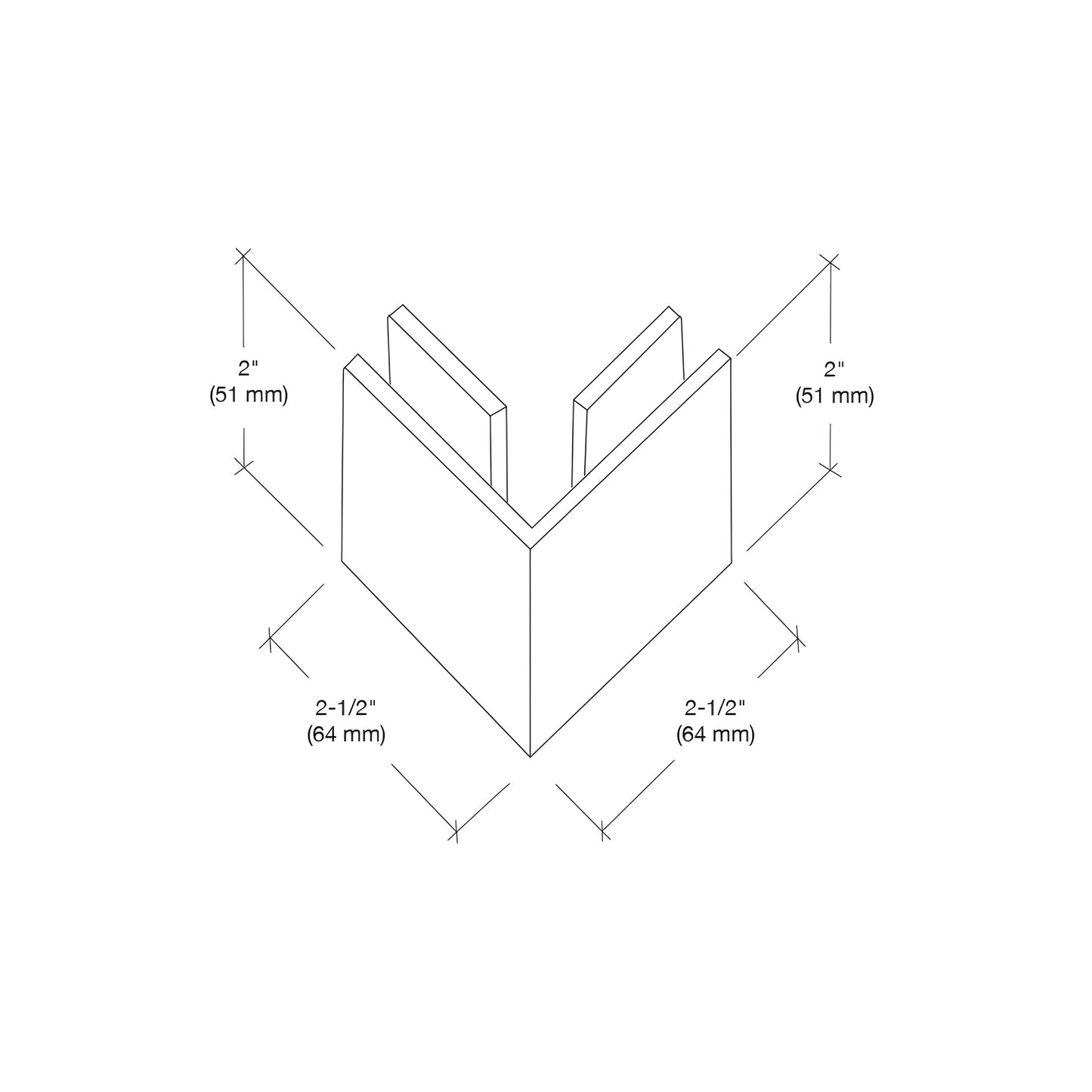

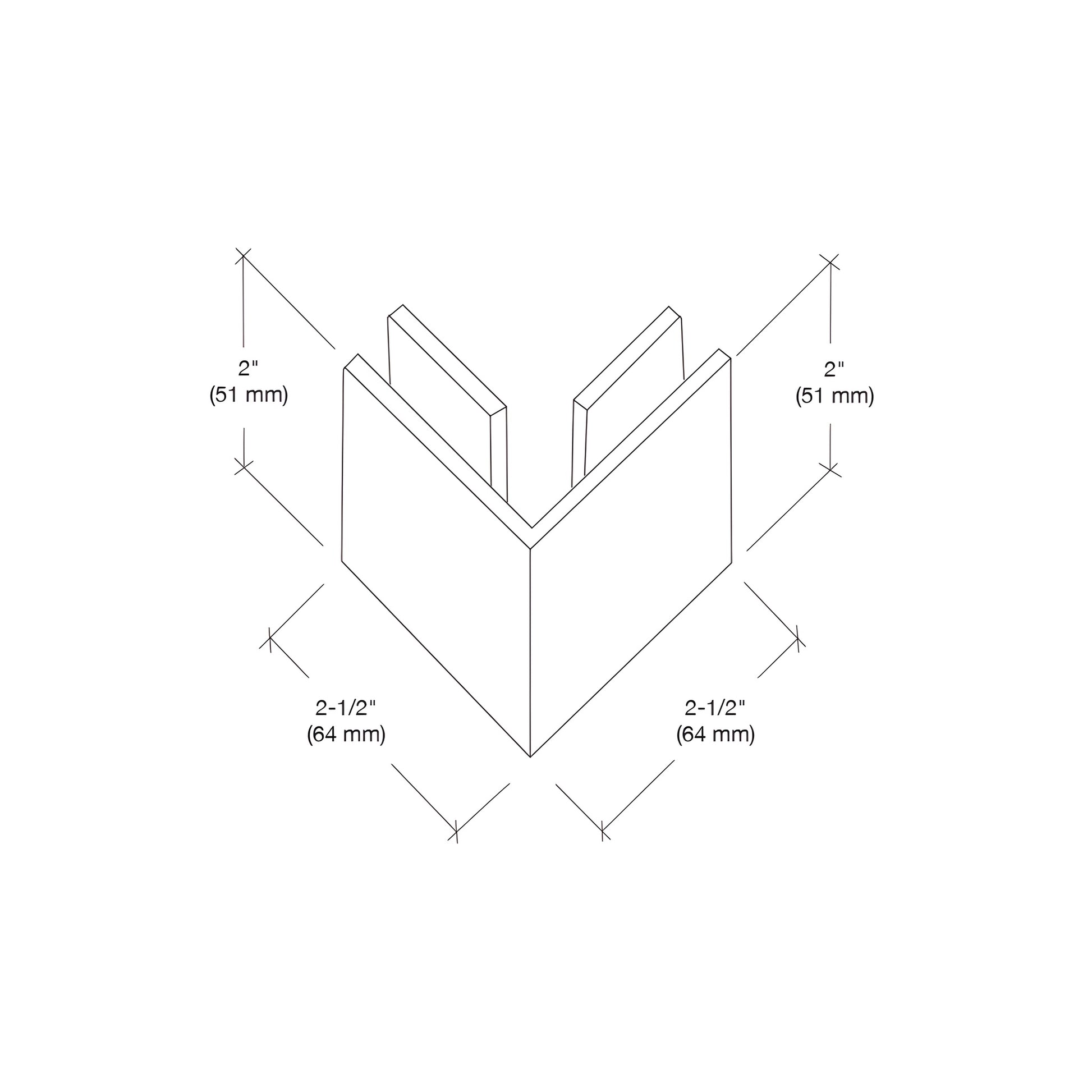

Height
2 in. (51 mm)
Leg Width
2-1/2 in. (64 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Secures fixed glass panels in frameless shower enclosures
  • Solid brass construction for corrosion resistance
  • Creates an 'all-glass' appearance as an alternative to U-channel
  • Glass fabrication required to accommodate clamps
  • Use with monolithic tempered glass

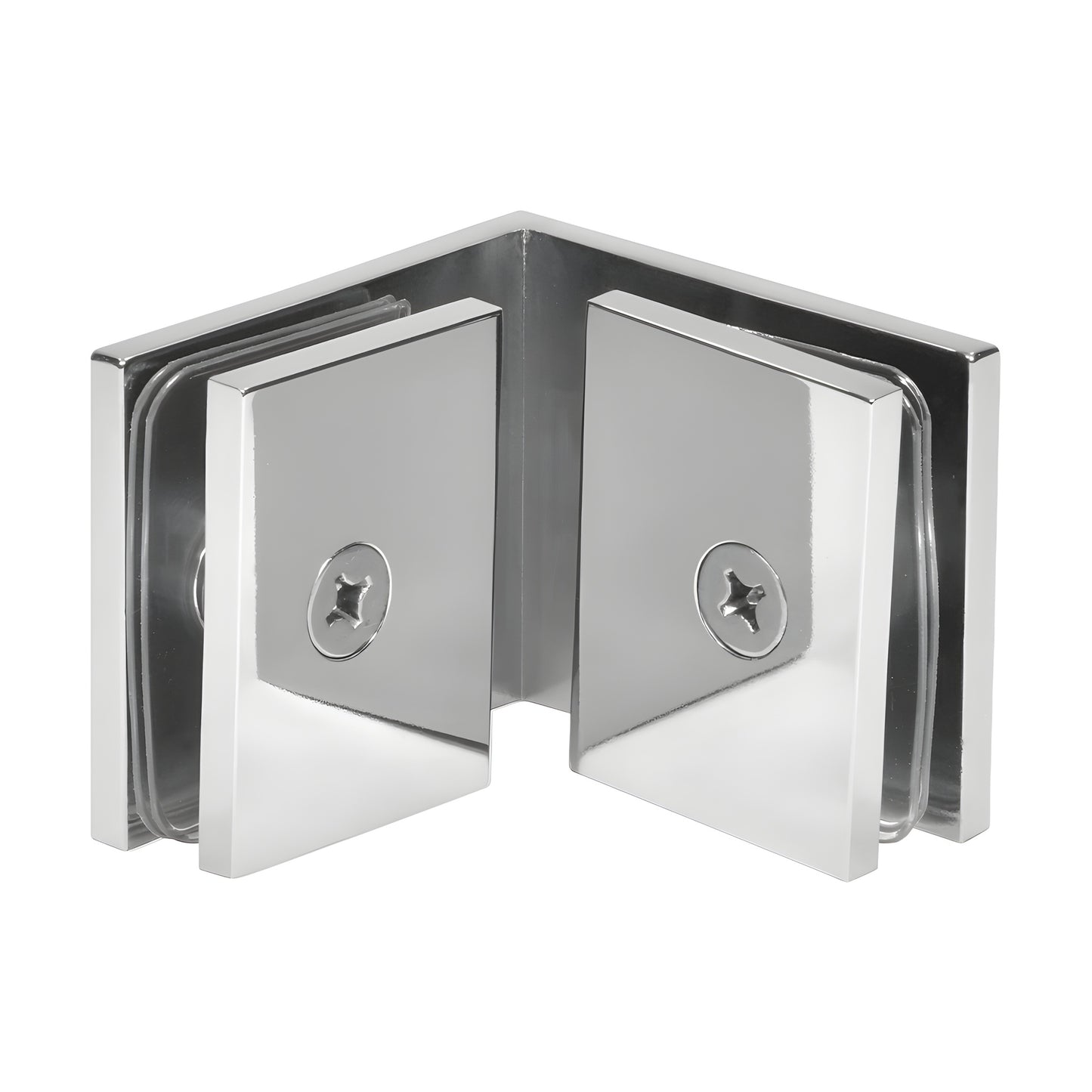

CRL Square 90 Degree Glass-to-Glass Clamps (SKU: SGC90CH) have sharp squared-off corners and a closed back to securely connect two fixed glass panels at a 90° corner. Panels may be overlapped or mitered to suit your frameless shower design. Drawings and templates for all clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Most shipping weights are approximate. If you need exact weight or verified shipping costs before placing your order, contact CRL Customer Service. Product images are representative; actual color may vary by monitor.

Order the SGC90CH brass 90-degree glass-to-glass clamp today to achieve a sleek, frameless shower corner — contact us for templates or fabrication guidance.

Specifications

Templates
BGC90 SGC90 Template
