CRL Brushed Bronze Square 90° Glass-to-Glass Clamp for Shower Door

• For 5/16" to 1/2" (8 to 12 mm) Glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid Brass
• A sleek alternative to traditional U-channel that helps achieve an all-glass look
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

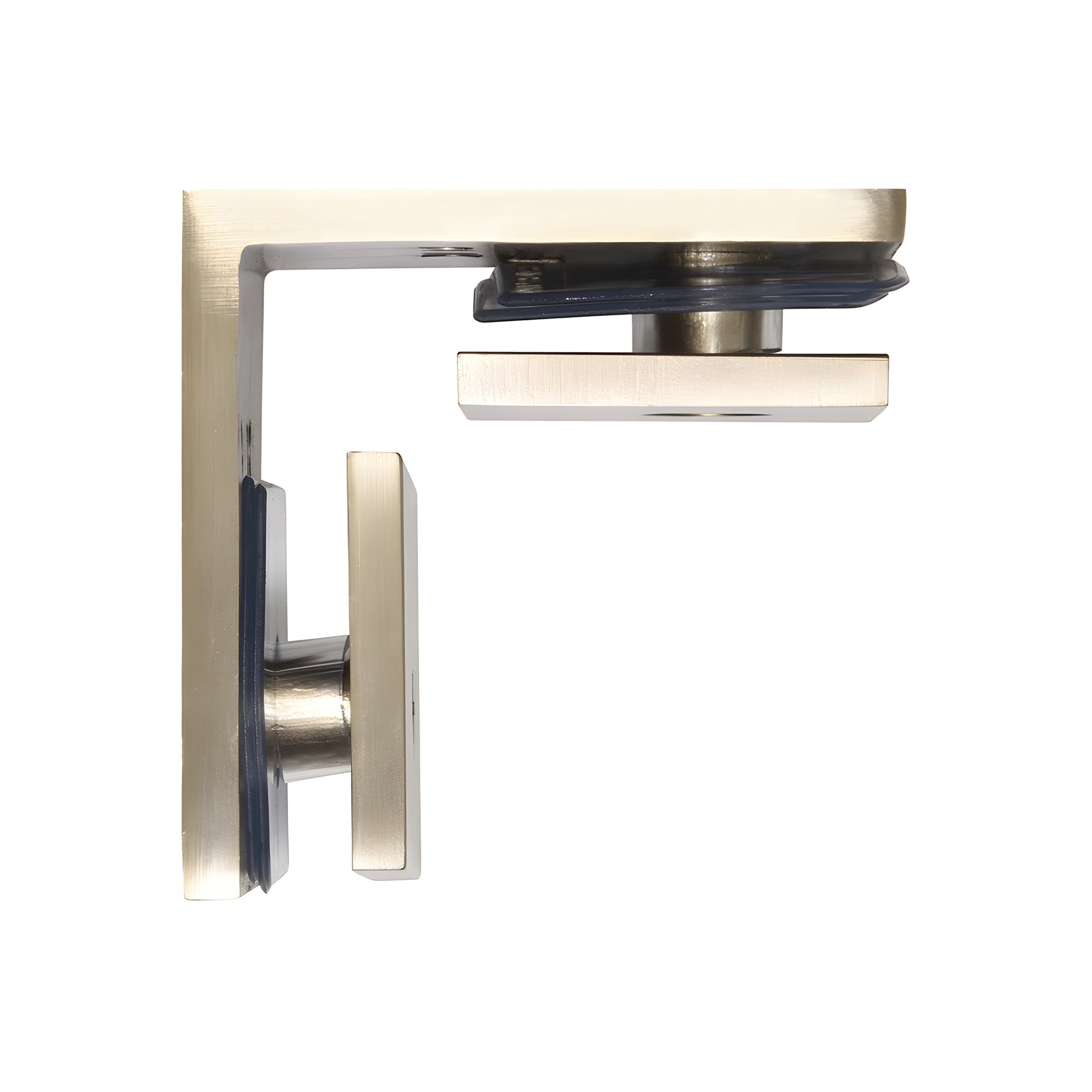

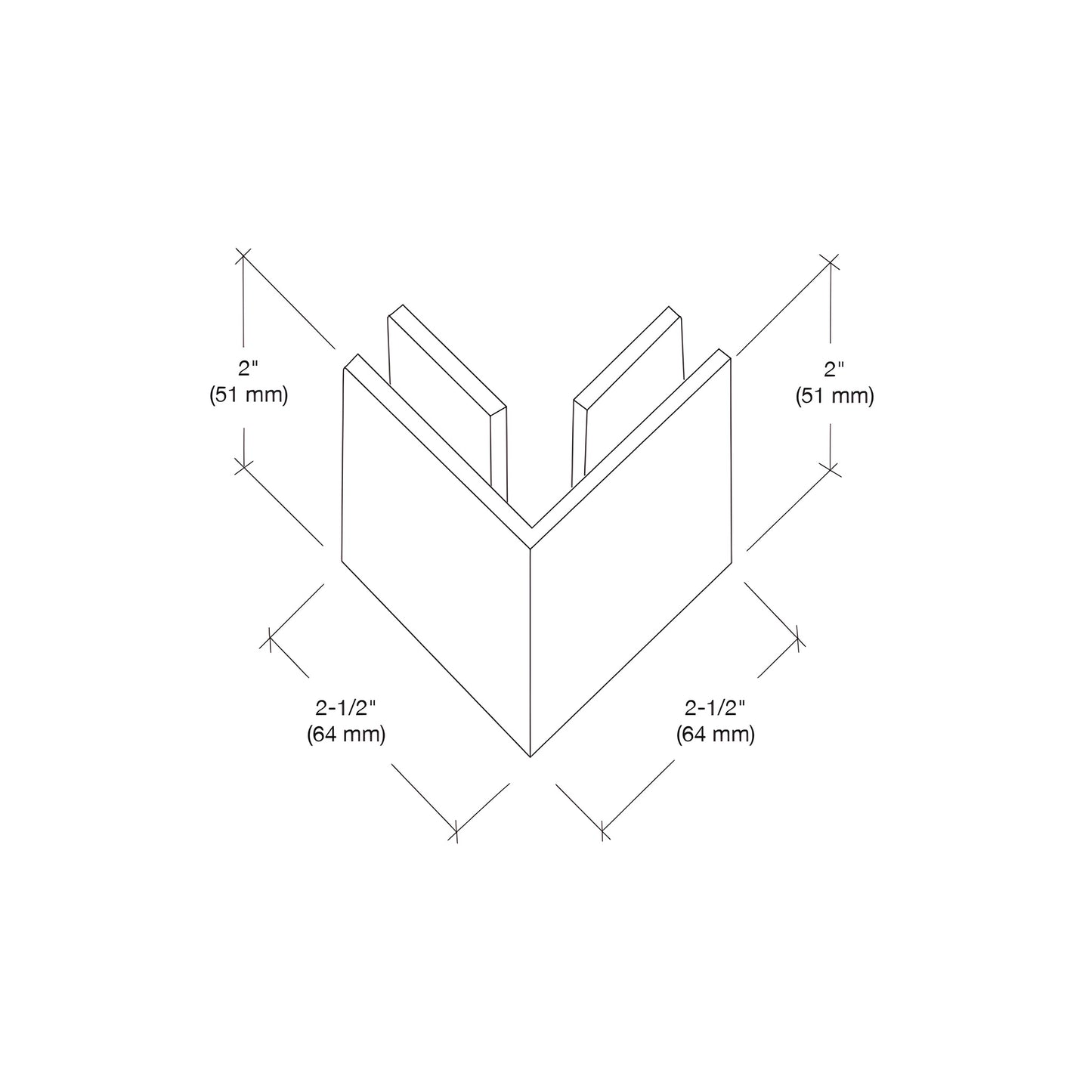

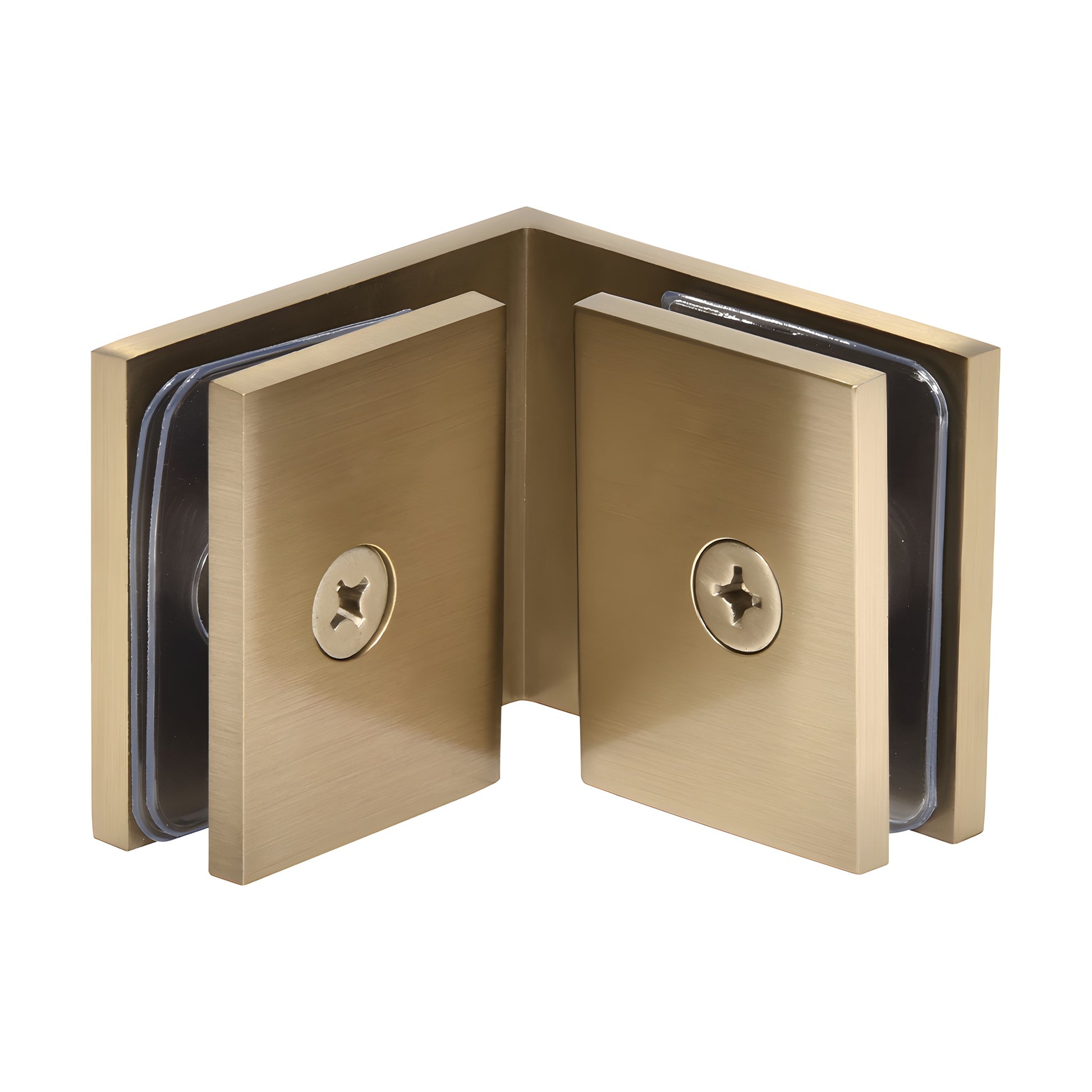

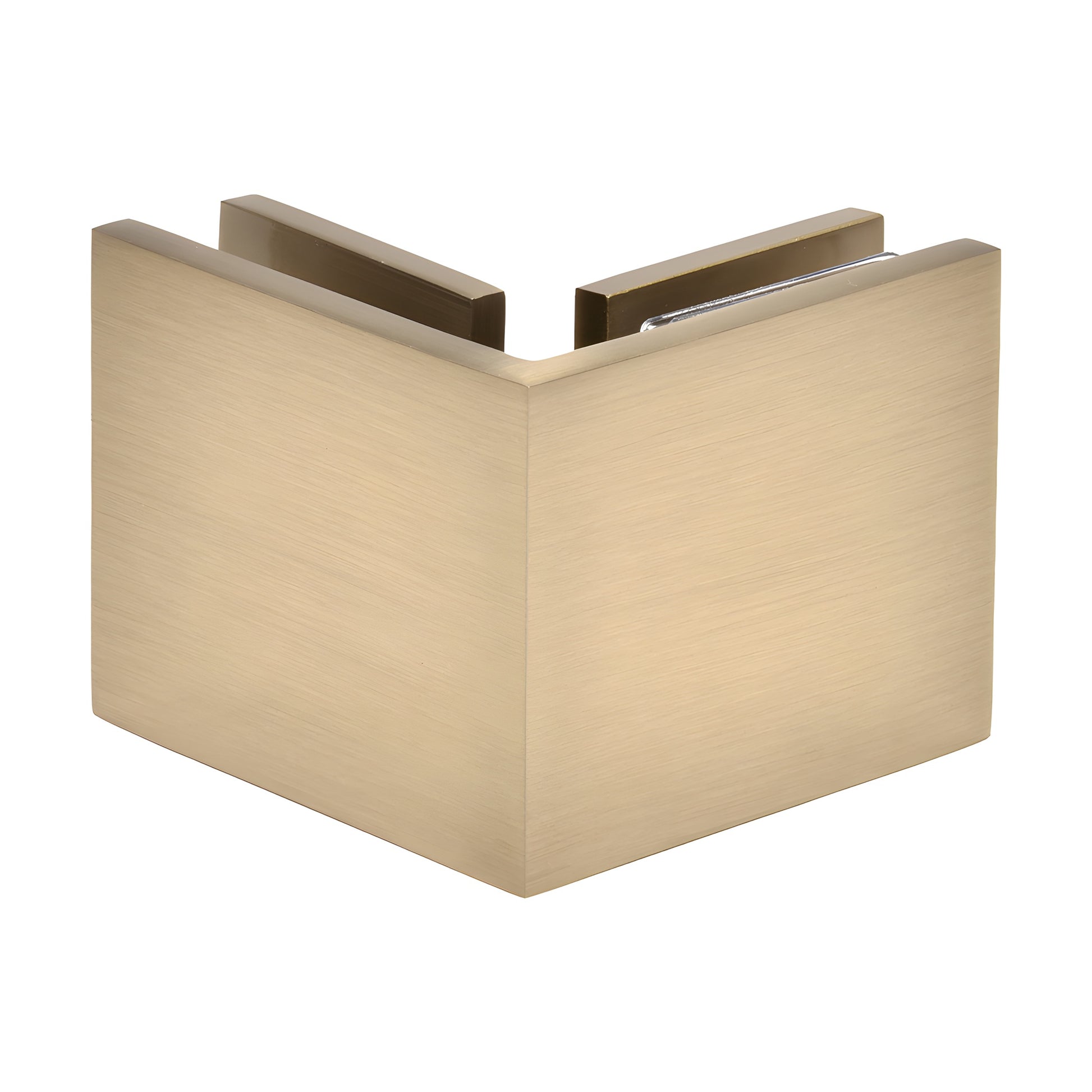

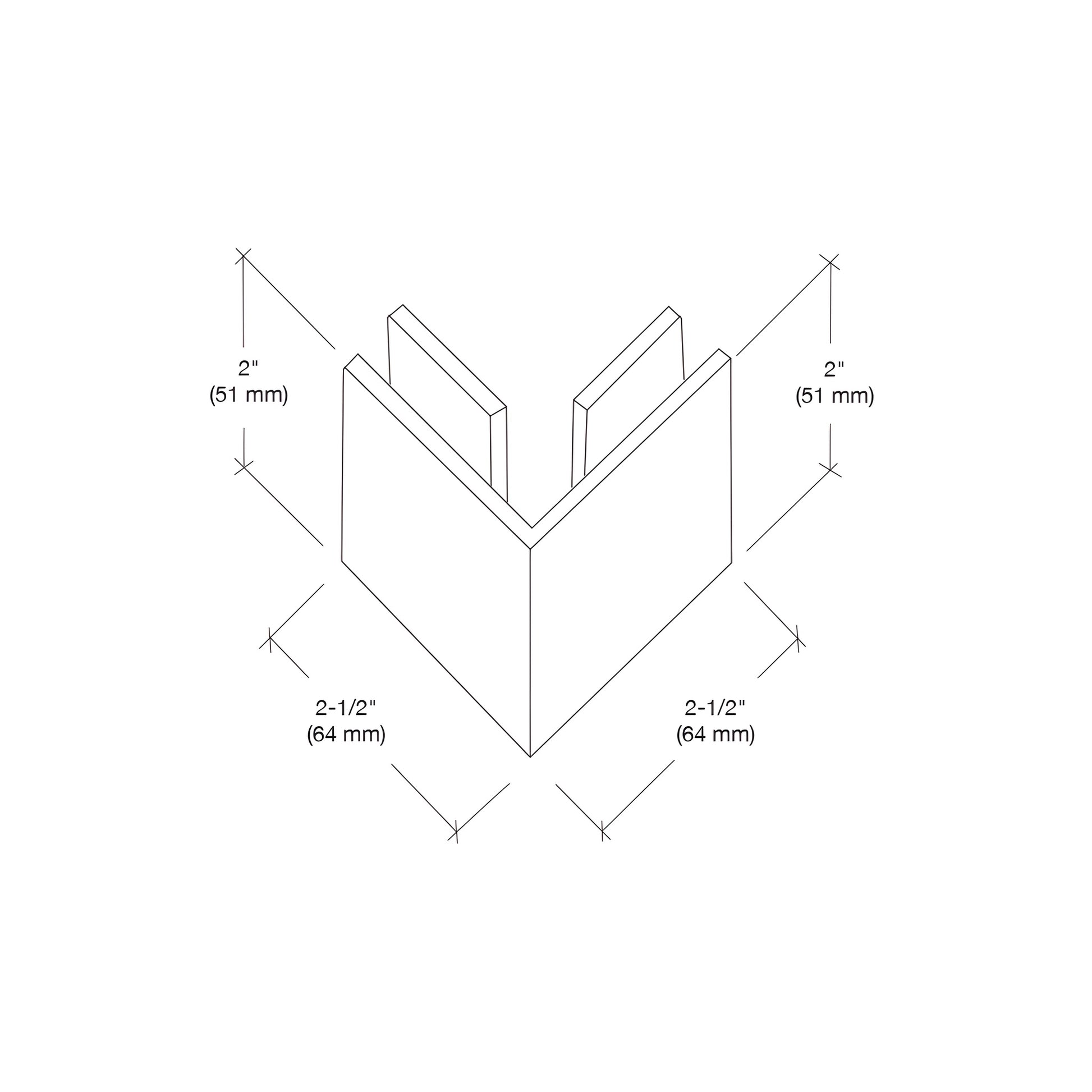

CRL Square 90 Degree Glass-to-Glass Clamps — SKU: SGC90BBRZ have sharp squared-off corners and a closed back. Designed to connect two fixed glass panels meeting at 90 degrees, panels may be overlapped or mitered at the corner. Drawings and templates for all clamps are available for fabricators and installers.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm) — please follow fabrication specs when fitting to glass
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Ideal for frameless shower designers and glass fabricators seeking a solid brass 90° glass-to-glass corner clamp that supports tempered glass panels. Order SGC90BBRZ today to achieve a clean, all-glass appearance.
