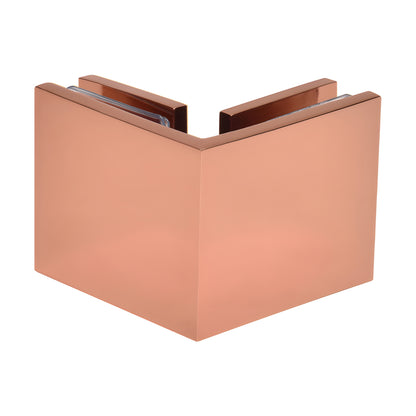

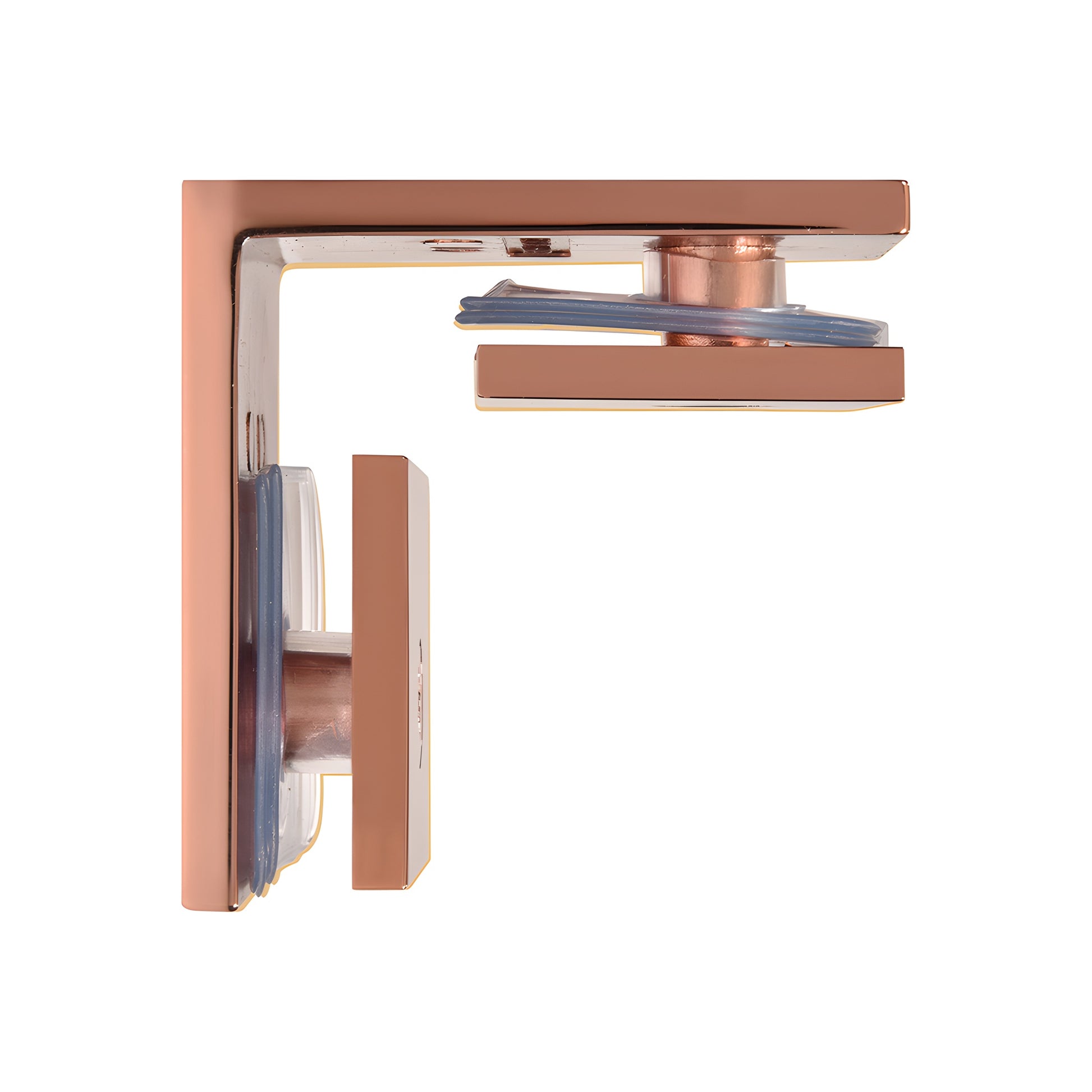

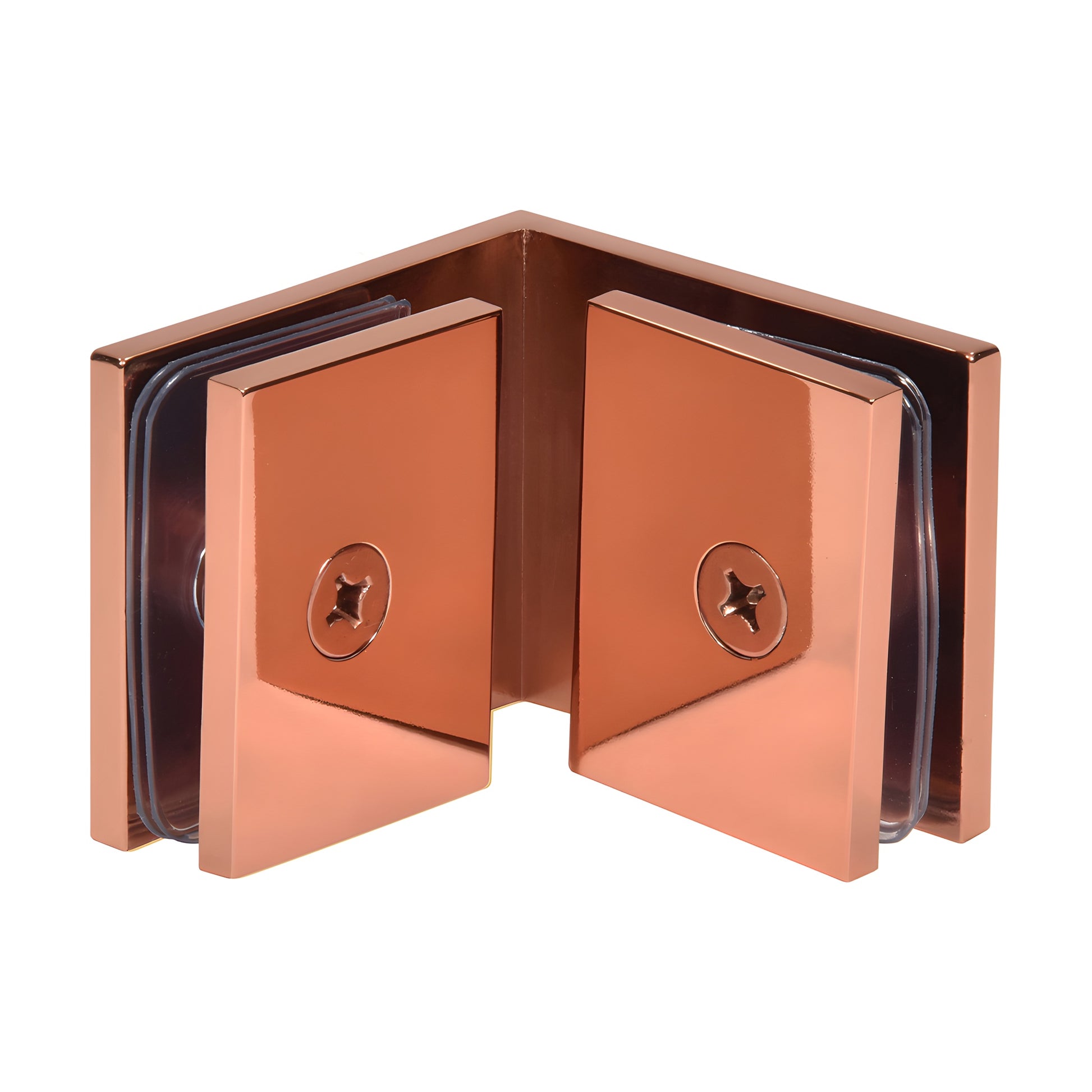

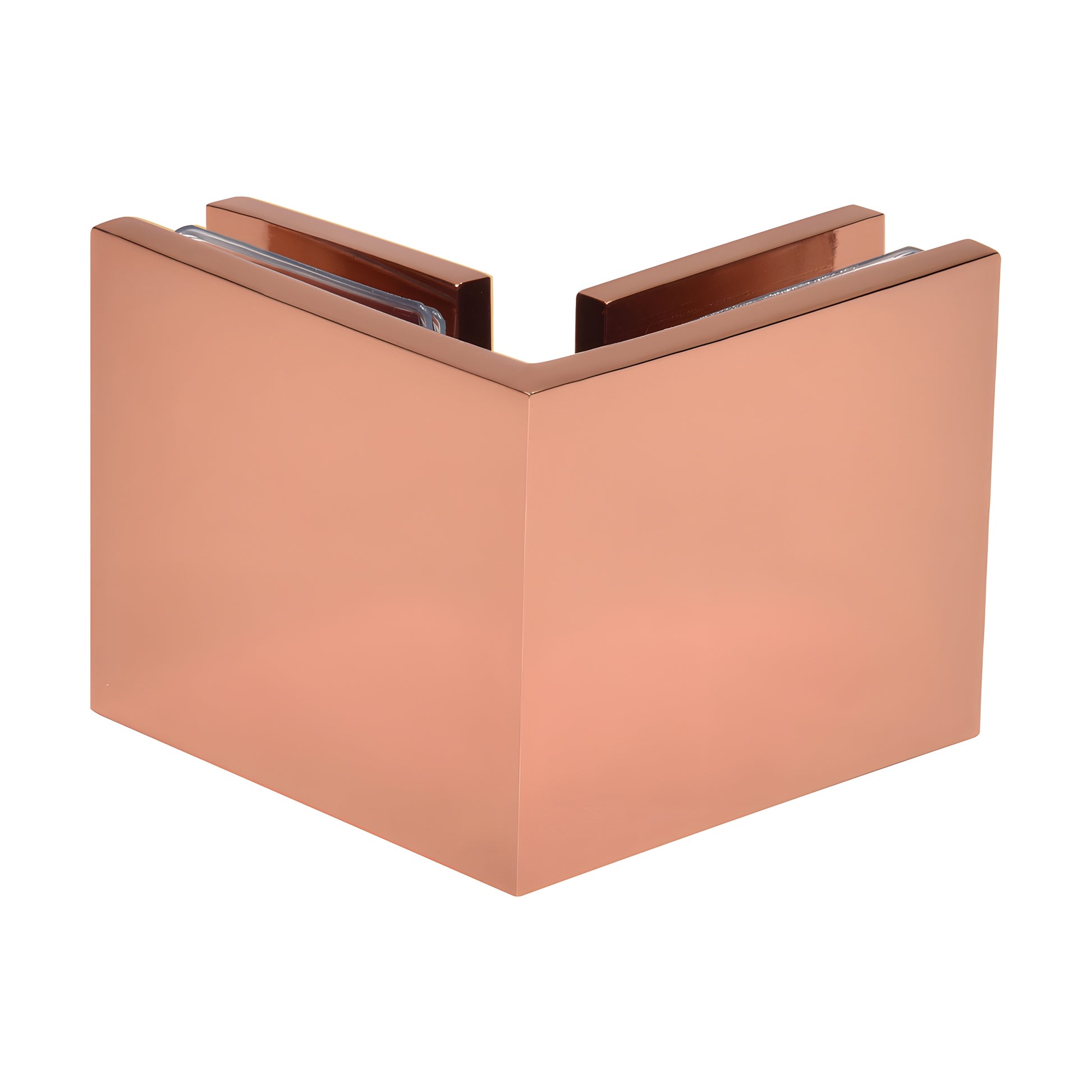

CRL Rose Gold Square 90° Glass-to-Glass Clamp for Shower Doors

• For 3/8" to 1/2" (10 to 12 mm) glass
• Secures fixed panels for frameless shower enclosures
• Solid brass construction
• Creates an "all-glass" appearance as an alternative to traditional U-channel
• Glass fabrication required — use monolithic tempered glass

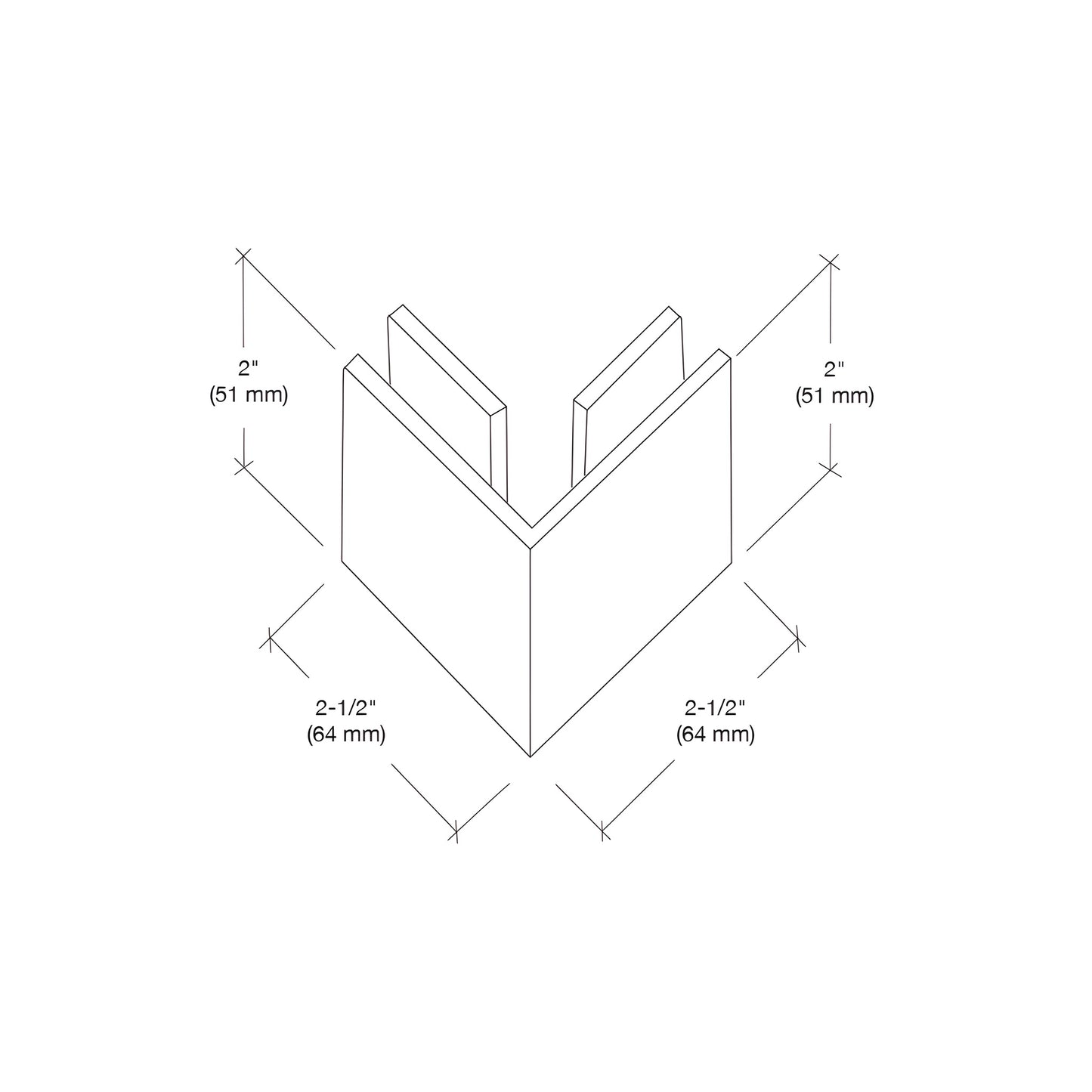

CRL Square 90 Degree Glass-to-Glass Clamps feature sharp squared corners and a closed back to connect two fixed glass panels at a 90° corner. Panels may be overlapped or mitered. Drawings and templates for all clamps are available. SKU: SGC90RG

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

For a clean, modern frameless shower finish using solid brass hardware, choose the CRL SGC90RG 90° glass-to-glass clamp. Contact CRL Customer Service to order or request templates and drawings.
