CRL

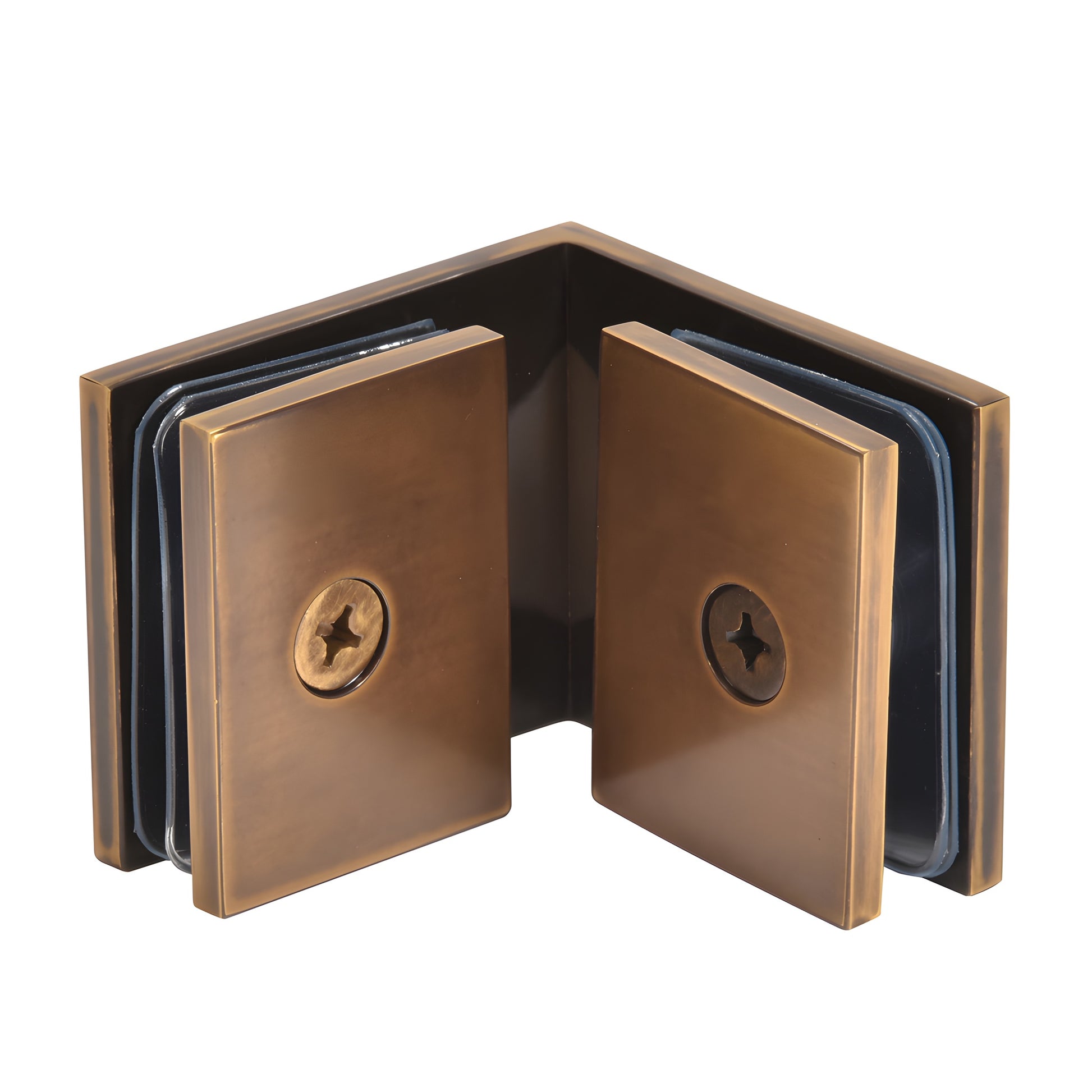

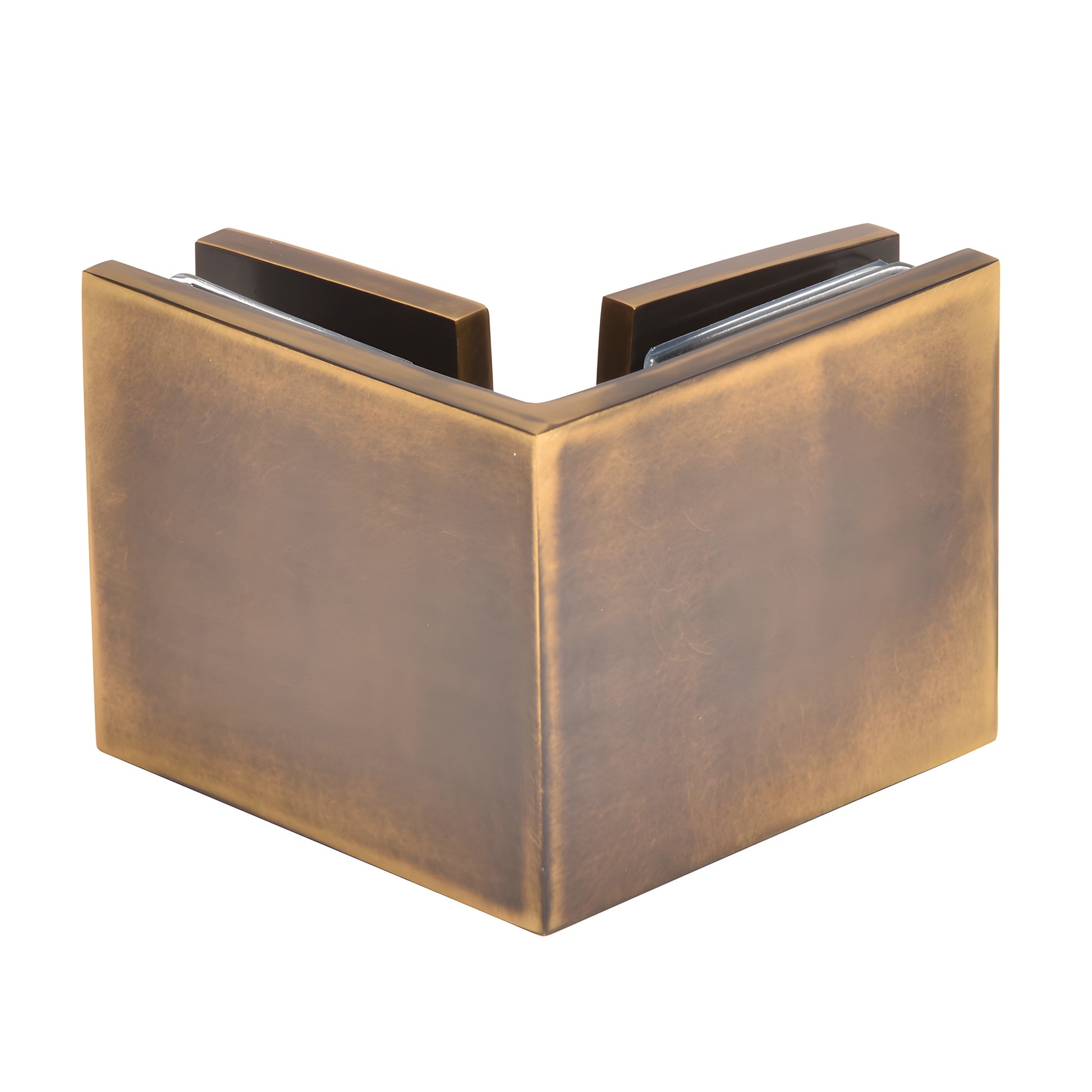

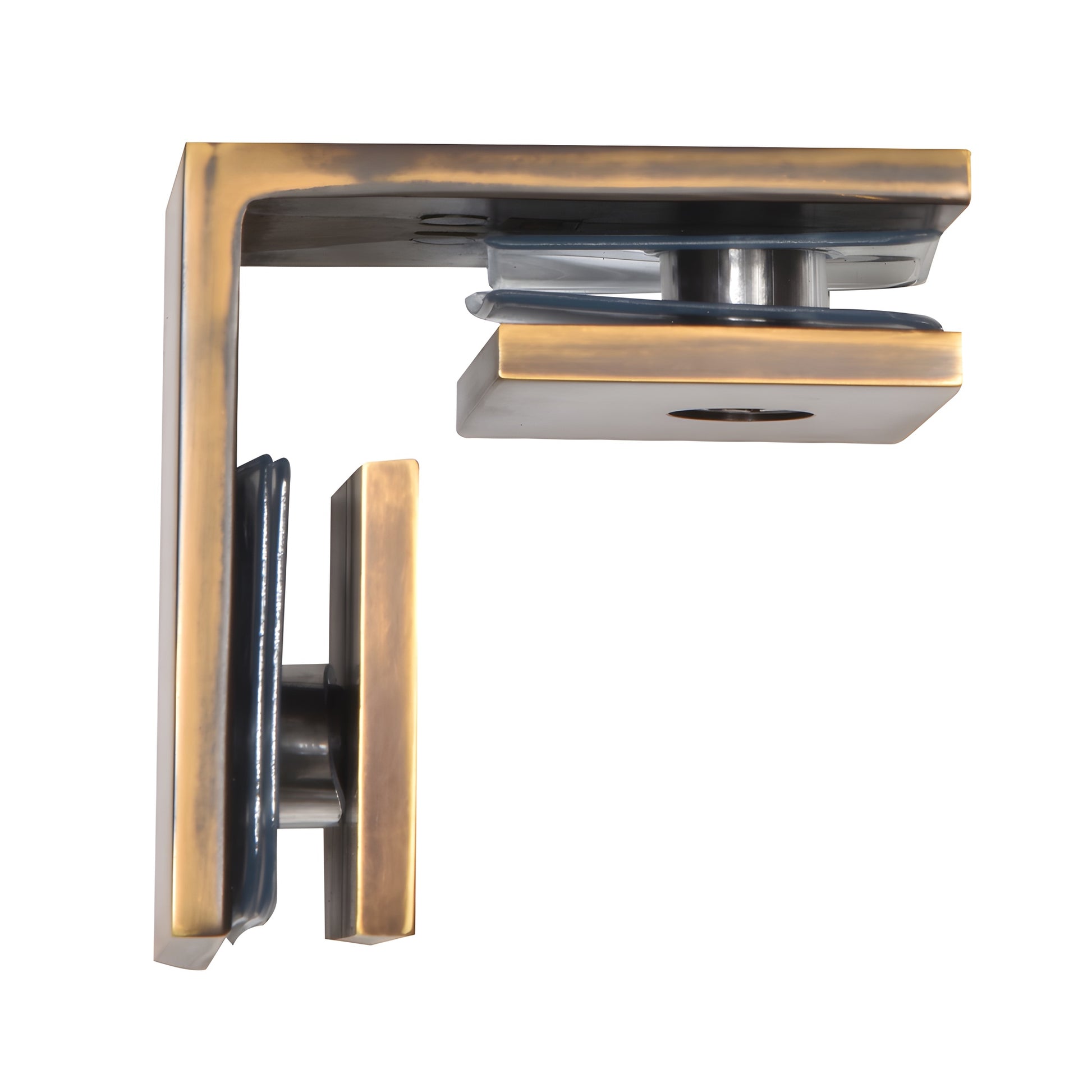

CRL Vintage Brass Square 90° Glass Clamp for Frameless Shower
CRL Vintage Brass Square 90° Glass Clamp for Frameless Shower
Regular price
$82.33 CAD
Regular price
Sale price
$82.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC90VBR
Shipping Weight: 1.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Vintage Brass
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

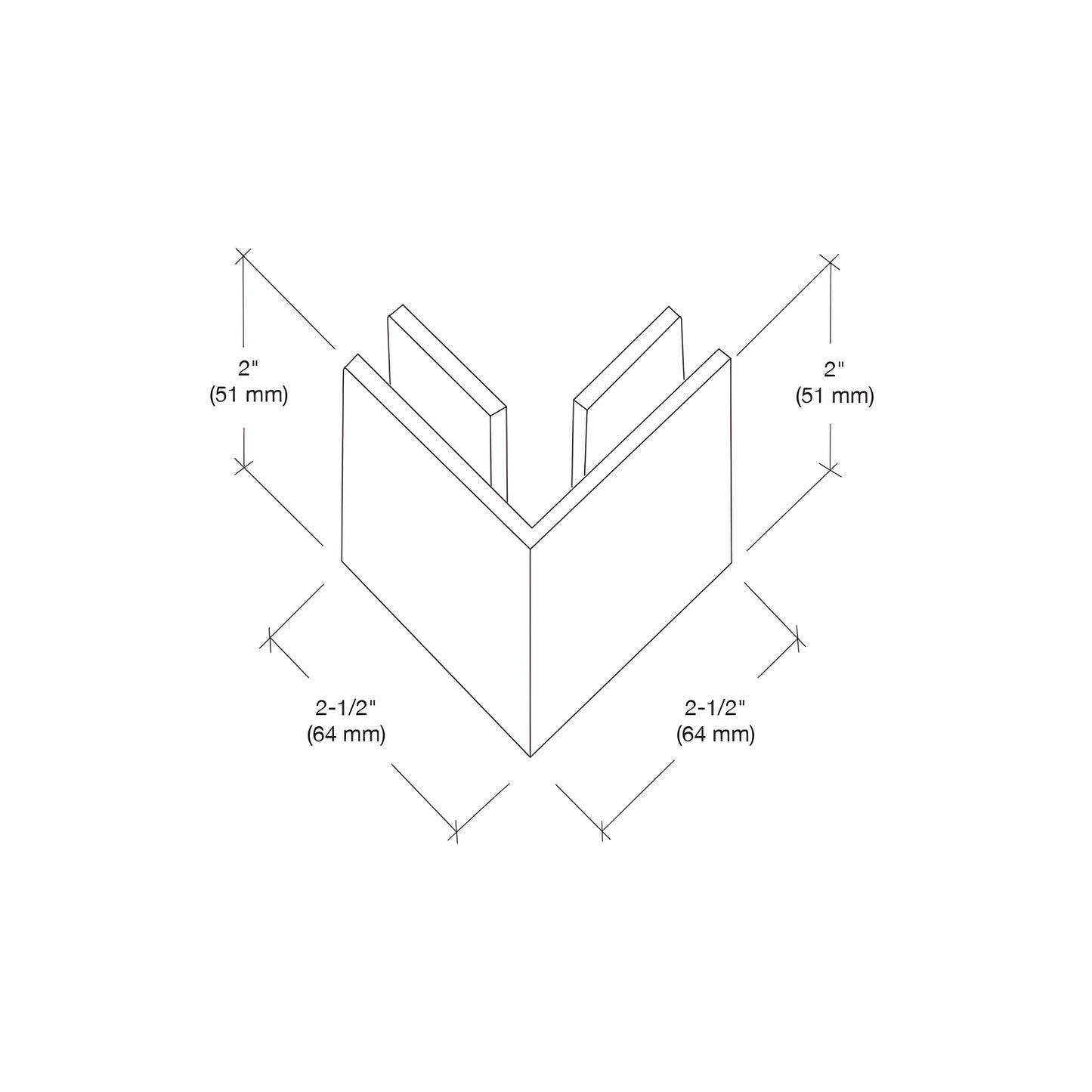

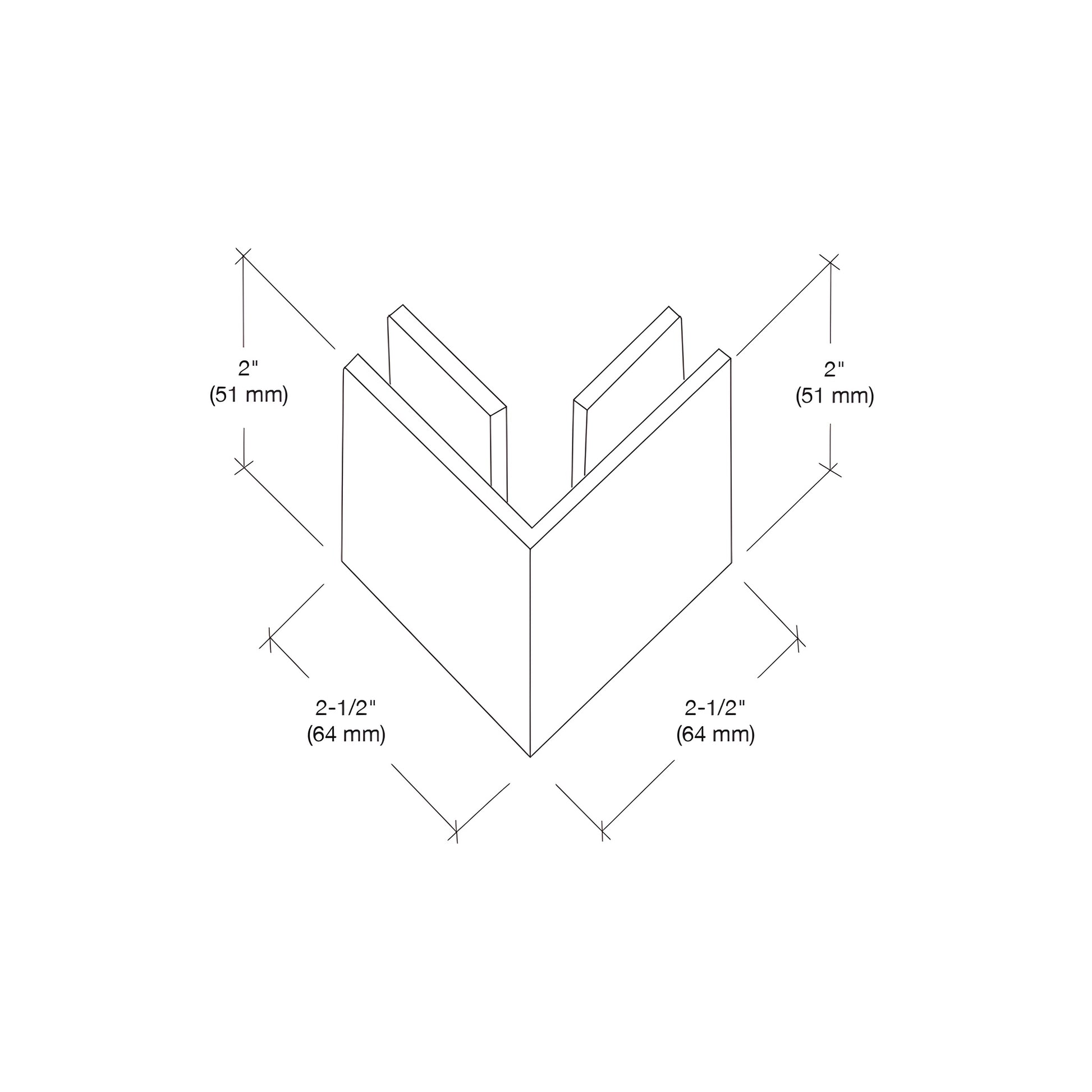

Height
2 in. (51 mm)
Leg Width
2-1/2 in. (64 mm)
Material
Brass
Mounting Type
Glass To Glass
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Secures fixed panels in frameless shower enclosures
- Solid brass construction for durability and corrosion resistance
- Creates an "all-glass" appearance versus traditional U-channel
- Glass fabrication required to accommodate clamps
- Use with monolithic tempered glass
CRL Square 90 Degree Glass-to-Glass Clamps (SKU: SGC90VBR) feature sharp squared corners and a closed back to neatly join two fixed glass panels at a 90° corner. Panels can be overlapped or mitered. Drawings and templates for all clamps are available to assist glass shops and installers.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Specifications
Templates
