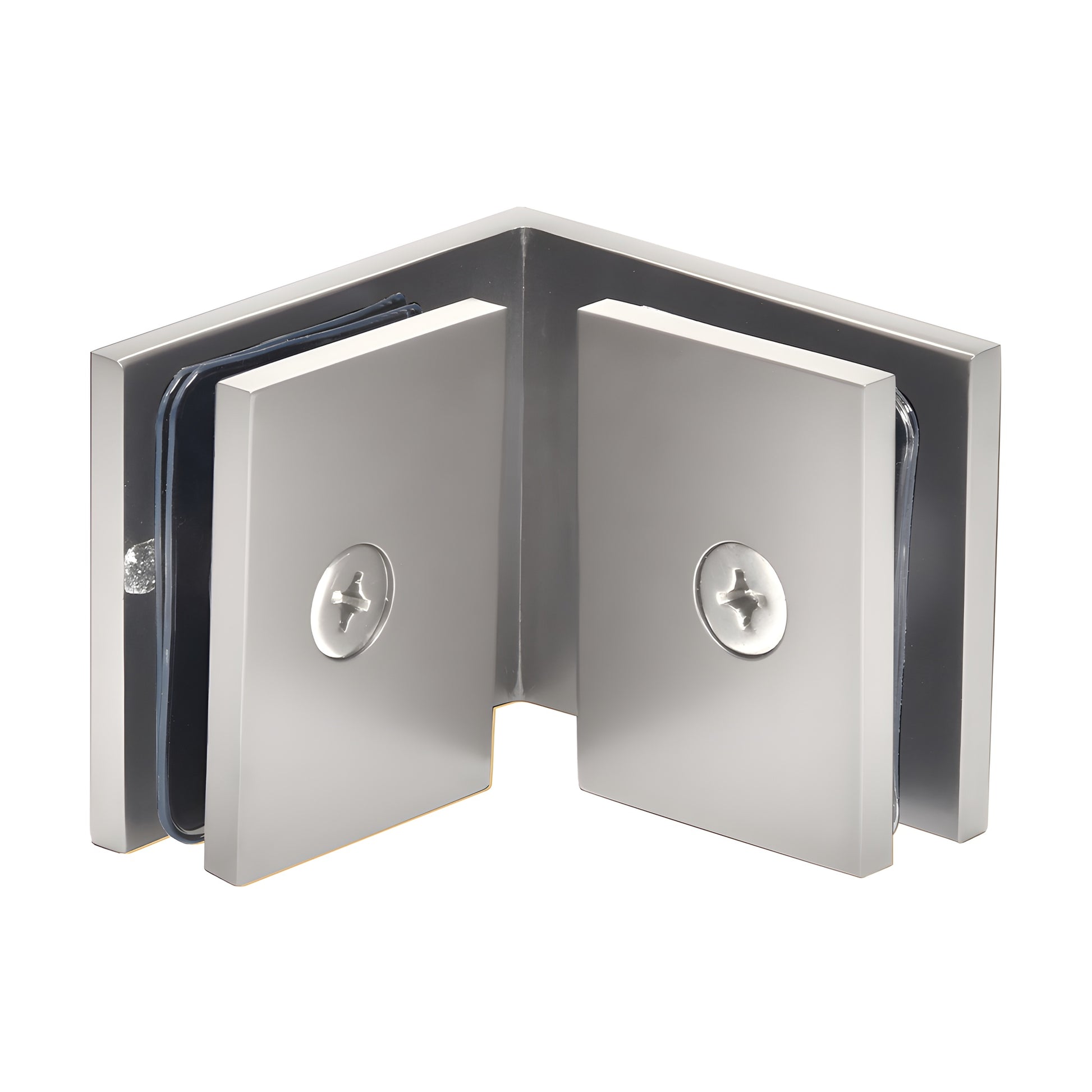

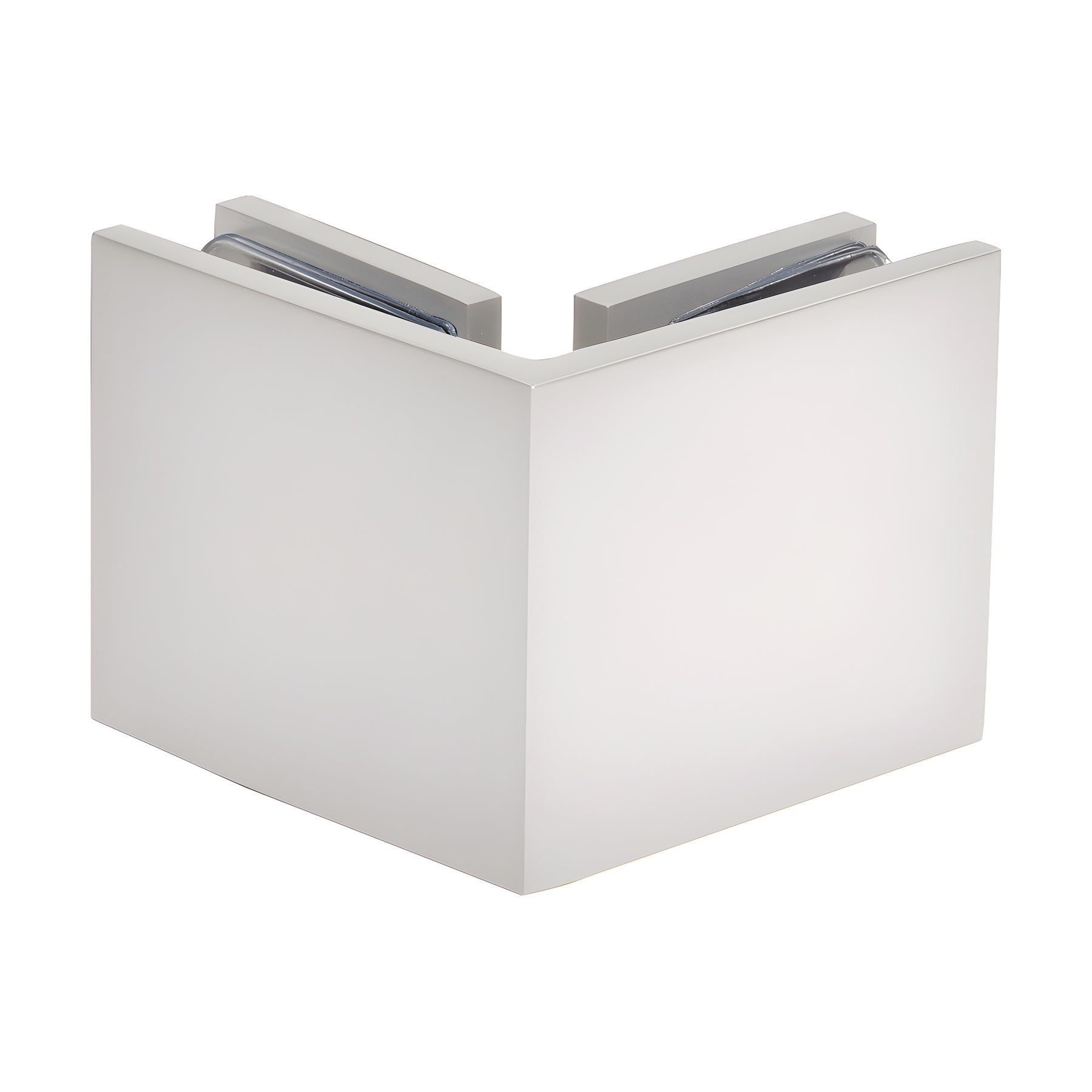

CRL Satin Nickel Square 90 Degree Glass-to-Glass Clamp
Item # SGC90SN
$102.49
CAD
Overview
| SKU | SGC90SN |
|---|---|
| Sold As | 1 Each |
| Design Style | Squared |
| Enclosure Type | Bathtub, Corner, Niche |
| Finish/Color | Satin Nickel |
| Glass To Glass Angle | 90 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

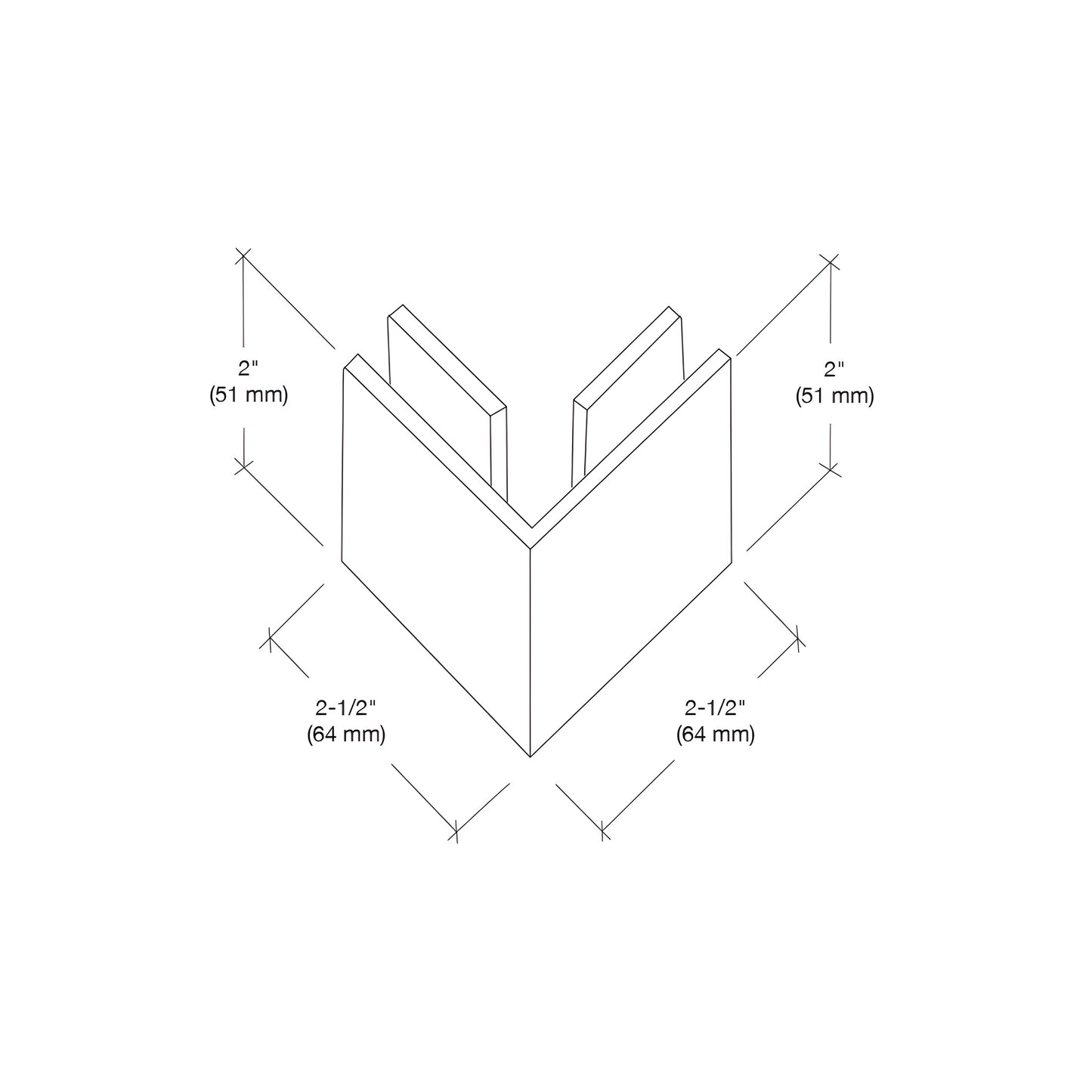

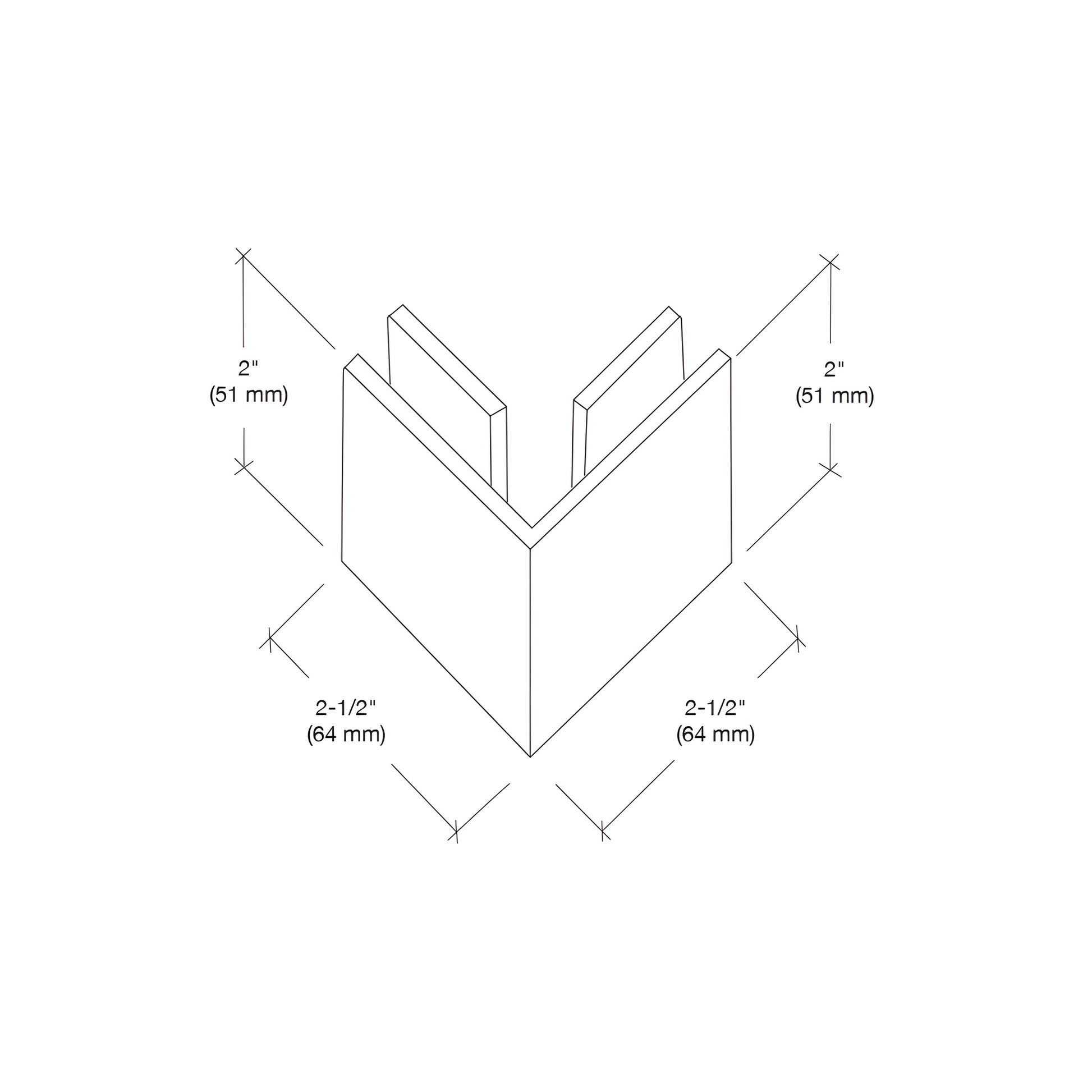

| Height | 2 in. (51 mm) |
| Leg Width | 2-1/2 in. (64 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Description
- For 5/16" to 1/2" (8 to 12 mm) Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass

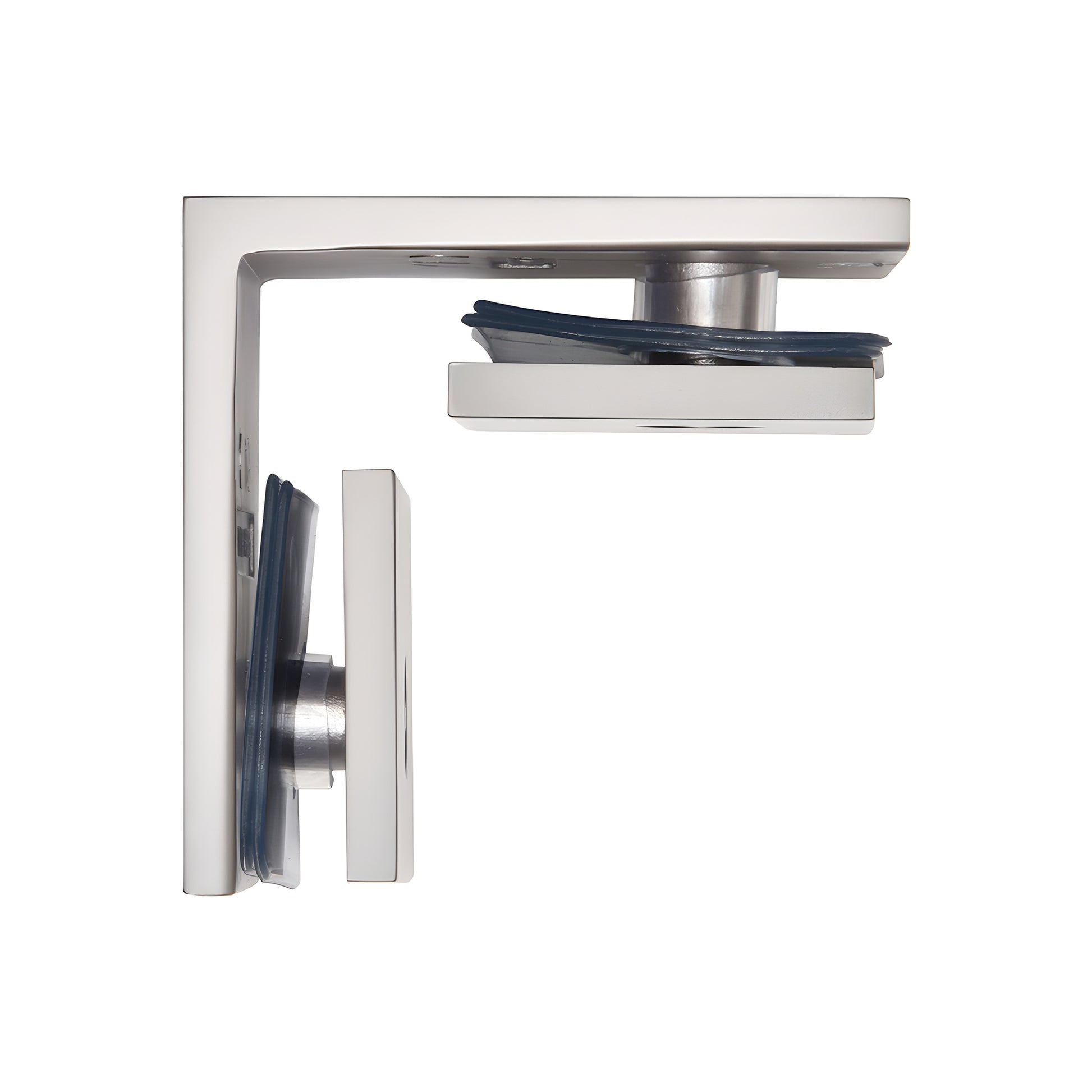

CRL Square 90 Degree Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
