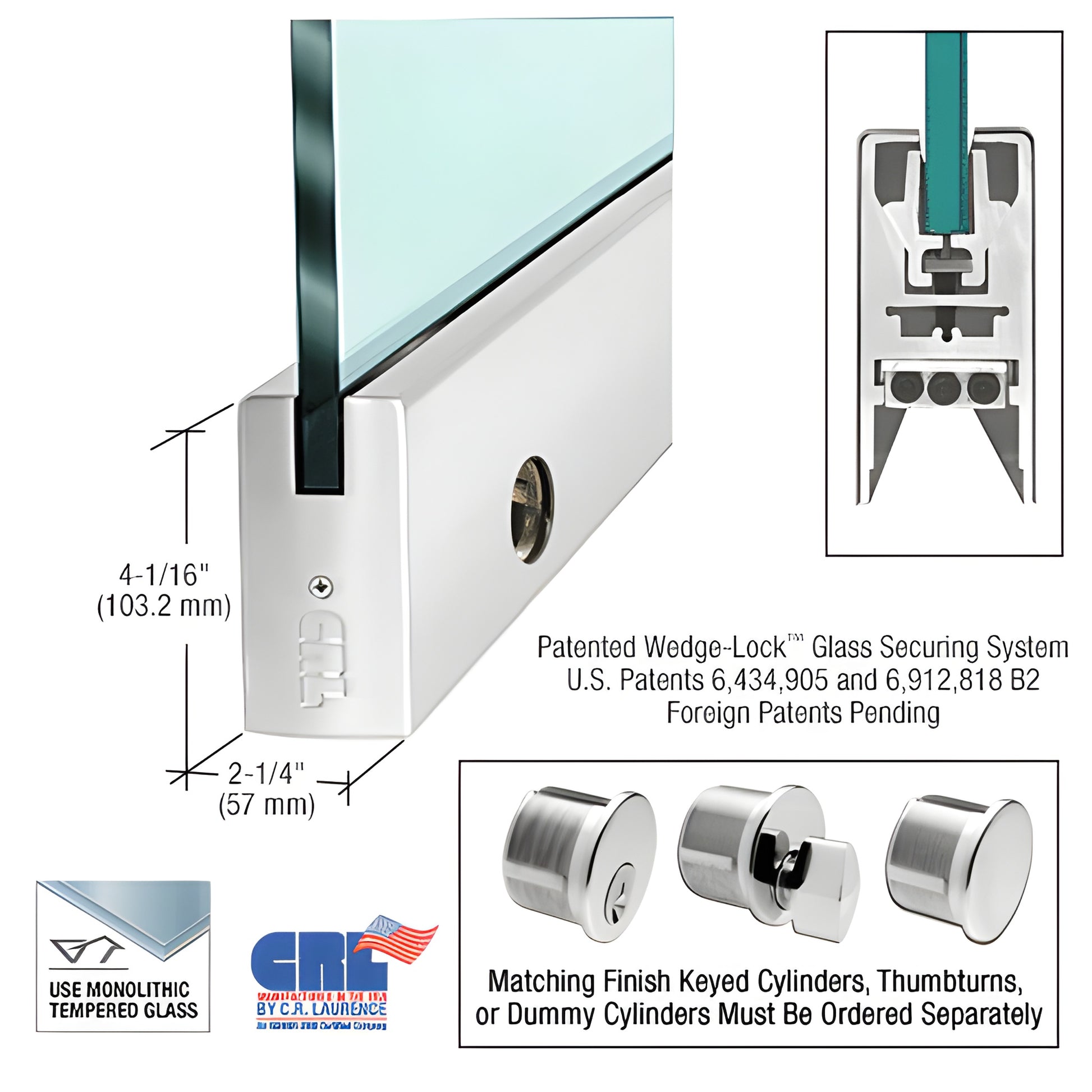

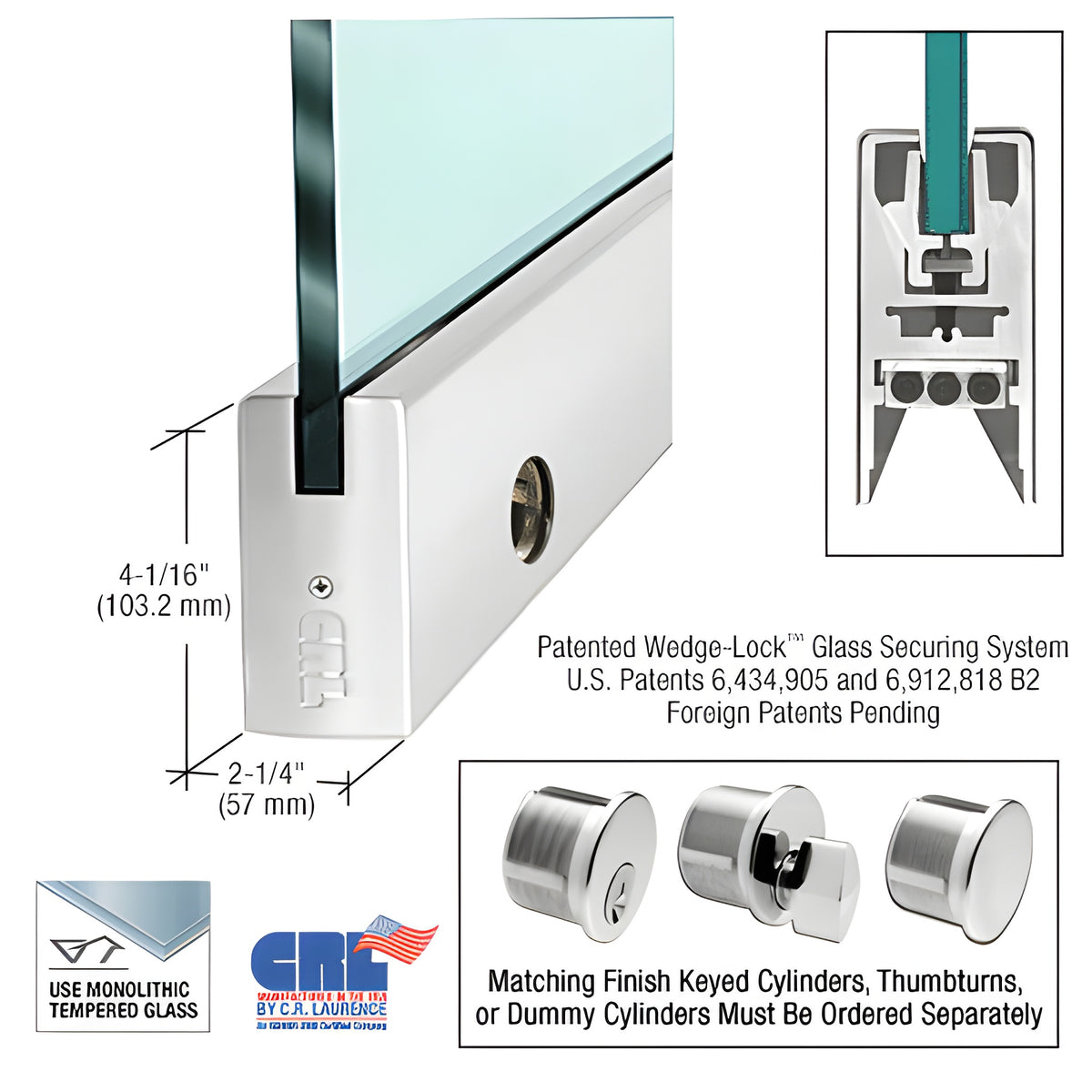

CRL Polished Stainless Steel 3/4 in Glass Door Rail w/ Lock, 35-3/4 in

• 35-3/4" (908 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

SKU: DR4SPS34SL

Our CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Securing System — a high-strength glass door rail engineered to secure monolithic tempered glass with fast, reliable installation. The design uses two glass-retaining aluminum extrusions clamped by a flat stainless steel bar and socket head cap bolts that drive the angled extrusions into the rail’s wedge groove. This wedge action plus the door retaining gasket generates exceptional clamping force (over 900 lbs. in the 9" corner rail), delivering durable, long-lasting glass retention for full-length 35-3/4" (908 mm) rails.

NOTE: Actual product height: 4-1/16" (103 mm)

Key benefits and differentiators:

• Fastest installation among door rail systems — experienced installers can prepare a door in under ten minutes
• Completely fabricated, ready-to-install rails with end caps installed
• Adjustable Door Alignment System (standard top & bottom) allows 1/8" (3.2 mm) in/out adjustment without removing the door
• Low-profile adjustable slide supports pivots set off American Standard setback for out-of-square openings
• Rigid single-component housing resists shifting or losing adjustment over time
• Internal components stay in place during installation; glass securing pads built for longevity in extreme environments
• Built-in jamb alignment block; arms and pivots ordered separately

After installation, remove the end cap to access three socket head cap bolts: center bolt secures the adjustable slide; outer bolts provide the 1/8" (3.2 mm) in/out adjustment.

CRL Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL
